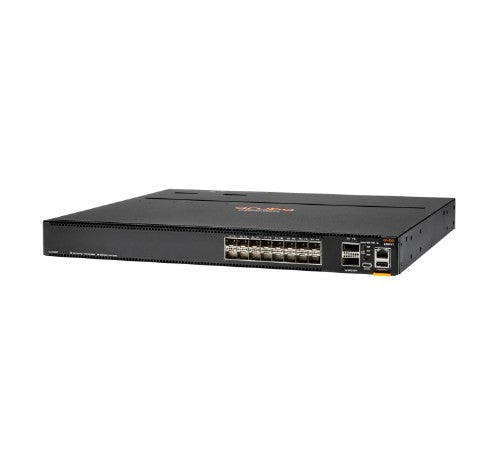

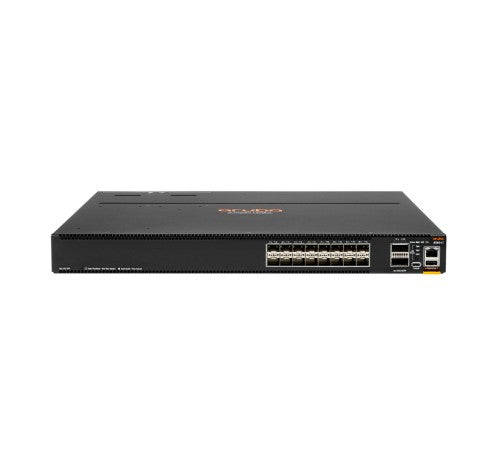

HPE Aruba Networking CX 8360‑16Y2C v2 16p 25G SFP/SFP+/SFP28 2p 100G QSFP+/28 FB 3 Fans 2 AC Managed L3 1U
Description
Description
HPE Aruba Networking CX 8360‑16Y2C v2 16p 25G SFP/SFP+/SFP28 2p 100G QSFP+/28 FB 3 Fans 2 AC. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 212992 entries, Switching capacity: 1200 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 16 |
| QSFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | QSFP+, QSFP28, SFP, SFP+, SFP28 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000,10000,25000,40000,100000 Mbit/s |
| 10G support | Yes |
| IGMP snooping | Yes |
| IGMP entries | 7000 |
| Data transmission | |
| Throughput | 2678 Mpps |
| MAC address table | 212992 entries |
| Switching capacity | 1200 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 4094 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | SNMPv2, SNMPv3 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| Access Control List (ACL) ingress | 65536 |
| IGMP entries | 7000 |
| Access Control List (ACL) egress | 8192 |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | BGP4, MPLS, OSPF, OSPFv3, RIP-2, RIPng |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Ventilation system | Front-to-back airflow |
| Airflow direction | Front-to-back airflow |
| Number of fans | 3 fan(s) |
| Redundant fans support | Yes |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Built-in processor | Yes |
| Power | |
| Power consumption (max) | 325 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 1109 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 16" (406.4 mm) |
| Height | 1.73" (44 mm) |
| Weight | 17 lbs (7.71 kg) |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Optical fiber | |
| Fiber optic connector | QSFP+, QSFP28, SFP, SFP+, SFP28 |
| Technical details | |
| Form factor | 1U |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Other features | |
| Ethernet LAN data rates | 1000,10000,25000,40000,100000 Mbit/s |
