Plugable Technologies USBC-6950U USB graphics adapter 3840 x 2160 pixels Black

4K DisplayPort and HDMI Dual Monitor Adapter for USB 3.0 and USB-C, Compatible with Windows

Key Features

• DUAL 4K MONITORS—Video adapter is equipped with dual DisplayPort and HDMI ports for easy connection to two 4K monitors. Each output is capable of a unique, extended display at resolutions up to 3840x2160 @ 60Hz and lower resolutions such 1920x1080 (1080p)
• MIX AND MATCH—Add 2 monitors using either DisplayPort or HDMI allowing for a versatile 1 in 2 out solution to fit your equipment. Easily adapt USB 3.0 systems with included USB C to USB 3.0 adapter, fulfilling your USB C to HDMI adapter needs and more
• WINDOWS AND MAC—This USB-C adapter hub is easily installed and compatible with most Windows 11, 10, 8.x, and 7 and Mac 10.14+ systems, with additional requirements for 4K output. Linux and Chrome OS are not supported
• IMPORTANT NOTES—Great for web and productivity software. Doesn't support playback of HDCP-protected content (Hulu, Netflix, Amazon Video, iTunes, HBO Go, etc.) Not recommended for gaming or software requiring a dedicated graphics card. See system requirements below

Description

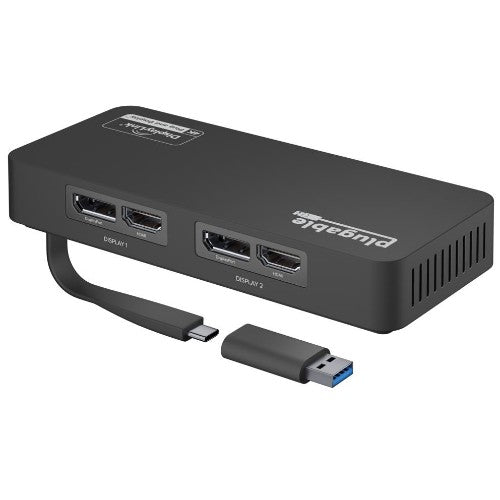

Quickly and easily add 2 Ultra HD/4K monitors to your USB 3.0 or USB-C laptop or desktop with the Plugable USB 3.0 and USB-C Dual 4K Display Adapter (USBC-6950U).

The USBC-6950U is the first and only dual display adapter that supports two HDMI or DisplayPort displays with a resolution of 4K 60Hz (3840x2160 @ 60Hz) each, without the need of additional video adapters. This display adapter lets you see and do more with your existing PC by connecting a single USB 3.0 or USB-C connection.

The USBC-6950U is an essential device to help maximize your productivity and your workspace. Great for managing email, web applications, Microsoft office, and more across multiple displays.

This adapter has two HDMI 2.0 ports and two DP 1.2 ports, and is backwards compatible with previous HDMI and DP specifications at lower resolutions.

Multiple Displays

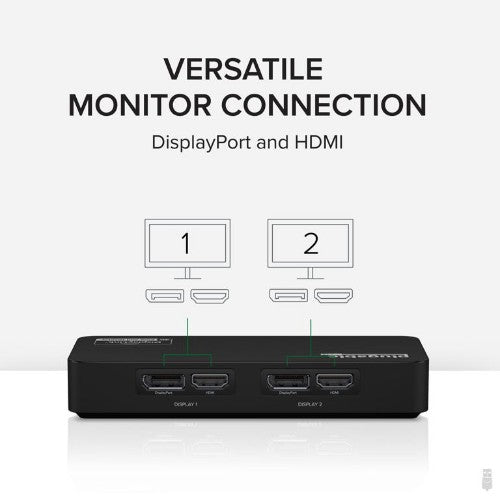

Equipped with HDMI 2.0 and DP 1.2 ports, our adapter allows you to mix and match display connections so it can fit your workstation needs.

Please note, only two external displays supported. If two displays are already connected the unoccupied video output ports on the adapter will not be able to output video.

UHD Image
Connect your HDMI or DP equipped monitor, television, or projector to your laptop and achieve resolutions up to 3840x2160 @ 60Hz (4K 60Hz).

Other popular supported resolutions include 3440x1440, 2560x1440, 1920x1200, 1920x1080, and lower.

Flexibility

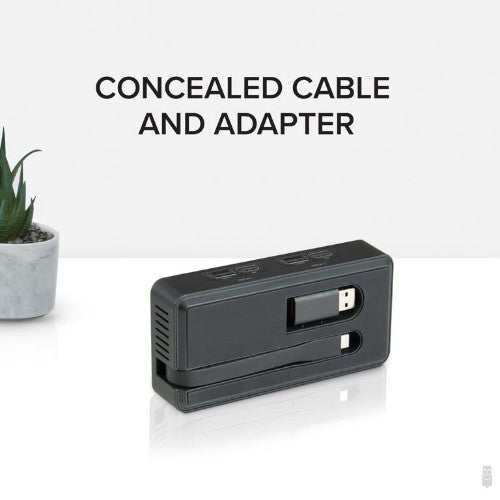

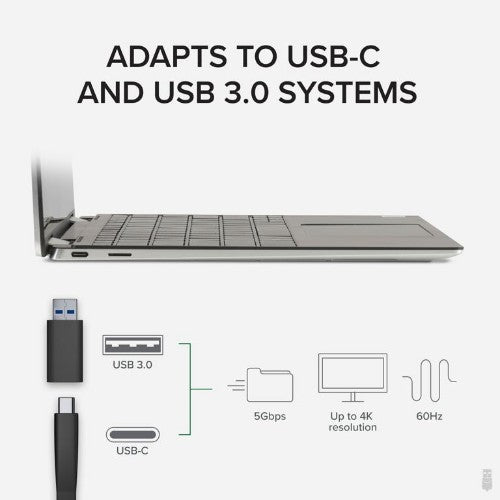

Includes a native USB-C connection with stowable cable and USB 3.0 (“USB-A”) adapter.

This allows you to adapt to the USB port of your choosing without performance compromises, as well as providing a storage option to take the adapter with you on-the-go.

Expand Your Workspace Up to Six Displays
The USBC-6950U provides users the ability to add up to two additional 4K displays, allowing them to expand their workflow out between different windows, view multiple projects at once, and easily reference materials when needed. With these products, although they are effective and valuable on their own, they can be easily added to an existing docking station for expanded capabilities. By doing so, Windows users can expand their workspace with up to six 1920x1080 displays using 3 separate adapters, or even build their own quad or triple display setup by combining the device with a single display USB-C dock, promoting even more productivity and efficiency. Moreover, the added portability of the adapters means you can extend your display from wherever you're working, whether that be at home, in an office space or on the road.

Please note, we only recommend a maximum of two external monitors if using 4K resolution monitors.

Specifications

Performance
USB connector form factor	Straight
Chipset	DisplayLink DL-6950
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1600 x 900, 1920 x 1080 (HD 1080), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 1600, 3840 x 2160
USB connector type	USB Type-C
USB connector gender	Male
Data transfer rate (max)	5 Gbit/s
USB version	3.2 Gen 1 (3.1 Gen 1)
DVI output	No
HDMI output	Yes
DisplayPort output	Yes
Number of displays supported	2
HDMI version	2.0
HDCP	No
DisplayPort version	1.2
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	60 Hz
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DisplayPorts quantity	2
HDMI ports quantity	2
Design
Product colour	Black
Package type	Box
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows RT 8.1
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	No
Mac compatibility	Yes
Packaging data
Package type	Box

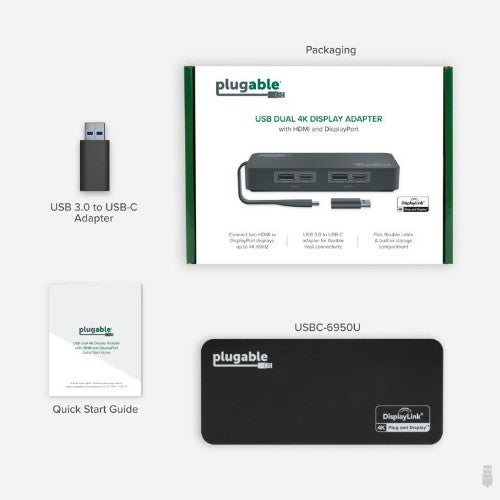

Packaging content
Quick installation guide	Yes
Interface adapters included	USB Type-A male - USB Type-C female
