203DPI, 225mm/s, Ethernet, RS232, USB, 256/512 MB, LCD
Description

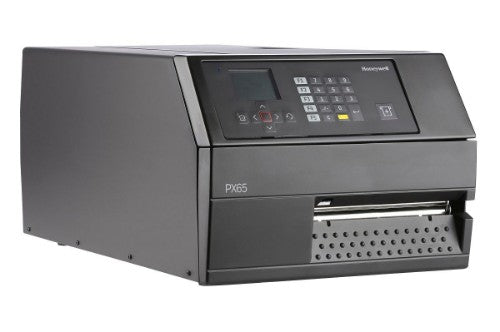

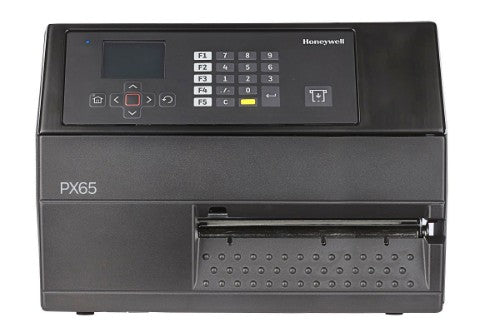

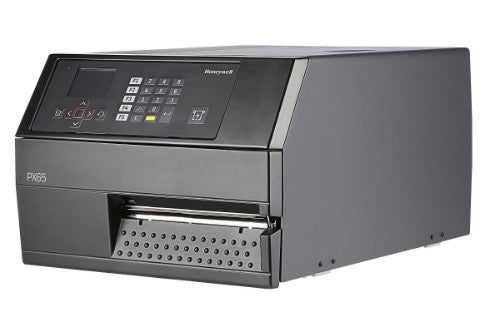

The rugged, all-metal PX45 and PX65 printers deliver outstanding performance – up to 12 inches per second from first label to last – and incorporate features that reduce downtime and minimize maintenance costs. Both versions are available with 203 or 300 dpi resolution, and the PX45 also offers 406 dpi, for precision labeling without any loss of speed. This is ideal for compliance labeling applications with variable data requiring immediate results.
The PX45 and PX65 printers’ smart design features support increased productivity in demanding environments. As Smart Printers, they can host stand-alone applications, developed through the Fingerprint and C# programming languages, helping reduce errors and streamline operational processes.
The printers’ device management and diagnostic capabilities – provided in web-based PrintSet 5 Configuration Management tool, configuration tool PrintSet MC for mobile devices and cloud-based Operational Intelligence– reduce downtime and simplify deployment. Replacing printheads is fast and easy, thanks to the magnetic QuickMount™ printhead design. The PX45 and PX65 printers are co-engineered and tested with Honeywell labels and other media products, optimizing performance when used with genuine Honeywell media.
Specifications
| Print quality |
|---|
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
6.57" (16.7 cm) |
| Printing |
|---|
| Print speed |
225 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
6.57" (16.7 cm) |
| Print technology |
Thermal transfer |
| Number of printable dots |
8 dot |
| Display |
|---|
| Display |
LCD |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Memory |
|---|
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Paper handling |
|---|
| Maximum roll diameter |
8.39" (21.3 cm) |
| Core diameter |
3" (7.62 cm) |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| RS-232 ports |
1 |
| Connectivity technology |
Wired |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| USB port |
Yes |
| Performance |
|---|
| Built-in barcodes |
1D, 2D |
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Design |
|---|
| Display |
LCD |
| Product colour |
Black |
| Built-in display |
Yes |
| Power |
|---|
| Power consumption (standby) |
5 W |
| Technical details |
|---|
| Product colour |
Black |
| Built-in barcodes |
1D, 2D |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
13.2" (335 mm) |
| Depth |
19" (482 mm) |
| Height |
9.37" (238 mm) |
| Weight |
27.8 lbs (12.6 kg) |
