Tripp Lite B118-002-UHDINT video splitter HDMI 2x HDMI

2-Port HDMI Splitter - UHD 4K, International AC Adapter

Key Features

• Supports UHD resolutions up to 4K @ 30 Hz for crystal-clear video transmission
• Supports DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound
• Cascade up to 3 levels of splitters to expand the number of connected displays to 128
• Plug-and-play operation with no software required for easy, immediate installation

Description

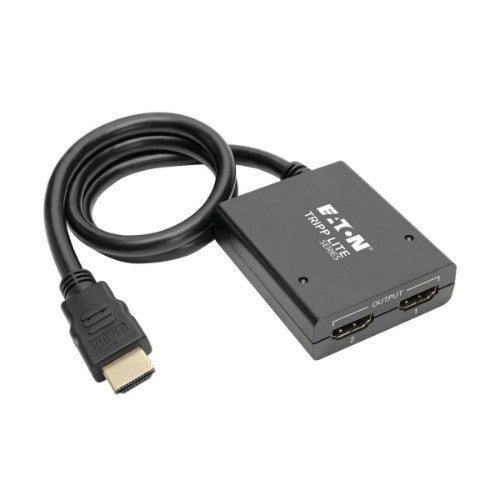

4K HDMI Splitter Transmits 4K Video + Audio to 2 HDMI Displays at the Same Time
Recommended for home theaters or short-distance digital signage applications in classrooms, offices, restaurants, bars, hotels and trade shows, this Ultra High Definition (UHD) HDMI splitter is quick and easy to install. It connects to an HDMI source device, such as a laptop or Blu-ray player, and transmits a 4K audio/video signal to two HDMI monitors, projectors or televisions simultaneously. You can also cascade up to three levels of splitters to send the same 4K signal to as many as 128 displays.

Transmits Crystal-Clear 4K Video and Multi-Channel Audio
The B118-002-UHDINT supports UHD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with 36-bit Deep Color (12 bits per channel). Place the splitter up to 1.64 feet from an HDMI source and up to 23 feet from a connected monitor for a maximum distance of nearly 24 feet from source to display. The B118-002-UHDINT also supports DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound.

Ready to Use Right Out of the Package

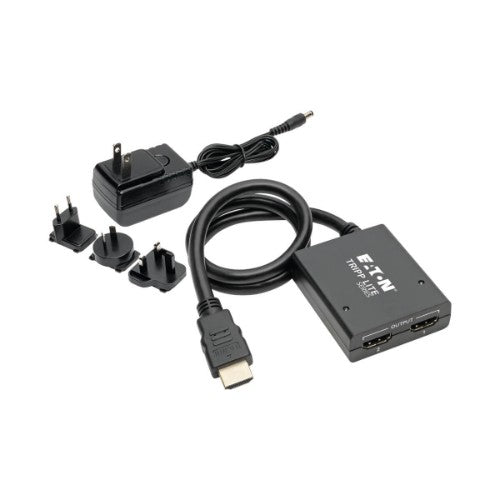

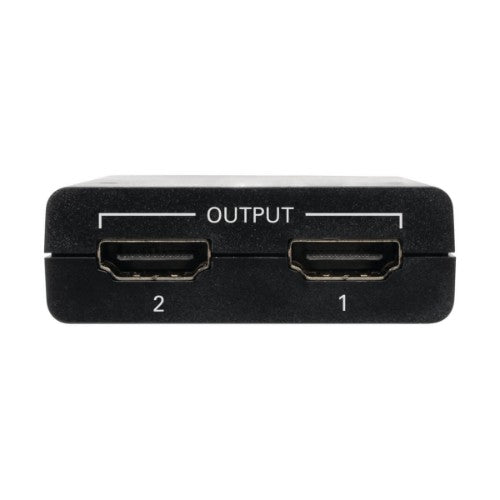

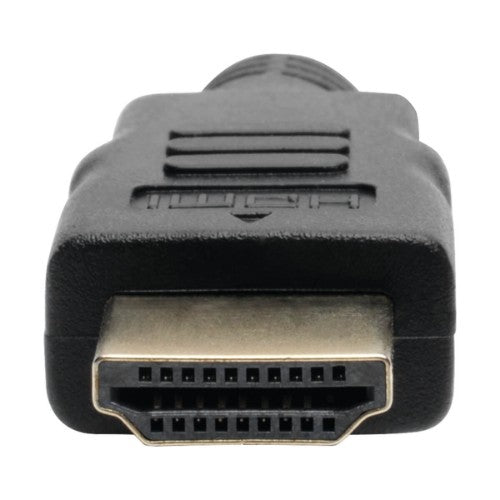

The plug-and-play HDMI splitter requires no software to download and install. A built-in HDMI cable connects to the source, and two HDMI outputs connect to displays with user-supplied HDMI cables (such as P568-Series, sold separately). The included external power supply comes with four international plug adapters that allow you to use the B118-002-UHDINT almost anywhere in the world.

Specifications

Ports & interfaces
Video ports quantity	2
Video port type	HDMI
Video out	2x HDMI

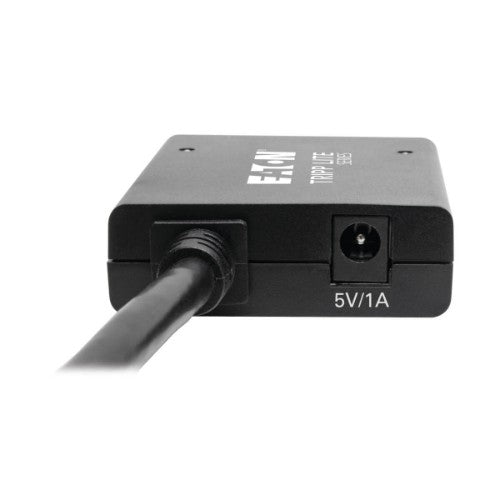

DC-in jack	Yes
Connector contacts plating	Gold
Cable length	19.7" (0.5 m)
Features
LED indicators	Yes
Dolby technologies	DTS-HD, Dolby Digital Plus, Dolby TrueHD
Colour depth	36 bit
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Plug and Play	Yes
Product colour	Black
3D	Yes
Connector contacts plating	Gold
Cable length	19.7" (0.5 m)
HD type	4K Ultra HD
HDCP version	1.4
Country of origin	Vietnam
Power
Input current	0.2 A
Output current	1 A
Output voltage	5 V
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Weight & dimensions
Weight	2.47 oz (70 g)
Width	2.13" (54 mm)
Depth	2.5" (63.5 mm)
Height	0.748" (19 mm)
Package weight	10.6 oz (300 g)
Package depth	4.72" (119.9 mm)
Package width	6.69" (169.9 mm)
Package height	2.36" (59.9 mm)
Packaging data
Package weight	10.6 oz (300 g)
Package depth	4.72" (119.9 mm)
Package width	6.69" (169.9 mm)
Package height	2.36" (59.9 mm)
Packaging content
AC adapter included	Yes
Included power plug types	AU, EU, NA, UK
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Video
Colour depth	36 bit
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
3D	Yes
Colour
Product colour	Black
Indication
LED indicators	Yes
Technical details
Dolby technologies	DTS-HD, Dolby Digital Plus, Dolby TrueHD
Package width	6.69" (169.9 mm)
Package height	2.36" (59.9 mm)
Video out	2x HDMI
Plug and Play	Yes
Sustainability compliance	Yes
Compliance certificates	CE, REACH, RoHS
Logistics data
Master (outer) case width	16.1" (410 mm)
Master (outer) case length	14.2" (359.9 mm)
Master (outer) case height	12.6" (320 mm)
Master (outer) case gross weight	21.6 lbs (9.8 kg)
Products per master (outer) case	30 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332261301
Harmonized System (HS) code	85176990
Country of origin	Vietnam
