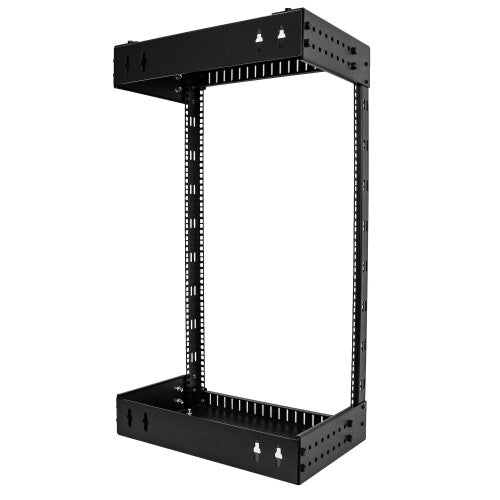

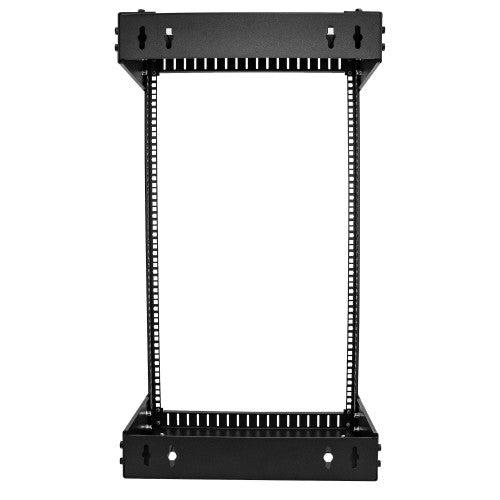

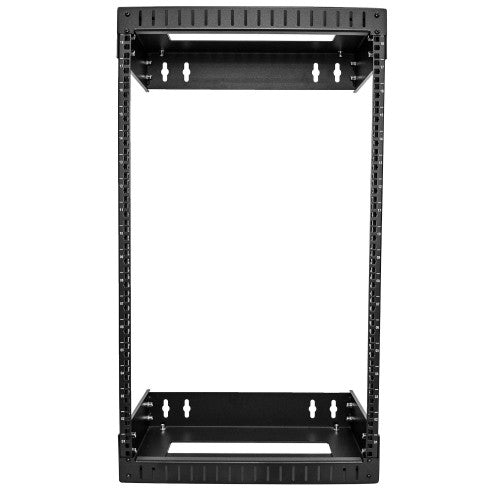

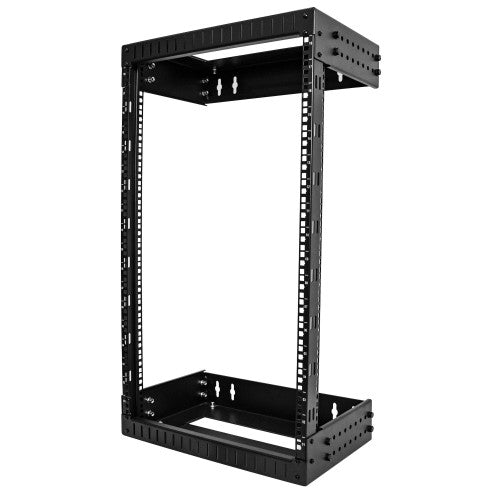

StarTech.com 18U 19" Wall Mount Network Rack - Adjustable Depth 12-20" 2 Post Open Frame Server Room Rack, AV/Data/ IT Communication/Computer Equipment/Switch, Cage Nuts & Screws (RACK-18U-20-WALL-OA)
Key Features
- ADJUSTABLE DEPTH: This 2-post 18U 19 inch open frame rack is EIA/ECA-310 compliant, and with an adjustable mounting depth ranging from 12 - 20 inches, is ideal for network switches, servers, patch panels, and PDUs
- HEAVY DUTY: This durable rack has a 2.0mm thick vertical rail SPCC cold-rolled steel and a weight capacity of up to 200 lbs (90 kg). Its design supports unobstructed airflow to help keep your equipment cool and easy to install with access to all sides
- ACCESSORIES INCLUDED: The wall mount equipment rack includes a complete set of M6 square cage nuts and M6 screws to securely mount all of your equipment in the rack and also features comprehensive assembly instructions
- CERTIFIED PACKAGING: The rack ships flat packed to ensure complete and undamaged delivery and is ISTA-6 certified
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 2-post adjustable wall-mounted rack is backed by a 5-year warranty, including free lifetime 24/5 North America based multi-lingual tech support
Description
Mount your network and telecommunications equipment with the convenience of adjustable depth
The RACK-18U-20-WALL-OA 18U Open Frame Wall Mount Equipment Rack with Adjustable Depth is a high-quality, sturdy relay rack solution that is easy to assemble and install into any environment.
Sturdy Construction & Easy Installation
The open rack features an adjustable depth ranging from 12-20 inches to accommodate larger data, network, and telecommunications devices. With a maximum depth of 20 inches, this rack allows for mounting of shelves and other accessories with enough clearance at the back for cable management. The open-frame design help to keep your equipment cool and easily accessible from different angles. The wall mounting holes are positioned 12 and 16 inches apart (center to center) providing a convenient and effecting anchoring, making it suitable for mounting on virtually any wall surface or construction framework.
Includes Hardware
This 18U rack includes M6 square cage nuts and M6 screws to save you the hassle of sourcing separate mounting hardware for your equipment. This rack can be mounted to the wall in a server room, data closet, or office expanding your valuable floor space.
The RACK-18U-20-WALL-OA is backed for 5-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Specifications
| Weight & dimensions |
|---|
| Package depth |
46.1" (1170 mm) |
| Package width |
16.5" (420 mm) |
| Package height |
6.3" (160 mm) |
| Package weight |
43.4 lbs (19.7 kg) |
| Mounting depth (max) |
20" (50.8 cm) |
| Width |
19.8" (504 mm) |
| Depth |
20" (508 mm) |
| Height |
35.7" (906 mm) |
| Weight |
33.5 lbs (15.2 kg) |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Mounting kit |
Yes |
| Nuts included |
Yes |
| Number of nuts |
2 |
| Screws included |
Yes |
| Number of screws |
4 |
| Number of washers included |
4 |
| Features |
|---|
| Frame type |
Open |
| Product design |
2-post |
| Rack capacity |
18U |
| Mounting hole shape |
Square |
| Type |
Wall mounted rack |
| Maximum weight capacity |
198.4 lbs (90 kg) |
| Material |
Steel |
| Product colour |
Black |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Mounting kit |
Yes |
| Nuts included |
Yes |
| Number of nuts |
2 |
| Package depth |
46.1" (1170 mm) |
| Package width |
16.5" (420 mm) |
| Package height |
6.3" (160 mm) |
| Package weight |
43.4 lbs (19.7 kg) |
| Screws included |
Yes |
| Number of screws |
4 |
| Number of washers included |
4 |
| Technical details |
|---|
| Package width |
16.5" (420 mm) |
| Package height |
6.3" (160 mm) |
| Type |
Wall mounted rack |
| Compliance industry standards |
EIA/ECA-310-E |
| Harmonized System (HS) code |
85381000 |
| Rack capacity |
18U |
| Colour |
|---|
| Product colour |
Black |
| Material |
|---|
| Material |
Steel |
| Logistics data |
|---|
| Master (outer) case width |
16.5" (420 mm) |
| Master (outer) case length |
46.1" (1170 mm) |
| Master (outer) case height |
6.3" (160 mm) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
