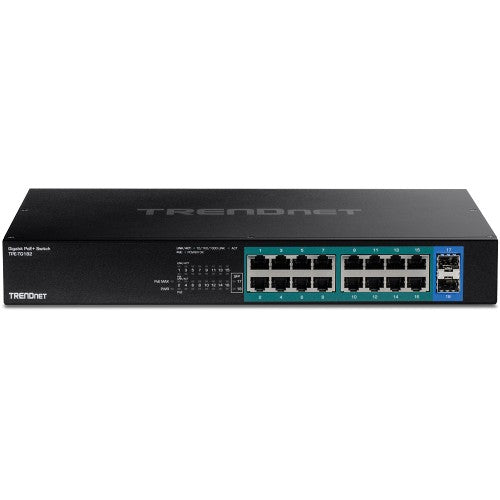

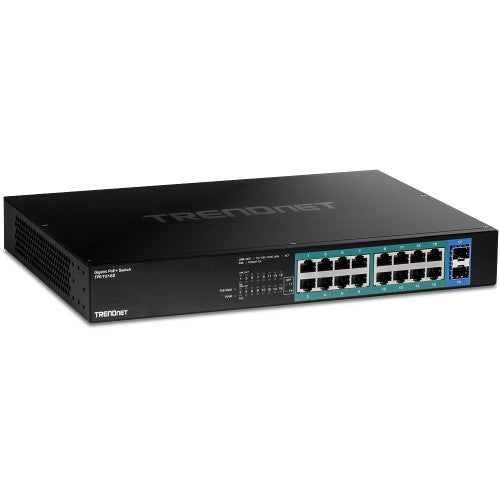

18-Port Gigabit PoE+ Switch, 2x SFP, 1U
Key Features
- 16 x Gigabit PoE+ ports (up to 30W per port)
- 2 x Gigabit SFP Slots
- 240W PoE power budget
- 36Gbps switching capacity
- Internal power supply
- Sturdy 1U 19” rack-mountable metal housing
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s Unmanaged Gigabit PoE+ Switches provide high-bandwidth performance, ease of use, and reliability. These IEEE 802.3at compliant switches conveniently feature a sturdy 1U 19” rack-mountable metal housing with mounting brackets included. These gigabit PoE+ switches with SFP slots also support long-distance fiber network applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged gigabit PoE+ switches by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices, such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, and access controls with these reliable gigabit PoE+ switches with SFP support.
Gigabit PortsGigabit ports feature a full switching capacity on this rackmount PoE+ switch, with SFP slots for long-distance fiber applications.
Hardware DesignWith a sturdy metal housing and rackmount brackets included, this switch is well-suited for 19” 1U rack installations.
PoE PowerA 240W total PoE power budget supports 16 PoE+ devices with up to 30W per port.
Specifications
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
18 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
2 |
| Installed SFP+ modules quantity |
0 |
| Network |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| 10G support |
No |
| Half duplex |
Yes |
| Data transmission |
| Packet buffer memory |
0.5 MB |
| MAC address table |
8000 entries |
| Switching capacity |
36 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
23.8 Mpps |
| Design |
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Number of fans |
1 fan(s) |
| Certification |
NDAA / TAA, CE, FCC, ETL |
| Performance |
| Noise level |
26 dB |
| Mean time between failures (MTBF) |
659157 h |
| Packet buffer memory |
0.5 MB |
| Power |
| Power consumption (max) |
40 W |
| Power protection features |
Over current, Short circuit |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
240 W |
| Power over Ethernet (PoE) |
Yes |
| Power protection features |
Over current, Short circuit |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Width |
12.8" (324 mm) |
| Depth |
9.06" (230 mm) |
| Height |
1.73" (44 mm) |
| Weight |
5.51 lbs (2.5 kg) |
| Packaging content |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| Technical details |
| Form factor |
1U |
| Product colour |
Black |
| Noise level |
26 dB |
| Mean time between failures (MTBF) |
659157 h |
| Rack mounting |
Yes |
| Memory |
| Packet buffer memory |
0.5 MB |
| Certificates |
| Certification |
NDAA / TAA, CE, FCC, ETL |
| Indication |
| LED indicators |
Yes |
| Packaging data |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Cables included |
AC |
