Micro-ATX, LGA1700, Intel H610, DDR4, SSD, Windows 10/11
Key Features
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Reasons To Buy
Core Boost
With premium layout and digital power design to support more cores and provide better performance.
4K & Legacy Video Support
Featuring HDMI, DisplayPort and VGA port, supports both digital and legacy display.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience.
Description
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FROZR AI COOLINGDetecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
Specifications
| Technical details |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H610 |
| Supported processor sockets |
LGA 1700 |
| Parallel processing technology support |
Not supported |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Audio |
|---|
| Audio output channels |
7.1 channels |
| Performance |
|---|
| Supported storage drive types |
SSD |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H610 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Supported processor sockets |
LGA 1700 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel® Core™ i9 |
| Supported processor sockets |
LGA 1700 |
| Processor socket |
LGA 1700 |
| Memory |
|---|
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
2133,2666,2933,3200 MHz |
| Maximum internal memory |
64 GB |
| ECC сompatibility |
Non-ECC |
| Storage controllers |
|---|
| Supported storage drive types |
SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| DirectX version |
12.0 |
| Internal I/O |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| 12V power connector |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| TPM connector |
Yes |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |

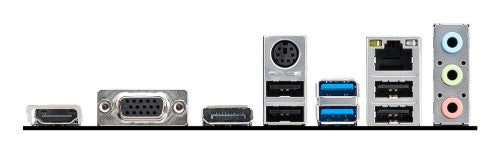

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Features |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H610 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Supported processor sockets |
LGA 1700 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Audio chip |
Realtek ALC897 |
| Harmonized System (HS) code |
84733020 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| Video |
|---|
| DirectX version |
12.0 |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Drivers included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Height |
2.56" (65 mm) |
| Weight |
26.9 oz (764 g) |
| Width |
8.31" (211 mm) |
| Depth |
9.61" (244 mm) |
| Packaging content |
|---|
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
|---|
| Height |
2.56" (65 mm) |
| Weight |
26.9 oz (764 g) |
