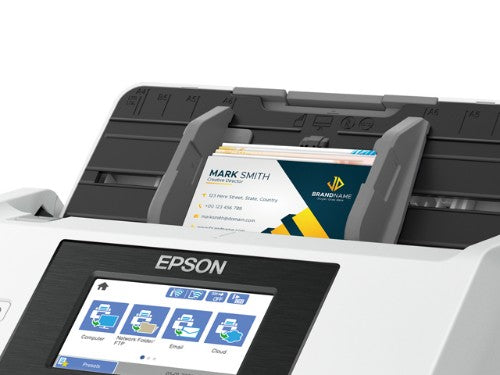

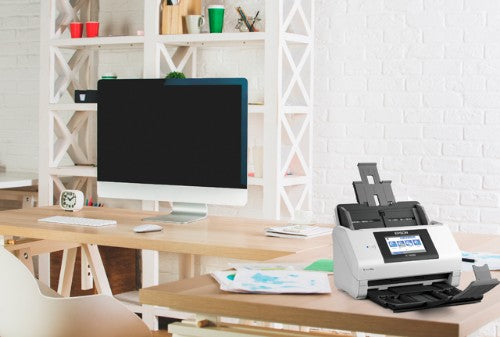

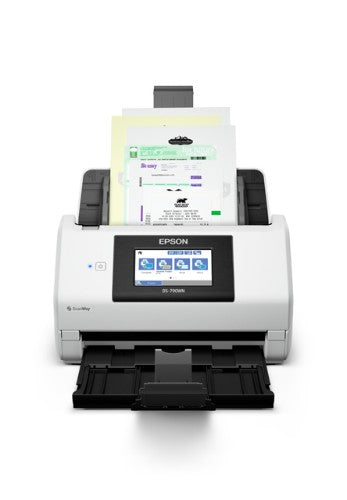

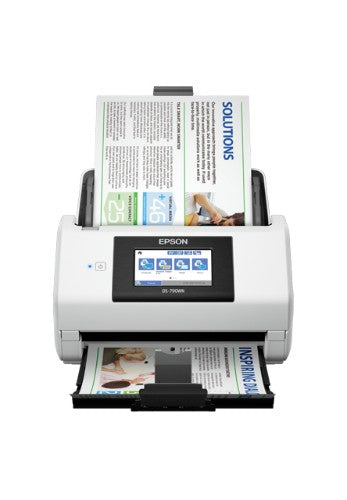

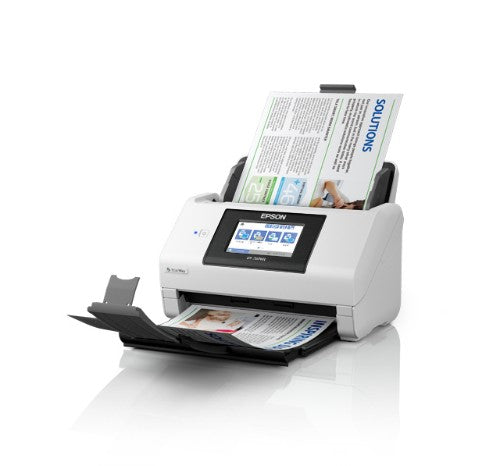

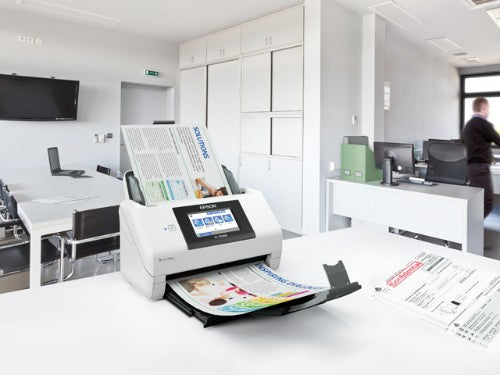

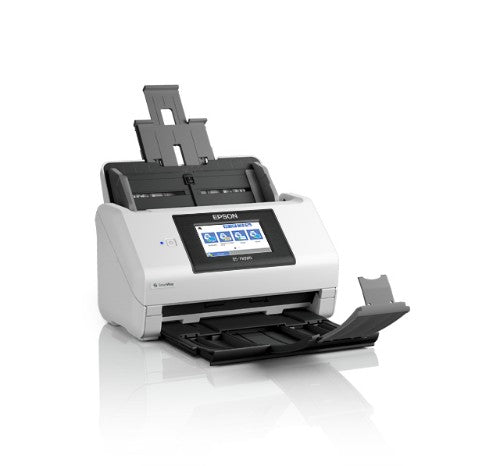

Epson WorkForce DS-790WN, 8.5 x 240" (215.9 x 6096 mm), 600 x 600 DPI, 30 bit, 24 bit, 30 bit, 24 bit
Description
Epson WorkForce DS-790WN. Maximum scan size: 8.5 x 240" (215.9 x 6096 mm), Optical scanning resolution: 600 x 600 DPI, Input color depth: 30 bit. Scanner type: Sheet-fed scanner, Product color: Black, White, Display: LCD. Sensor type: Colour CIS, Daily duty cycle (max): 7000 pages, Light source: RGB LED. Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Envelopes, Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A4, A5, A6, A8
Specifications
| Scanning |
|---|
| Output greyscale depth |
24 bit |
| Output monochrome depth |
24 bit |
| Maximum scan size |

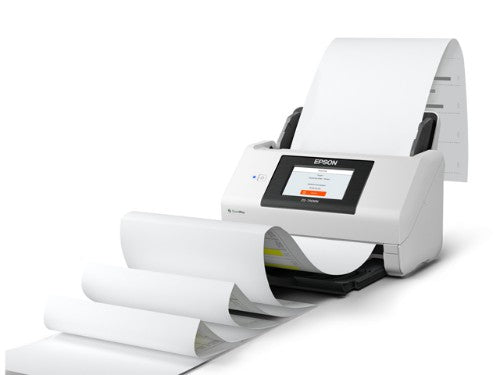

8.5 x 240" (215.9 x 6096 mm) |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Input colour depth |
30 bit |
| Output colour depth |
24 bit |
| Input greyscale depth |
30 bit |
| Sensor type |
Colour CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
7000 pages |
| Scan to |
E-mail, FTP, Network folder, Software, USB |
| Design |
|---|
| Built-in display |
Yes |
| Touchscreen |
Yes |
| Scanner type |
Sheet-fed scanner |
| Display diagonal |
4.3" |
| Display |
LCD |
| Product colour |
Black, White |
| Colour display |
Yes |
| Performance |
|---|
| Sensor type |
Colour CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
7000 pages |
| Scan to |
E-mail, FTP, Network folder, Software, USB |
| Scan drivers |
ICA, ISIS, SANE, TWAIN, WIA |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
100 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A4 |
| Scanning media types supported |
Business Card, Envelopes, Plastic Card, Post Card(JPN) |
| Letter |
Yes |
| Legal |
Yes |
| ISO B-series sizes (B0...B9) |
B5, B6 |
| ISO A-series sizes (A0...A9) |
A4, A5, A6, A8 |
| Paper tray media weight |
27 - 413 g/m² |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Software |
|---|
| Scan drivers |
ICA, ISIS, SANE, TWAIN, WIA |
| Power |
|---|
| Power consumption (typical) |
15 W |
| Power consumption (standby) |
1.6 W |
| Power consumption (off) |
0.1 W |
| Input voltage |
100 - 240 V |
| Power supply type |
AC |
| Power consumption (sleep) |
1.6 W |
| AC input frequency |
50 - 60 Hz |
| Display |
|---|
| Touchscreen |
Yes |
| Display diagonal |
4.3" |
| Display |
LCD |
| Media formats |
|---|
| Letter |
Yes |
| Legal |
Yes |
| ISO B-series sizes (B0...B9) |
B5, B6 |
| ISO A-series sizes (A0...A9) |
A4, A5, A6, A8 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Packaging data |
|---|
| Package depth |
10.6" (269 mm) |
| Package weight |
10.6 lbs (4.81 kg) |
| Package width |
14.7" (373 mm) |
| Package height |
12.9" (327 mm) |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Scanner type |
Sheet-fed scanner |
| Product colour |
Black, White |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Operating relative humidity (H-H) |
15 - 80% |
| Storage relative humidity (H-H) |
15 - 85% |
| Weight & dimensions |
|---|
| Package depth |
10.6" (269 mm) |
| Package weight |
10.6 lbs (4.81 kg) |
| Width |
11.6" (294.6 mm) |
| Depth |
6.6" (167.6 mm) |
| Height |
6.5" (165 mm) |
| Weight |
8.09 lbs (3.67 kg) |
| Package width |
14.7" (373 mm) |
| Package height |
12.9" (327 mm) |
| Packaging content |
|---|
| Cables included |
AC, USB |
| Other features |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Scanner type |
Sheet-fed scanner |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
