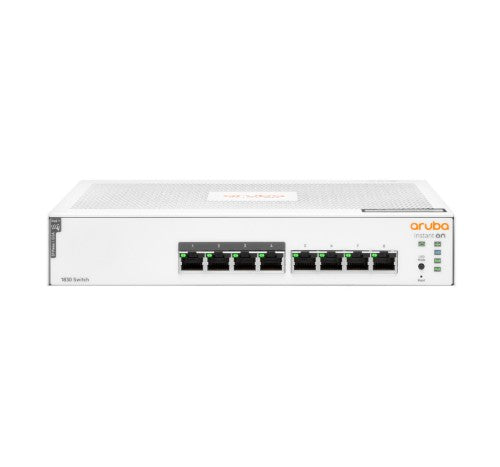

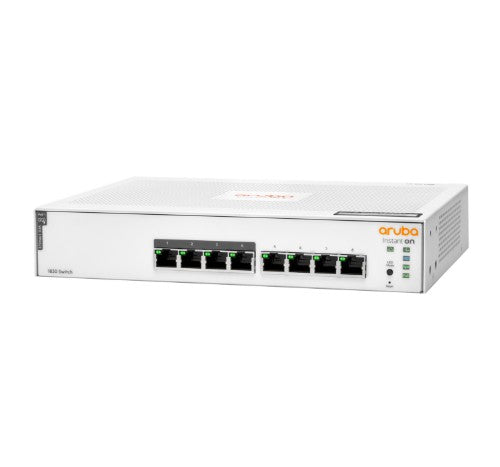

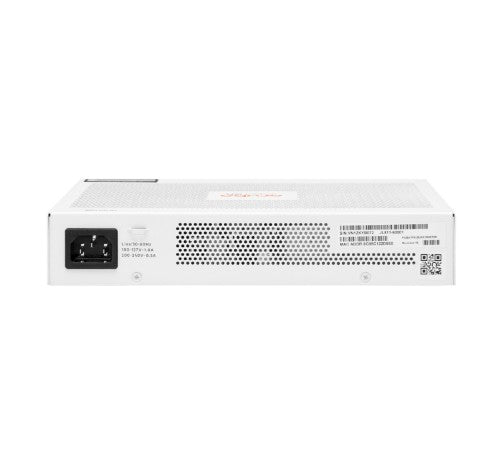

HPE Aruba Networking Aruba Instant On 1830 8G 4p Class4 PoE 65W, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Description
HPE Aruba Networking Aruba Instant On 1830 8G 4p Class4 PoE 65W. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Throughput |
11.9 Mpps |
| Latency (10-100 Mbps) |
5.2 µs |
| Latency (1 Gbps) |
2.8 µs |
| Packet buffer memory |
1.5 MB |
| MAC address table |
8000 entries |
| Switching capacity |
16 Gbit/s |
| Jumbo frames support |
Yes |
| Security |
|---|
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Design |
|---|
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
|---|
| Processor frequency |
800 MHz |
| Memory type |
SDRAM |
| Internal memory |
512 MB |
| Flash memory |
256 MB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A9 |
| Packet buffer memory |
1.5 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power consumption (max) |
83.67 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
65 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
7.68" (195.1 mm) |
| Depth |
9.65" (245.1 mm) |
| Height |
1.73" (43.9 mm) |
| Weight |
3.4 lbs (1.54 kg) |
| Technical details |
|---|
| Form factor |
1U |
| Processor frequency |
800 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Memory |
|---|
| Packet buffer memory |
1.5 MB |
| Memory type |
SDRAM |
| Internal memory |
512 MB |
| Flash memory |
256 MB |
