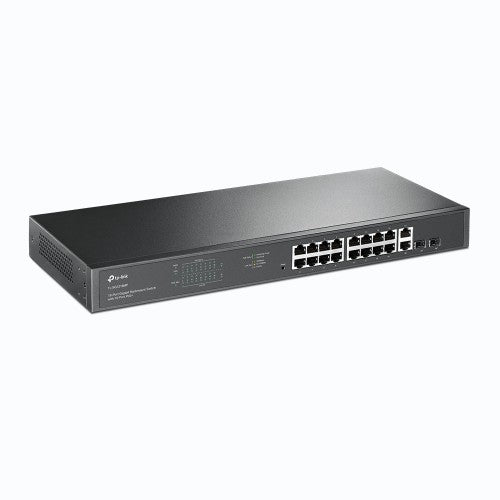

TP-Link TL-SG1218MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

36 Gbps, 26.78 Mpps, 16x 10/100/1000 Mbps RJ-45, 2x 1G RJ-45, 2x Combo SFP, 440x180x44 mm

Key Features

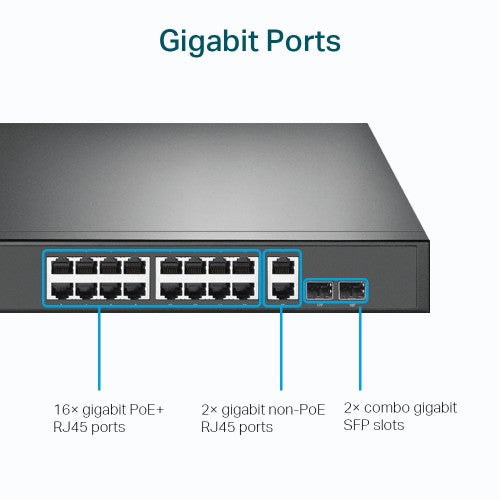

• 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
• Working with IEEE 802.3af/at compliant PDs
• Plug and play, with no configuration and installation needed
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)

Description

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+

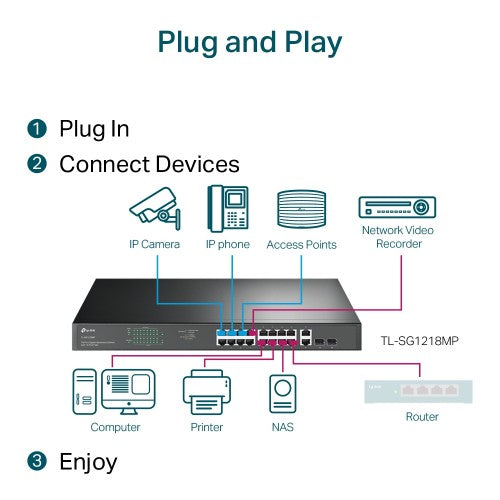

Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

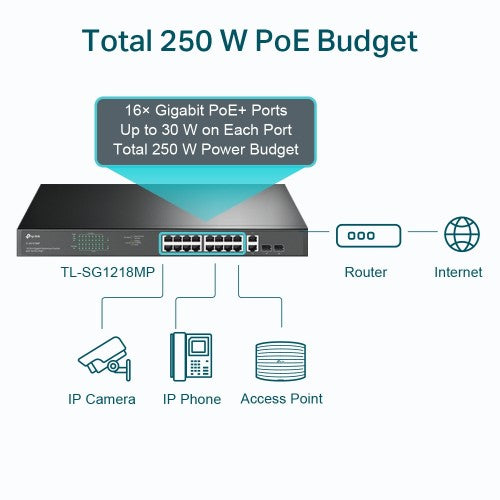

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

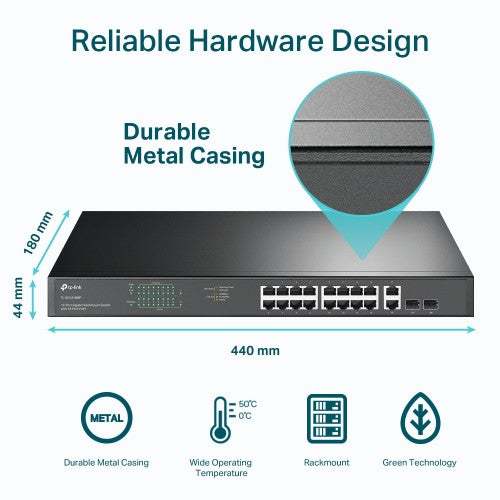

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Specifications

Management features
Traffic classification	Yes
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Gigabit Ethernet (copper) ports quantity	18
Network
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Data transmission
Jumbo frames	10000
Packet buffer memory	4.1 MB
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Jumbo frames support	Yes
Forwarding rate	26.78 Mpps
Design
Form factor	1U
Product colour	Black
LED indicators	Yes
Housing material	Metal
Rack mounting	Yes
Number of fans	2 fan(s)
Certification	CE, FCC, RoHS
Power
Power consumption (max)	286.64 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	977.44 BTU/h
Weight & dimensions
Width	17.3" (440 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Packaging content
Quick start guide	Yes
Cables included	AC
Packaging data
Package width	9.84" (250 mm)
Package depth	20.8" (528 mm)
Package height	3.15" (80 mm)
Package weight	6.72 lbs (3.05 kg)
Quick start guide	Yes
Cables included	AC
Performance
Packet buffer memory	4.1 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Form factor	1U
Product colour	Black
Housing material	Metal
Rack mounting	Yes
Memory
Packet buffer memory	4.1 MB
Certificates
Certification	CE, FCC, RoHS
Indication
LED indicators	Yes
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
Logistics data
Harmonized System (HS) code	85176990
