Axis 02168-001 security camera Box IP security camera Outdoor 2688 x 1512 pixels Ceiling/wall
Save -11%
Description
2688 x 1512, 50/60 fps, 1/1.8, CMOS, PoE, IP66, IP67, IK10, 4.4 kg
Key Features
- Built-in wiper for snow and rain; Enhanced security features; Exceptional images with 1/1.8” sensor; Premium Axis Q-line camera functionality; Support for analytics with deep learning
Description

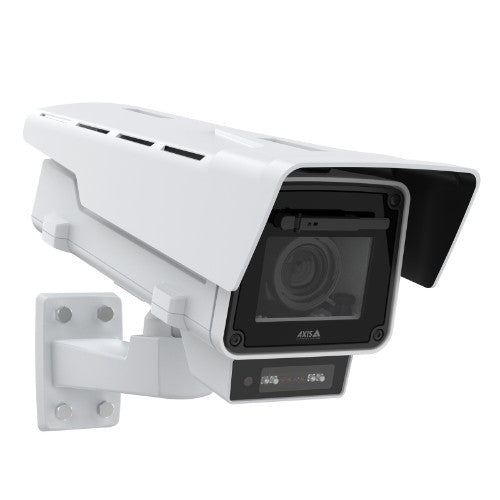

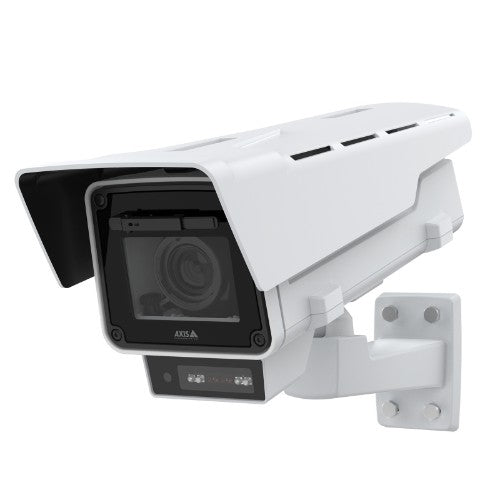

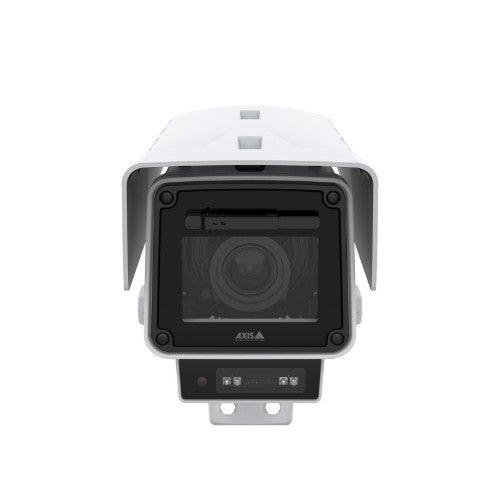

With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656-LE delivers exceptional video quality even in poor light conditions. Plus, a built-in wiper ensures great images in all weather conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and powerful applications based on deep learning on the edge. And, AXIS Object Analytics offers highly nuanced object classification. This outdoor-ready camera includes premium Q-line functionality and support for PoE and redundant DC power. Furthermore, enhanced security functionality prevents unauthorized access and safeguards your system.Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| PTZ protocols | Pelco-D |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Design | |
| IK code | IK10 |
| Form factor | Box |
| Product colour | White |
| Mounting type | Ceiling/wall |
| LED indicators | Yes |
| International Protection (IP) code | IP66, IP67 |
| Camera | |
| Minimum illumination | 0.05 lx |
| Camera shutter speed | 1/47500 - 1 s |
| Camera pan control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/1.8" |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Auto focus | Yes |
| Zoom capability | Yes |
| Optical zoom | 2.5x |
| Normal focusing range | 0.5 m |
| Focal length range | 3.9 - 10 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Noise reduction | Yes |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Gain control type | Auto |
| Bit rate | Configurable bit rate |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 2688 x 1512 pixels |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Audio | |
| Audio system full duplex | Yes |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1.1, Syslog |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Internal memory | 2048 MB |
| Flash memory | 8194 MB |
| Built-in SSD | No |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 2048 MB |
| Flash memory | 8194 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | H.264, H.265 |
| Type | IP security camera |
| Form factor | Box |
| Placement supported | Outdoor |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Progressive scan | Yes |
| Doesn't contain | BFR, PVC |
| Security | |
| Alert notification type | E-mail, Text alert message |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 11.8 W |
| Indication | |
| LED indicators | Yes |
| Certificates | |
| International Protection (IP) code | IP66, IP67 |
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(B)/NMB-3(B), EN 50121-4, IEC 62236-4, KS C 9832 Class A, KS C 9815, KS C 9835, KS C 9547, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 15.9" (404 mm) |
| Depth | 6.26" (159 mm) |
| Height | 7.17" (182 mm) |
| Weight | 9.7 lbs (4.4 kg) |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265 |
