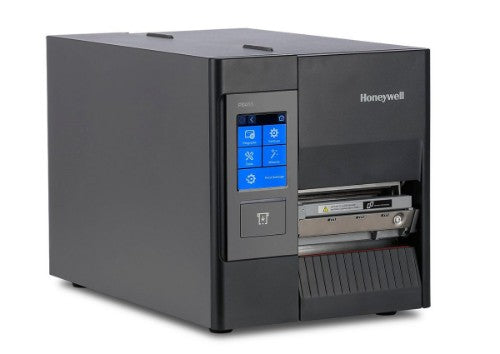

Honeywell PD45S0C label printer Direct thermal / Thermal transfer 203 x 203 DPI 250 mm/sec Wired Ethernet LAN

PD45S, 2.6" Color LCD-Display, 8 dots/mm (203 dpi), ZPLII, ZSim II, IPL, DPL, USB, USB Host, RS232, Ethernet

Description

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	4.25" (10.8 cm)
Printing
Minimum print length	189" (4.8 m)
Colour	No
Print speed	250 mm/sec
Maximum resolution	203 x 203 DPI
Maximum printing width	4.25" (10.8 cm)
Print technology	Direct thermal / Thermal transfer
Display
Display diagonal	2.6"
Display	LCD
Network
Ethernet LAN	Yes
Memory
Internal memory	128 MB
Flash memory	128 MB
Paper handling
Ribbon width	4.33" (11 cm)
Ribbon length	17716.5" (450 m)
Maximum roll diameter	3.15" (8 cm)
Ports & interfaces
RS-232 ports	1
Connectivity technology	Wired
Ethernet LAN	Yes
USB port	Yes
Performance
Ribbon width	4.33" (11 cm)
Ribbon length	17716.5" (450 m)
Internal memory	128 MB
Flash memory	128 MB
Design
Display diagonal	2.6"
Display	LCD
Product colour	Black
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Product colour	Black
Ribbon width	4.33" (11 cm)
Ribbon length	17716.5" (450 m)
Harmonized System (HS) code	84433210
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	20 - 85%
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 85%
Weight & dimensions
Width	9.8" (249 mm)
Depth	17.2" (438 mm)
Height	10.6" (270 mm)
Weight	20.4 lbs (9.25 kg)
Logistics data
Harmonized System (HS) code	84433210
