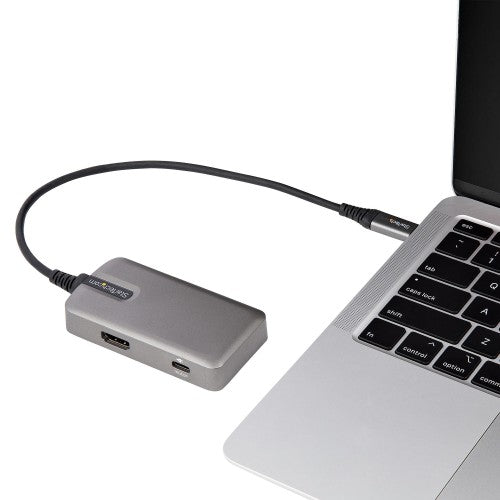

StarTech.com USB C Multiport Adapter - USB-C to 4K 60Hz HDMI 2.0, 100W Power Delivery Pass-through - 3-Port 10Gbps USB Hub - Portable USB Type-C Mini Docking Station - 10" (25cm) Cable (DKT31CHPD3)
Key Features
- 4-IN-1 USB-C MULTIPORT ADAPTER: USB 3.1 Gen 2/10Gbps docking station supports HDMI 2.0b, 4K 60Hz HDR10 video; 1x USB-A 10Gbps w/BC 1.2 (7.5W); 2x USB-C 10Gbps incl 1x shared data & 100W PD 3.0 pass through; Works w/ultra-wide monitors up to 3440x1440 60Hz
- EXTRA LONG CABLE: 10" (25 cm) attached cable for extended reach to reduce port/connector strain on devices like Surface Pro 7 & up, iPad Pro, iPhone 15 (Plus/Pro/Max) & up, HP Elite laptops; Ideal for travel use in office, home office & shared work spaces
- 4K 60HZ WITH DP 1.4 ALT-MODE: Supports 4K 60Hz digital resolution on DP 1.4 Alt-Mode host devices (Intel 11th Gen minimum); Supports 4K 30Hz on DP 1.2 Alt-Mode host devices; PS186 chip for compatibility with iPad Pro and iPad Mini with USB Type-C
- WIDE COMPATIBILITY: Mini dock is compatible with USB-C laptops, Ultrabooks & Chromebooks, Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel processor & M1 chip), and Surface; works w/ Windows, macOS, iPadOS, iOS, Android, Linux & Chrome OS
- OUR ADVANTAGE: Included Connectivity Tools app with USB Event Monitoring to log/timestamp USB port usage, enabling admins to identify potentially malicious devices & Windows Layout Utility to restore windows app locations when re-connecting displays
Description
USB-C Multiport Adapter | HDMI Video | 1x USB-A (10Gbps) | 2x USB-C (10Gpbs) Including 1x Data + 100W PD Pass-Through
This USB-C multiport adapter with support for 4K 60Hz HDMI® (HDR) turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, a USB 3.1 Gen 2 Type-A (10Gbps) port (supporting BC 1.2/7.5W device charging), a USB 3.1 Gen 2 Type-C (10Gbps) port, and an additional USB 3.1 Gen 2 Type-C port that can also be used as a 100W PD 3.0 pass through port - all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.
USB 3.1 Gen 2 (10Gbps) is also known as USB 3.2 Gen 2x1 (10Gbps).
Enhance Productivity
The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultra-wide monitor with resolutions up to 3440x1440 60Hz.
DP Alt Mode Required
Maximum Resolution
DP 1.2 Alternate Mode
Up to 4K 30Hz
DP 1.4 Alternate Mode
Up to 4K 60Hz
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you a USB-A (10Gbps) port, and a USB-C (10Gbps) port to connect your USB devices. Plus, when using the multifunction adapter without a power adapter connected, the additional USB-C port, that the power adapter connects to, can be used as a USB-C (10Gbps) peripheral port.
Easy Portability
For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and fits easily into a laptop bag for on-the-go travel use in your office, home office and shared work spaces.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data and video disruption when you switch power sources (USB-C power adapter to bus power).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
USB Event Monitoring Utility : To track and log connected USB devices
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The DKT31CHPD3 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity |
1 |
| Microphone in |
No |
| Connectivity technology |
Wired |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| DisplayPort version |
1.4 |
| Network |
|---|
| Ethernet LAN |
No |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
3096 x 2160 pixels |
| Number of displays supported |
1 |
| Product colour |
Gray |
| Card reader integrated |
No |
| Data transfer rate |
10 Gbit/s |
| Certification |
TAA, FCC |
| HD type |
4K Ultra HD |
| Maximum refresh rate |
60 Hz |
| High Dynamic Range 10 (HDR10) |
Yes |
| Technical details |
|---|
| Product colour |
Gray |
| Data transfer rate |
10 Gbit/s |
| Cable length |
9.84" (0.25 m) |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
CE, RoHS |
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
16.5" (420 mm) |
| Master (outer) case length |
8.94" (227 mm) |
| Master (outer) case height |
12.5" (318 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power consumption (typical) |
15 W |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iPadOS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Weight |
1.76 oz (50 g) |
| Package weight |
5.89 oz (167 g) |
| Package width |
8.27" (210 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
1.57" (40 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Product colour |
Gray |
| Certification |
TAA, FCC |
| Packaging data |
|---|
| Package weight |
5.89 oz (167 g) |
| Package width |
8.27" (210 mm) |
| Package depth |
5.67" (144 mm) |
| Package height |
1.57" (40 mm) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Certificates |
|---|
| Certification |
TAA, FCC |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case width |
16.5" (420 mm) |
| Master (outer) case length |
8.94" (227 mm) |
| Master (outer) case height |
12.5" (318 mm) |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Chipset |
Parade Technologies - PS186, Genesys Logic - GL3590, Genesys Logic - GL9510 |
| Cable length |
9.84" (0.25 m) |
