5-15P, (8) 5-15R, 1440/1440, 120V, 50/60H
Description

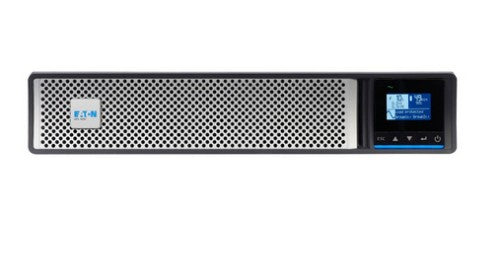

Introducing the latest addition to Eaton's 5 series UPS line, the Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. The 5PX G2 UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 5PX G2 UPS has reduced depth to conserve space allowing for high desnisty wallmount rack options, with the 2 to 3 kVA models.
Join the list to be first to know about the new Eaton 5PX G2 UPS.
5PX G2 UPS features include:
Deployment simplified: The 5PX G2 UPS offers mass UPS firmware upgrades without dropping the load and provides an easy startup configuration wizard simplifying your UPS setup process.
Runtime: Increased standard runtime by at least 25% on 1.5 and 2 kVA models compared to the orginal 5PX UPS
Stay connected, securely: Reduce risk of intrusion with the optional Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards
Enhanced surge protection: The 5PX G2 provides enhanced surge protection keeping your branch offices and IT closets equiment safe
Specifications
| Power |
|---|
| Output power |
1440 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
230 V |
| Output power capacity |
1.44 kVA |
| Input frequency |
50/60 Hz |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Output power |
1440 W |
| Input operation voltage (min) |
120 V |
| Input operation voltage (max) |
230 V |
| Output power capacity |
1.44 kVA |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| RS-232 ports |
1 |
| USB port type |
USB Type-B |
| Battery |
|---|
| Battery voltage |
48 V |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
15 min |
| Typical backup time at full load |
5 min |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black, Silver |
| Display type |
LCD |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Weight & dimensions |
|---|
| Weight |
50.7 lbs (23 kg) |
| Width |
17.2" (436.9 mm) |
| Height |
3.4" (86.4 mm) |
| Depth |
17.6" (447 mm) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Quick installation guide |
Yes |
| Cables included |
RS-232, USB cable |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
