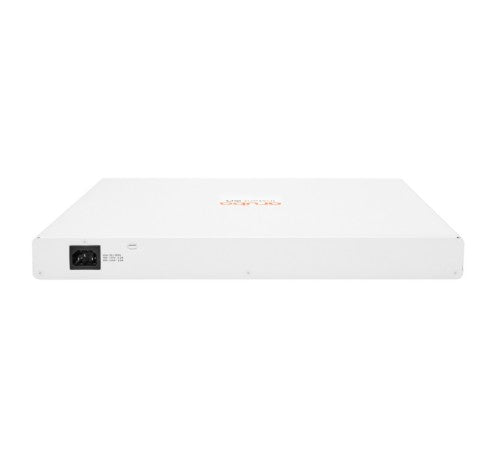

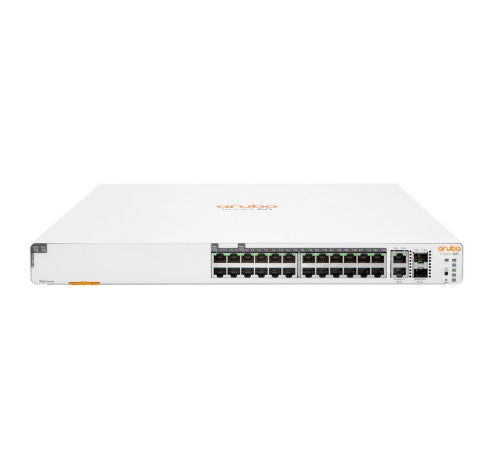

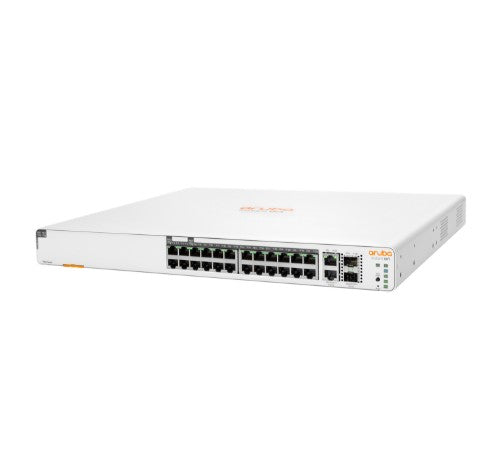

HPE Aruba Networking Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Description
HPE Aruba Networking Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L2+ |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
|---|
| Auto-sensing |
Yes |
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| IGMP snooping |
Yes |
| IPv6 FIB entries |
32 |
| IPv4 FIB entries |
32 |
| Data transmission |
|---|
| Throughput |
95 Mpps |
| Latency (10-100 Mbps) |
4.4 µs |
| Latency (1 Gbps) |
2.2 µs |
| Latency (10 Gbps) |
1.1 µs |
| MAC address table |
16000 entries |
| Switching capacity |
128 Gbit/s |
| Jumbo frames support |
Yes |
| Security |
|---|
| Authentication |
Port-based authentication |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS |
| DHCP features |
DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| IPv6 FIB entries |
32 |
| IPv4 FIB entries |
32 |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Design |
|---|
| Form factor |
1U |
| Product colour |
White |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Physical stacking (units) |
4 |
| Processor frequency |
800 MHz |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A9 |
| Stackable |
Yes |
| Power |
|---|
| Power consumption (max) |
500 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
15 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
17.4" (442.5 mm) |
| Depth |
13.8" (350.5 mm) |
| Height |
1.73" (44 mm) |
| Weight |
10.4 lbs (4.7 kg) |
| IPv4 & IPv6 features |
|---|
| IPv6 FIB entries |
32 |
| IPv4 FIB entries |
32 |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Technical details |
|---|
| Physical stacking (units) |
4 |
| Form factor |
1U |
| Product colour |
White |
| Stackable |
Yes |
| Processor frequency |
800 MHz |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
