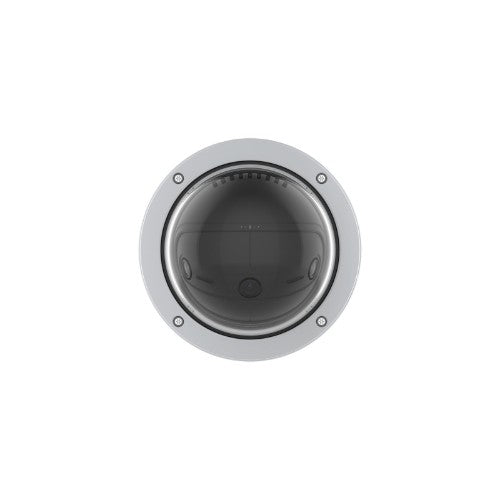

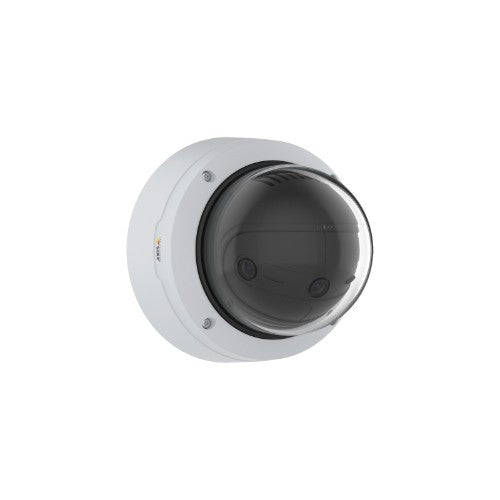

Axis 02060-001 security camera IP security camera Outdoor 5120 x 2560 pixels Ceiling/wall

Roll over image to zoom in Click on image to zoom

Axis 02060-001 security camera IP security camera Outdoor 5120 x 2560 pixels Ceiling/wall

Name: Axis 02060-001 security camera IP security camera Outdoor 5120 x 2560 pixels Ceiling/wall
Brand: Axis
SKU: 02060-001
Price: 2286.53 USD
Availability: InStock

Axis

Price:

$2,286.53

Stock:

In stock

Quantity:

P3818-PVE

Key Features

13 MP multisensor camera with one IP address; 180° horizontal, 90° vertical coverage; Built-in cybersecurity features; Seamlessly stitched images; Support for audio input

Description

AXIS P3818-PVE delivers a 180º panoramic overview of extensive areas with ultra-high resolution images and incredible details up to 30 fps. With 13 MP resolution and seamless stitching of all three images, it offers 180° horizontal and 90° vertical coverage with no blind spots. Including a variety of mounting options, it’s also possible to mount two cameras back-to-back for a complete 360° overview, using AXIS T94V01C Dual Camera Mount. Featuring edge-to-edge technology, it’s easy to add support for audio enabling you to listen in to transactions or incidents. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Number of languages	11
Languages support	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	EAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6) NIST SP500-267
Design
IK code	IK10
Product colour	White
Mounting type	Ceiling/wall
International Protection (IP) code	IP66, IP67
Housing material	Aluminum, Polycarbonate (PC)
Camera
Minimum illumination	0.05 lx
Tilt angle range	0 - 50°
Pan range	-180 - 180°
Camera shutter speed	1/91000 - 1/25, 1/50000 - 1/25 s
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	180°
Lens viewing angle, vertical	90°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.8"
Lens system
Maximum aperture number	2
Fixed focal length	0.126" (3.2 mm)
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Maximum resolution	5120 x 2560 pixels
Frame rate	30 fps
Video streaming	Yes
Total megapixels	13 MP
Audio
Voice codecs	G.711, G.726, OPUS
Audio system	2-way
Network
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3at
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf)
Storage
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	512 MB
Ports & interfaces
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Memory
Flash memory	512 MB
Hard drive
Built-in HDD	No
Technical details
Video compression formats	AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Type	IP security camera
Placement supported	Outdoor
Product colour	White
Mounting type	Ceiling/wall
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Progressive scan	Yes
Security
Security algorithms	EAP-TLS, FIPS 140-2
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Material
Housing material	Aluminum, Polycarbonate (PC)
Management features
Web-based management	Yes
Power
Power source type	PoE
Power consumption (max)	18 W
Power consumption (typical)	11 W
Certificates
International Protection (IP) code	IP66, IP67
Certification	EAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6) NIST SP500-267
Operational conditions
Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	8.11" (206 mm)
Height	8.7" (221 mm)
Weight	4.85 lbs (2.2 kg)
Packaging content
Number of cameras	1
Other features
Video compression formats	AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Logistics data
Harmonized System (HS) code	85258900
