2880 x 2880, 25/30 fps, 1/1.7, CMOS, 0.19 lux, PoE, IK10, IP66
Key Features
- 12 MP sensor with 360° overview; 4 microphones with voice enhancer; Lightfinder, Forensic WDR, OptimizedIR; Stereographic lens and Sharpdome 360; Support for analytics with deep learning
Description

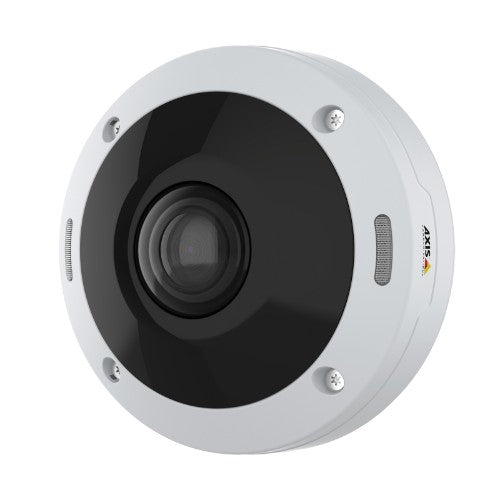

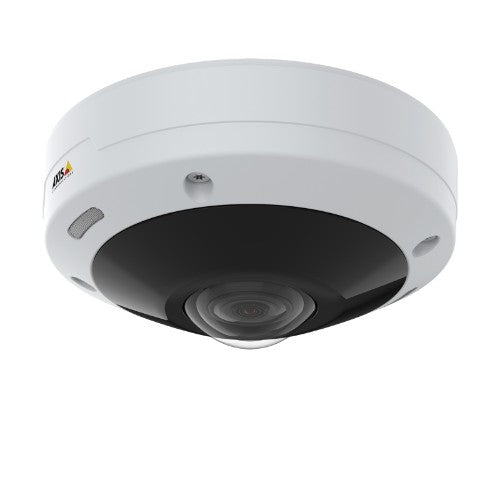

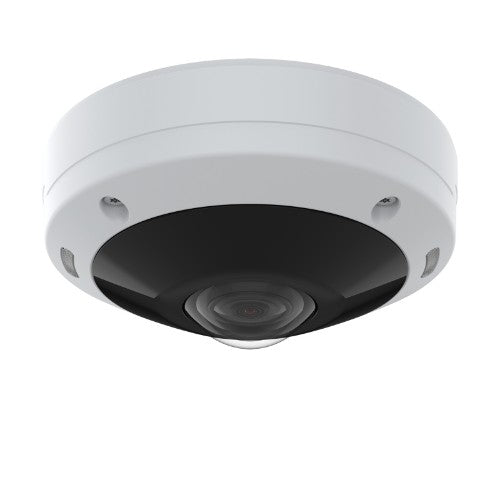

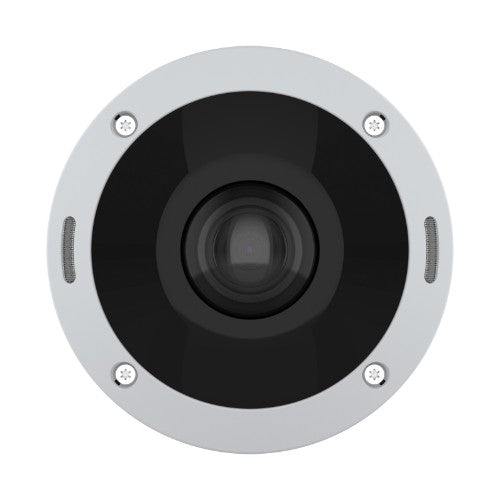

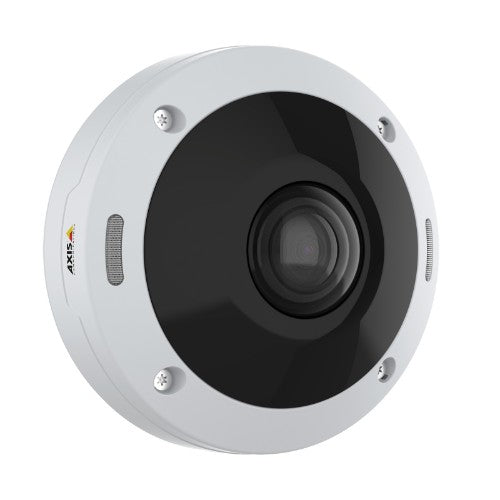

AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.
Specifications
| Performance |
|---|
| Infrared (IR) cut-off filter |
Yes |
| Number of languages |
12 |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| PTZ modes |
Digital PTZ |
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Alarm input/output |
Yes |
| Certification |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A,
RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835 |
| Design |
|---|
| IK code |
IK10 |
| Form factor |
Dome |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Protection features |
Dust resistant, Water resistant |
| LED indicators |
Yes |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminum |
| Camera |
|---|
| Minimum illumination |
0.04 lx |
| Field of view (FOV) angle |
183° |
| Camera shutter speed |
1/22000 - 1 s |
| Camera pan control |
Yes |
| Camera tilt control |
Yes |
| Lens viewing angle, horizontal |
183° |
| Progressive scan |
Yes |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Progressive scan |
Yes |
| Optical sensor size |
1/1.7" |
| Number of sensors |
1 |
| Lens system |
|---|
| Number of lenses |
1 |
| Auto focus |
No |
| Fixed focus |
Yes |
| Zoom capability |
Yes |
| Focal length range |
1.3 mm |
| Night vision |
|---|
| Night vision |
Yes |
| LED type |
IR |
| Video |
|---|
| Image quality adjustment |
Brightness, Contrast |
| Privacy masking |
Yes |
| Maximum resolution |
2880 x 2880 pixels |
| Frame rate |
30 fps |
| Video streaming |
Yes |
| Total megapixels |
12 MP |
| Video recording |
Yes |
| Audio |
|---|
| Built-in microphone |
Yes |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS |
| Audio detection |
Yes |
| Network |
|---|
| Bluetooth |
No |
| Networking standards |
IEEE 802.3at |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Storage |
|---|
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory |
2000 MB |
| Flash memory |
1000 MB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Memory |
|---|
| Internal memory |
2000 MB |
| Flash memory |
1000 MB |
| Hard drive |
|---|
| Built-in HDD |
No |
| Technical details |
|---|
| Type |
IP security camera |
| Form factor |
Dome |
| Placement supported |
Indoor & outdoor |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Protection features |
Dust resistant, Water resistant |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Alarm input/output |
Yes |
| Progressive scan |
Yes |
| Security |
|---|
| Alert notification type |
E-mail, Text alert message |
| Security algorithms |
802.1x RADIUS, HTTPS |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Active tampering alarm |
Yes |
| Pixel counter |
Yes |
| Digest authentication |
Yes |
| Material |
|---|
| Housing material |
Aluminum |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
15.5 W |
| Power consumption (typical) |
7.9 W |
| Indication |
|---|
| LED indicators |
Yes |
| Certificates |
|---|
| International Protection (IP) code |
IP66 |
| Certification |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A,
RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 50 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
10 - 100% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Height |
2.72" (69 mm) |
| Diameter |
5.87" (14.9 cm) |
| Weight |
30 oz (850 g) |
| Packaging content |
|---|
| Number of cameras |
1 |
| Mounting kit |
Yes |
| Mounting brackets included |
Yes |
| Manual |
Yes |
| Drilling template included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85258900 |
