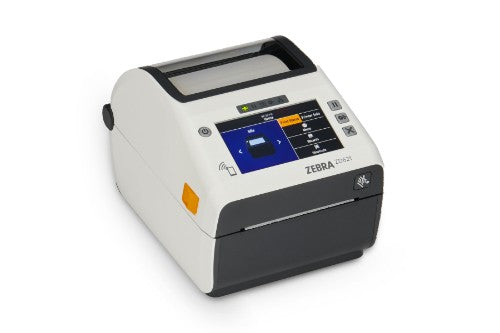

ZD621 Direct Transfer, Healthcare, LCD, 300 DPI, USB, Ethernet, Serial, BTLE5, US Cord, Swiss Font, EZPL
Description
You need a premium, quality healthcare printer that’s built to perform flawlessly—day in and day out. Rely on Zebra’s ZD621 healthcare desktop printers, built specifically for healthcare, and advancing the proven and popular ZD620 printers. Don’t compromise. Get it all: an innovative new architecture to power our ever-expanding printer capabilities and software. Healthcare-specific engineering with disinfectant-ready plastics, UV-resistant and medical-grade power supply. Unmatched security that’s constantly evolving to shield you from cyberattacks and safeguard your sensitive data, including patient information. A new standard 4.3-in., full-color LCD touch display with intuitive menu. Enhanced features, communication and field-installable media-handling options. And, increased remote- management capabilities. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security to keep you moving forward.
Specifications
| Print quality |
|---|
| Maximum resolution |
300 x 300 DPI |
| Maximum printing width |
4.25" (10.8 cm) |
| Printing |
|---|
| Colour |
No |
| Print speed |
152 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Maximum printing width |
4.25" (10.8 cm) |
| Print technology |
Direct thermal |
| Number of printable dots |
12 dot |
| Design |
|---|
| LED indicators |
Yes |
| Touchscreen |
Yes |
| Display diagonal |
4.3" |
| Colour display |
Yes |
| Display resolution |
480 x 272 pixels |
| Display |
LCD |
| Product colour |
Black, White |
| Control type |
Buttons |
| Built-in display |
Yes |
| Display |
|---|
| Touchscreen |
Yes |
| Display diagonal |
4.3" |
| Colour display |
Yes |
| Display resolution |
480 x 272 pixels |
| Display |
LCD |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Memory |
|---|
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Paper handling |
|---|
| Supported paper width |
108 mm |
| Ribbon width |
4.29" (10.9 cm) |
| Ribbon length |
11811" (300 m) |
| Media thickness |
0.08 - 0.19 mm |
| Maximum roll diameter |
5" (12.7 cm) |
| Maximum label length |
39" (0.991 m) |
| Core diameters supported |
12.7 mm (0.5"), 25.4 mm (1"), 38.1 mm (1.5"), 76.2 mm (3") |
| Ports & interfaces |
|---|
| RS-232 ports |
1 |
| RS-232 interface |
Yes |
| Connectivity technology |
Wired & Wireless |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| USB port |
Yes |
| Performance |
|---|
| Ribbon width |
4.29" (10.9 cm) |
| Ribbon length |
11811" (300 m) |
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Page description languages |
EPL2, PDF, XML, ZBI, ZPL II |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Technical details |
|---|
| Windows operating systems supported |
Yes |
| Product colour |
Black, White |
| Ribbon width |
4.29" (10.9 cm) |
| Ribbon length |
11811" (300 m) |
| Maximum label length |
39" (0.991 m) |
| LED indicators |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
| Safety warning |
IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark,
CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
4.4 - 41 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
6.97" (177 mm) |
| Depth |
8.7" (221 mm) |
| Height |
5.94" (151 mm) |
| Weight |
3.53 lbs (1.6 kg) |
| Other features |
|---|
| LED indicators |
Yes |
