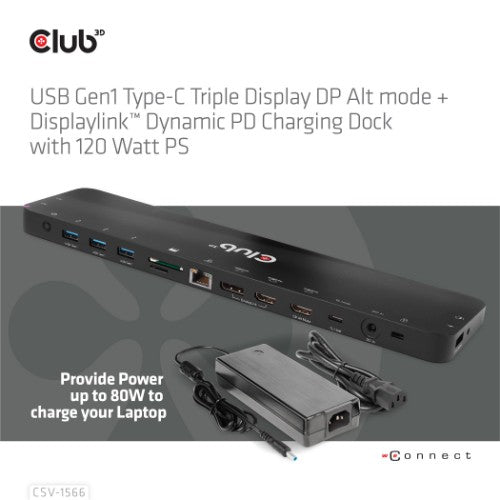

USB Gen1 Type-C Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS
Key Features
- Support DP1.2 Alt mode and Displaylink™/ USB mode
- Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter) to be multiple video, data and power ports
- Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and Window system
- HDMI™ 1 (DP™ Alt mode) supports max 4K/30Hz
- HDMI™ 2 (USB mode) supports max 4K/60Hz
- DP™(USB mode) support max 4K/60Hz
- Support DP++
- Support smart charging with max 5V/2.4A
- Support Gigabit Ethernet to get access to super fast network
- Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously
- Support audio in and out
- Support max 120W DC power in and bypass 80W to host
- Short-circuit, over-current, over-voltage protection
Description

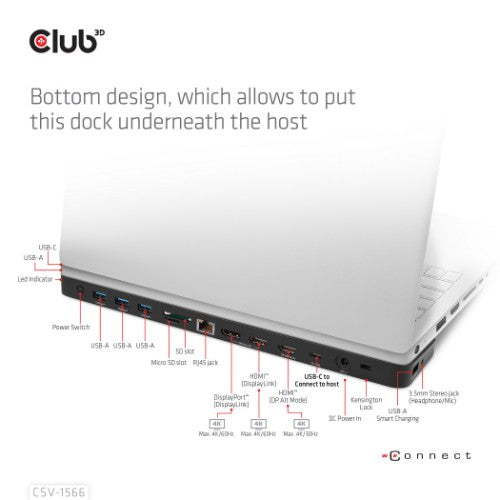

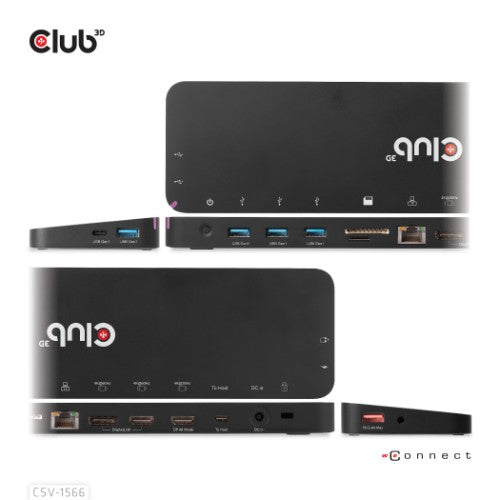

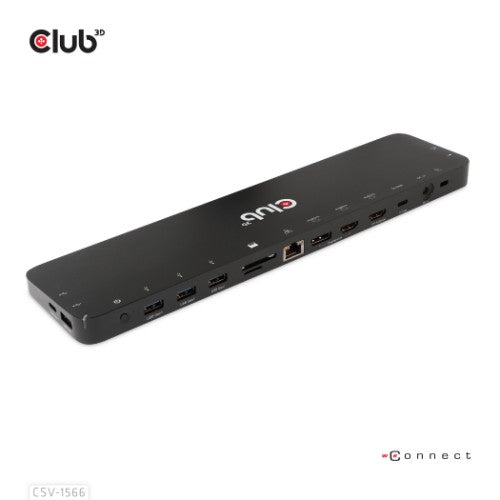

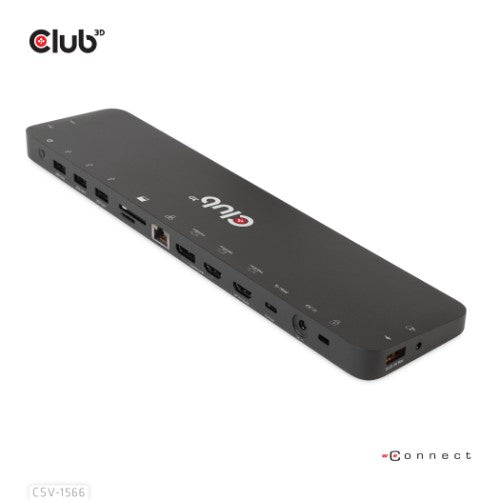

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio, video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile devices (Apple, Samsung phones, pads, etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with a max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.

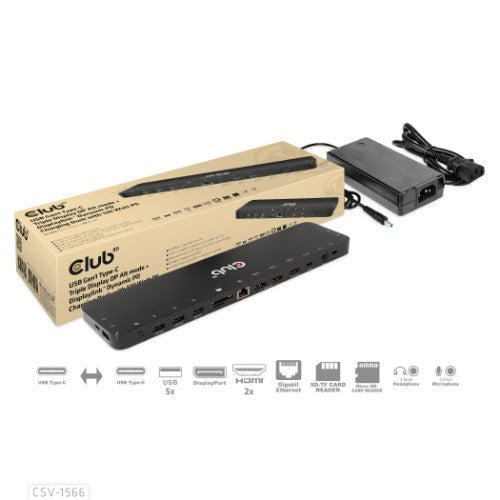

Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Docking |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product colour |
Black |
| Card reader integrated |
Yes |
| Compatibility |
Lenovo
Dell
Acer
Asus.
MSI.
Toshiba
Apple
HP
Razer |
| Plug and Play |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Certification |
Meets ROHS, FCC, and CE EMI requirements |
| Technical details |
|---|
| Product colour |
Black |
| Compatibility |
Lenovo
Dell
Acer
Asus.
MSI.
Toshiba
Apple
HP
Razer |
| Plug and Play |
Yes |
| Harmonized System (HS) code |
8473 3020 |
| Plastic packaging weight |
0.176 oz (5 g) |
| Voltage |
20.5 V |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Power |
|---|
| Power source type |
DC |
| Weight & dimensions |
|---|
| Weight |
12.6 oz (358 g) |
| Width |
12" (304 mm) |
| Depth |
3.03" (77 mm) |
| Height |
0.709" (18 mm) |
| Package weight |
25.6 oz (726 g) |
| Package width |
14.2" (360 mm) |
| Package depth |
4.53" (115 mm) |
| Package height |
2.56" (65 mm) |
| Design |
|---|
| Product colour |
Black |
| Certification |
Meets ROHS, FCC, and CE EMI requirements |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
25.6 oz (726 g) |
| Package width |
14.2" (360 mm) |
| Package depth |
4.53" (115 mm) |
| Package height |
2.56" (65 mm) |

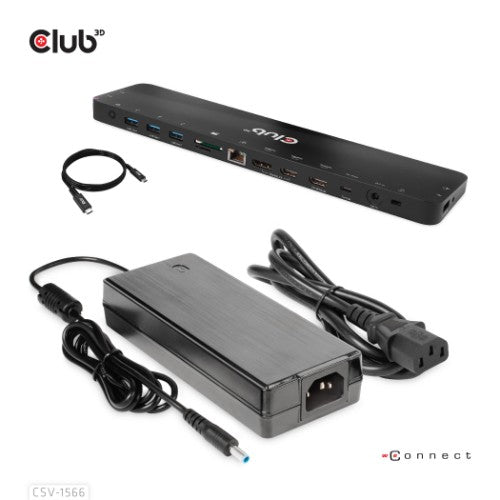

| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB Type-C |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
Meets ROHS, FCC, and CE EMI requirements |
| Packaging composition |
|---|
| Plastic packaging weight |
0.176 oz (5 g) |
| Paper/cardboard packaging weight |
5.93 oz (168 g) |
| Total plastic packaging weight |
0 oz (0 g) |
| Total paper/cardboard packaging weight |
0 oz (0 g) |
| Logistics data |
|---|
| Harmonized System (HS) code |
8473 3020 |
| Other features |
|---|
| Voltage |
20.5 V |
