StarTech.com USB C to Mini DisplayPort Adapter, 4K 60Hz USB Type C to mDP/Mini DP Monitor Video Converter Dongle, Thunderbolt 3 Compatible, 12" Attached Cable, Upgraded Version of CDP2MDP (CDP2MDPEC)
Key Features
- HIGH PERFORMANCE: An Upgrade to CDP2MDP, this USB C to Mini DisplayPort adapter connects a USB-C or thunderbolt computer to an mDP monitor, supporting resolutions up to 4K 60Hz UHD (3840x2160); Backwards compatible with 1080p

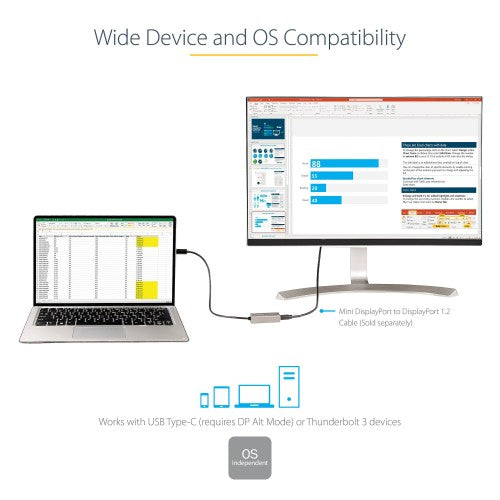

- HOST COMPATIBILITY: Adapter works with DP Alt Mode USB-C and Thundetbolt computers such as Dell XPS, Precision, Latitude, Lenovo ThinkPad X1 Carbon, Extreme, Surface Laptop 3, Pro 7, HP EliteBook, Chromebook and MacBook Pro/Air (Intel & M-Series)
- DISPLAY COMPATIBILITY: External video converter is tested for peak performance at 4K 60Hz on a range of Mini DP monitors incl. brands like Dell UltraSharp, Samsung, Asus ProArt, Acer & LG; Supports Ultrawide Displays (3440x1440)
- APPLE COMPATIBILITY: Compatible with Mini DisplayPort displays, including 30" Apple Cinema Display (A1083) and 27"/24" Apple LED Cinema Display (A1316/A1267); Not compatible with Thunderbolt monitors, such as the 27" Apple Thunderbolt Display (A1407)
- SPECS: Compact, portable design; DP Alt Mode; mDP 1.2 HBR2; 2ch Audio; HDCP 2.2/1.4; 12" (30cm) attached cable; USB Type-C (DisplayPort over USB-C); USB C (male) to Mini DisplayPort (female); Supports a driverless setup and is OS independent
Description
Extended Cable | DP 1.2 | HBR2 | Thunderbolt 3 Compatible

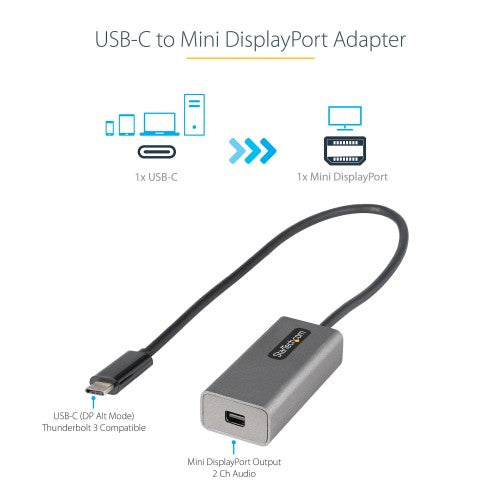

This USB-C™ to Mini DisplayPort™ adapter enables you to output mDP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.

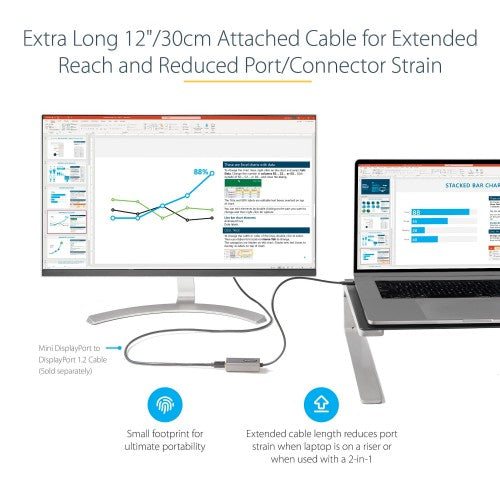

Extended Cable Length
This USB C adapter dongle is equipped with an extra-long 12" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.
Ultra HD 4K Resolution
The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.
Plus, the USB-C to Mini DP adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
Ultimate Portability
This USB C to mDP video converter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.
The CDP2MDPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
The StarTech.com Advantage

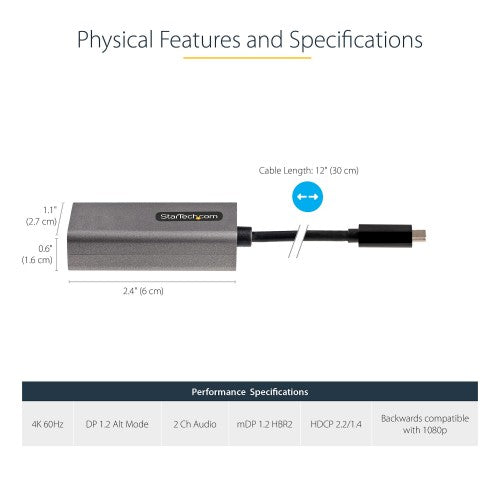

Specifications
| Performance |
|---|
| USB connector form factor |
Straight |
| USB connector type |
USB Type-C |
| USB connector gender |
Male |
| DVI output |
No |
| HDMI output |
No |
| DisplayPort output |
No |
| Number of displays supported |
1 |
| HDCP |
Yes |
| DisplayPort version |
1.2 |
| Maximum resolution |
3840 x 2160 pixels |
| Refresh rate at maximum resolution |
60 Hz |
| Audio output channels |
2.0 channels |
| Mini DisplayPorts quantity |
1 |
| Design |
|---|
| Product colour |
White |
| Housing material |
Plastic |
| Integrated USB cable |
Yes |
| USB cable length |
12" (0.306 m) |
| Weight & dimensions |
|---|
| Width |
1.06" (27 mm) |
| Depth |
15.7" (400 mm) |
| Height |
0.63" (16 mm) |
| Weight |
0.988 oz (28 g) |
| USB cable length |
12" (0.306 m) |
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.709" (18 mm) |
| Package weight |
1.09 oz (31 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Packaging data |
|---|
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.709" (18 mm) |
| Package weight |
1.09 oz (31 g) |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
200 pc(s) |
| Master (outer) case width |
12.8" (325 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
8.27" (210 mm) |
| Harmonized System (HS) code |
84733020 |
