8 GB, GDDR6, 128-bit, PCI-Express 4.0, 3xDisplayPort, HDMI, 2.6 slot, RGB
Key Features
- Axial-tech Fan Design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages
- Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles sans software
- Auto-Extreme Technology uses automation to enhance reliability
- A vented backplate prevents hot air from recirculating through the cooling array
Description
TAKE FLIGHTThe ROG Strix Radeon™ RX 6600 XT amps Full HD frame rates to meet the demands of the latest high-speed displays. Dual Axial-tech fans efficiently blast air through a large heatsink to keep the GPU chilled, and top-shelf capacitors, chokes, and MOSFETs deliver the perfect amount of clean power. A host of creature comforts, including a Dual BIOS switch, 0dB mode, and metal backplate up the ante to make this beast the ideal choice for your next gaming rig.
FANS

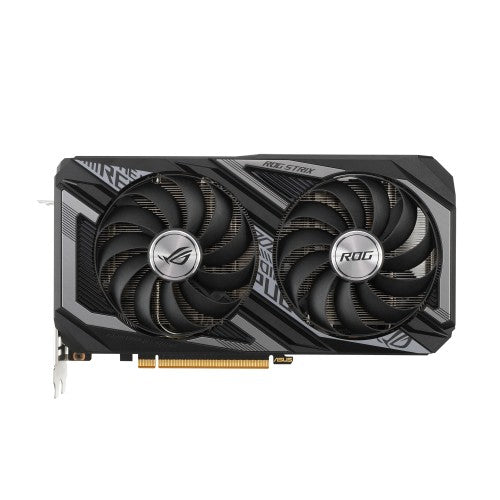

DYNAMIC DUOBoth Axial-tech fans feature half-width barrier rings to increase airflow through the cooling array.
QUIET CUNNINGFans start spinning when the GPU temperature hits 60 Celsius and shut off when temps drop below 52 Celsius, helping to reduce noise when the system is idling or under light load.
DESIGN
FIERCE SHROUDA striking shroud with metal accents mirrors the design aesthetic of ROG and ROG Strix motherboards. Textured accents in a greyscale colorway blend seamlessly into subtle builds or make a striking impact while the card is vertically mounted and lit by chassis LEDs.

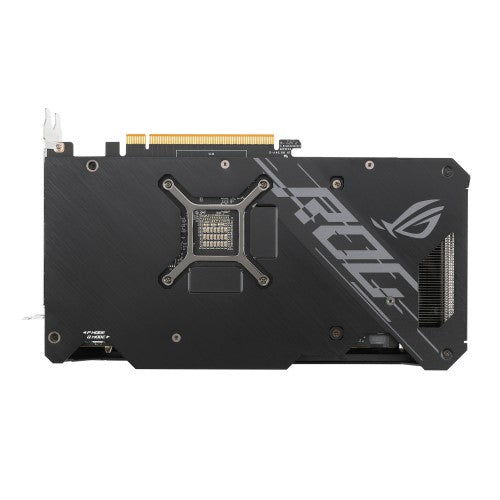

ARMORED UNDERSIDEThe underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual BIOS switch allows customization of the card’s default performance profile without software.

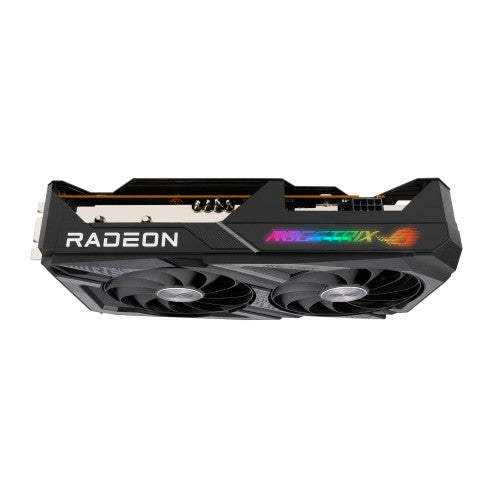

AURA SYNCThe ROG Strix Radeon™ RX 6600 XT features Aura RGB lighting on the side of the card. Aura Sync software connects compatible products for a completely customized lightning setup. You can sync to music, change color based on temperature, or select from a large number of patterns and static options. Look out for the Aura Sync logo when you're picking parts for your build.
SOFTWARE
GPU TWEAK IIThe ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
RADEON SOFTWAREThe latest Radeon™ Software unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
Specifications
| Processor |
|---|
| Graphics processor family |
AMD |
| Stream processors |
2048 |
| Parallel processing technology support |
Crossfire |
| Maximum displays per videocard |
4 |
| CUDA |
No |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Radeon RX 6600 XT |
| Processor boost clock speed (OC mode) |
2607 MHz |
| Processor boost clock speed (Gaming mode) |
2428 MHz |
| Memory |
|---|
| Discrete graphics card memory |
8 GB |
| Data transfer rate |
16 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Ports & interfaces |
|---|
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| DisplayPort version |
1.4a |
| DisplayPorts quantity |
3 |
| Interface type |
PCI Express 4.0 |
| Video |
|---|
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDMI version |
2.1 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| PhysX |
No |
| Performance |
|---|
| AMD FreeSync |
Yes |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| PhysX |
No |
| Design |
|---|
| Number of fans |
2 fan(s) |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Cooling type |
Active |
| Form factor |
Full-Height/Half-Length (FH/HL) |
| Product colour |
Black, Stainless steel |
| Number of slots |
2.6 |
| Cooling technology |
ASUS Axial-tech |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
500 W |
| Weight & dimensions |
|---|
| Number of slots |
2.6 |
| Weight |
30 oz (850 g) |
| Height |
5.28" (134 mm) |
| Depth |
2.05" (52 mm) |
| Technical details |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Half-Length (FH/HL) |
| Product colour |
Black, Stainless steel |
| TV tuner integrated |
No |
| Harmonized System (HS) code |
84733020 |
| System requirements |
|---|
| Minimum system power supply |
500 W |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
3.48" (88.5 mm) |
| Package height |
9.17" (233 mm) |
| Package depth |
15.9" (405 mm) |
| Package weight |
3.42 lbs (1.55 kg) |
| Manual |
Yes |
| Packaging content |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
