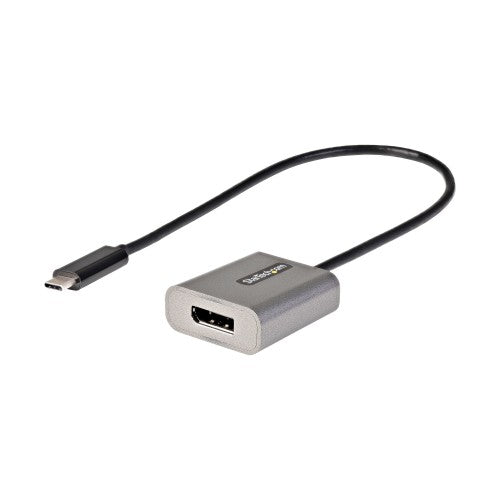

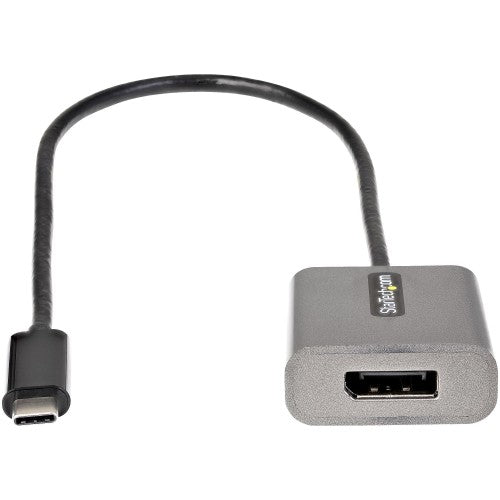

StarTech.com USB C to DisplayPort Adapter - 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter Dongle - USB Type-C to DP Monitor Video Converter - Works w/Thunderbolt 3 - w/12" Long Attached Cable (CDP2DPEC)
Key Features
- HIGH PERFORMANCE: USB C to DisplayPort 1.4 adapter connects a single DP display supporting up to 8K 60Hz with DSC (8K 30Hz without DSC) & 4K 60Hz UHD (3840x2160) / DP Alt Mode / HBR3 / 32.4Gbps / 2ch Audio / HDCP 2.2/1.4 / Backward compatible w/ 1080p
- EXTRA LONG CABLE: USB-C to DisplayPort display adapter with 12"" (30cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro & laptops on risers stands / Compact, portable design
- DEVICE COMPATIBILITY: Works w/ Dell XPS, Precision, Latitude, Lenovo ThinkPad X1 Carbon, Extreme, Surface Laptop 3, Pro 7, MacBook Pro/Air (Intel Processor & M1 Chip), HP EliteBook, Chromebook / Requires Intel 11th Gen w/DSC (or later) for DP 1.4 8K 60Hz
- DISPLAY COMPATIBILITY: USBC to DP external video adapter/converter has been tested for peak performance at 8K/4K 60Hz on a range of DP monitors incl. brands like Dell UltraSharp, Samsung, Asus ProArt, Acer & LG / Supports ultrawide displays (3440x1440)
- EASY TO USE: USB-C to DP adapter dongle supports driverless setup and is OS independent; Works w/any USB Type-C (DisplayPort over USB-C) or Thunderbolt 3 (TB3) device / Recommend using a StarTech.com DisplayPort 1.4 cable (DP14MM2M) to support DSC 8K 60Hz
Description
Extended Cable | DP 1.4 | HBR3 | Thunderbolt 3 Compatible

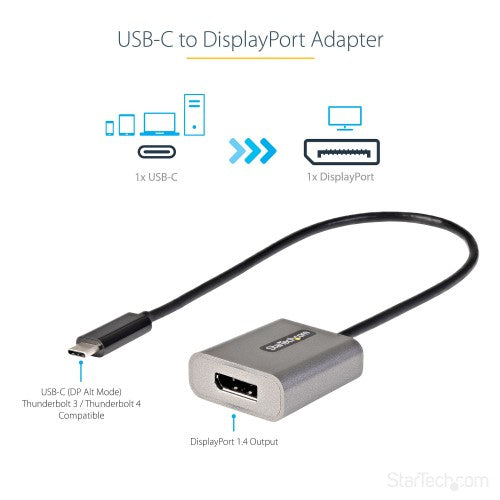

This USB-C™ to DisplayPort™ adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.
Extended Cable Length
This USB C adapter is equipped with an extra-long 12" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.
Ultra HD 4K & 8K Resolution
The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.
With this adapter, you can also achieve an output resolution of up to 7680x4320 at 60Hz (with a laptop supporting DP 1.4 and DSC) or 7680x4320 at 30Hz (without DSC), which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.

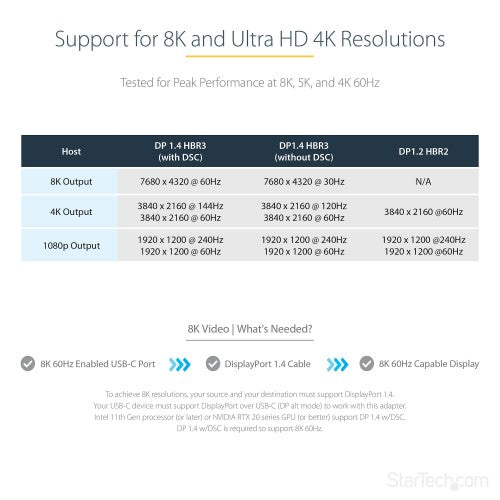

Host
DP 1.4 HBR3 (with DSC)
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
8K Output
7680x4320 @ 60Hz
7680x4320 @ 30Hz
N/A
4K Output
3840x2160 @ 60Hz
3840x2160 @ 60Hz
3480x2160 @ 60Hz
1080p Output
1920x1200 @ 60Hz
1920x1200 @ 60Hz
1920x1200 @ 60Hz
Ultimate Portability
This USB Type-C video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.
The CDP2DPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4
• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
The StarTech.com Advantage
Specifications
| Performance |
|---|
| USB connector form factor |
Straight |
| Chipset |
VL103 |
| USB connector type |
USB Type-C |
| USB connector gender |
Male |
| Data transfer rate (max) |
32.4 Gbit/s |
| DVI output |
No |
| HDMI output |
No |
| DisplayPort output |
Yes |
| Number of displays supported |
1 |
| HDCP |
Yes |
| DisplayPort version |
1.4 |
| Maximum resolution |
7680 x 4320 pixels |
| Refresh rate at maximum resolution |
60 Hz |
| Audio output channels |
2.0 channels |
| DisplayPorts quantity |
1 |
| Design |
|---|
| Product colour |
Black, Gray |
| Housing material |
Plastic |
| Integrated USB cable |
Yes |
| USB cable length |
11.8" (0.3 m) |
| Weight & dimensions |
|---|
| Width |
1.5" (38 mm) |
| Depth |
15.4" (390 mm) |
| Height |
0.591" (15 mm) |
| Weight |
0.917 oz (26 g) |
| USB cable length |
11.8" (0.3 m) |
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.63" (16 mm) |
| Package weight |
1.13 oz (32 g) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Packaging data |
|---|
| Package width |
4.92" (125 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
0.63" (16 mm) |
| Package weight |
1.13 oz (32 g) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733020 |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
200 pc(s) |
| Master (outer) case width |
13" (330 mm) |
| Master (outer) case length |
19.7" (500 mm) |
| Master (outer) case height |
8.66" (220 mm) |
| Harmonized System (HS) code |
84733020 |
