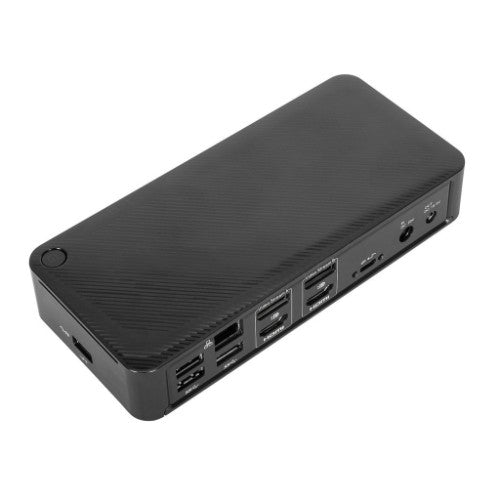

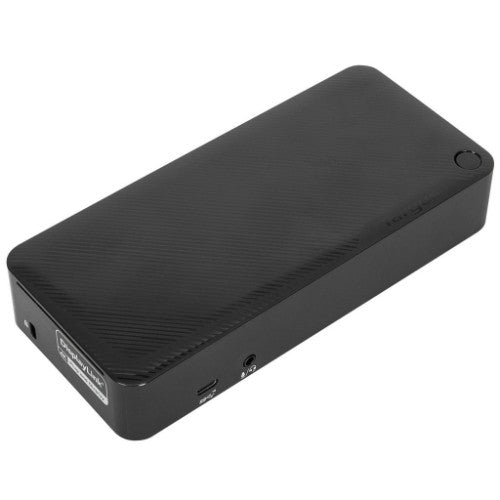

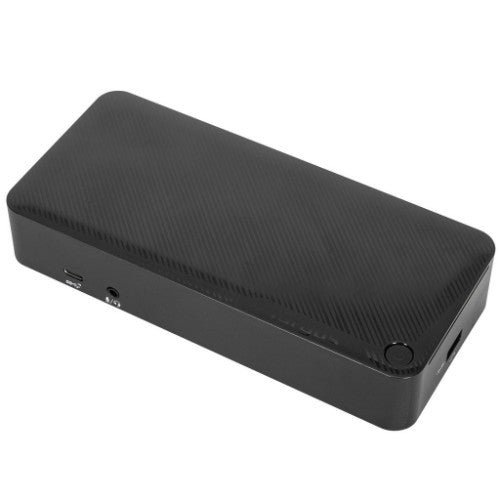

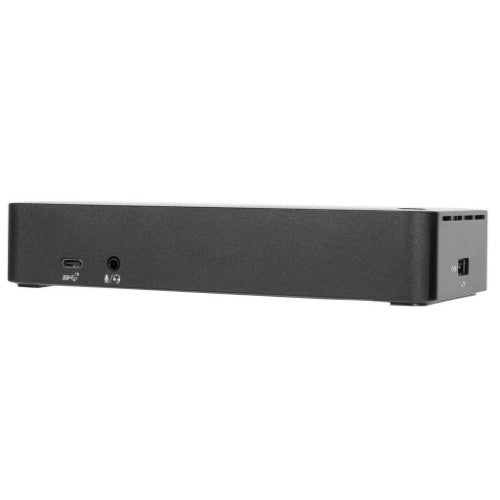

2 x HDMI, 2 x DisplayPort, 4 x USB-A, USB-C, Audio Ports, Black, 100 W
Key Features
- Supports single and dual 4K UHD @ 60 Hz video via two DisplayPort™ 1.2a ports or HDMI 2.0 ports
- Power Delivery 3.0 up to 100W for USB-C hosts
- 1 USB 3.2 Gen 2 Type-C (10 Gbps) port
- 4 USB 3.2 Gen 1 Type-A ports (1 fast charging)
- 1 Gigabit Ethernet port
- 1 3.5mm combo Audio In/Out port

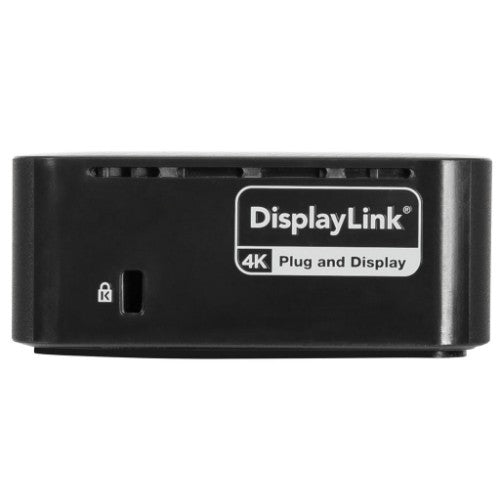

- Integrated lock slot accommodates standard security locks to safeguard equipment

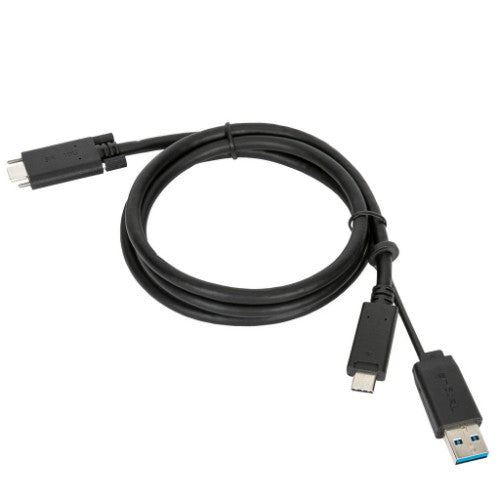

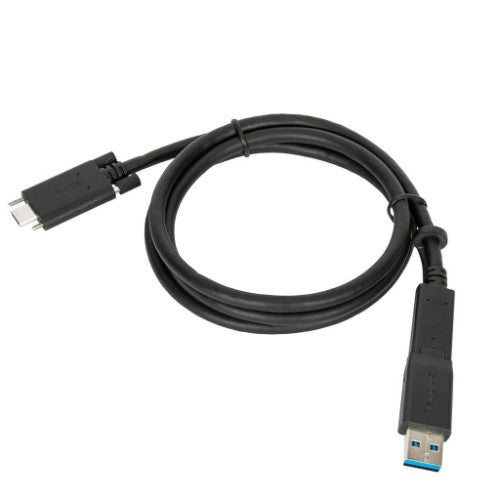

- 1M USB-C detachable host cable (C/M to C/M) with (C/F to A/M) tethered adapter
- Compatible with Targus VESA® Mounting Bracket (ACX003GLZ, sold separately)
Description
Expand your workstation and connect to virtually any laptop with the Universal USB-C® DV4K Docking Station with 100W Power. Designed to support and power a wide variety of USB-C laptops and operating systems, including Windows®, macOS®, Android™, Chrome OS™, and Ubuntu®, this patented dock packs all of the ports and power you need.
Enjoy sharp 4K video while supporting a connection up to two monitors with its two HDMI and two DisplayPort™ connections. Plus connect all your favorite accessories – like a mouse, keyboard, hard drive, and more – with a combination of USB-A (4x USB 3.2 Gen 1 Type-A ports) and USB-C (1x 3.2 Gen 2 Type-C), plus Ethernet and audio ports.
Designed for the modern workstation, the dock comes equipped with a VESA® bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.
Supports Dual DisplayPort™ and HDMI Monitors
The USB-C® Universal DV4K Docking Station with 100W Power is Thunderbolt™ 3 compatible, but that’s only the beginning. Enjoy two DisplayPort™ or two HDMI ports (or a mix of the two) with your dual display and create a picture-perfect image at 4K Ultra HD. Compare photos, documents, spreadsheets for work, or browse email with ease from screen to screen. Enjoy unbeatable compatibility all in one place using a single docking station with power.
All About the Ports
With one USB 3.2 Gen 2 Type-C port and four USB 3.2 Gen 1 Type-A ports, it’s simple to connect the latest keyboards, exterior drives, and other peripherals to customize your workspace experience. The dock also includes a fast-charging port for charging your smartphone, tablet, or other devices.
Innovative Design
Compact and sleek, this patented dock is a sure fit for shrinking desktops and tight spaces. The dock is also equipped with a VESA® bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ – sold separately) to hold your dock behind your display for even greater space savings.
Enterprise Software Suite: A Targus Exclusive
Enhance security and improve user experience with the Targus Enterprise Software Suite for DOCK182USZ.
- Wi-Fi Auto Switch: auto enables/disables Wi-Fi functionality when the dock’s Ethernet connection is active, reducing unnecessary network traffic and enabling faster connection speeds.
- MAC Address Cloning: auto replaces the MAC address of the connected Targus Ethernet network adapter with any (Wired Ethernet, Wireless Ethernet, Bluetooth) MAC address of the local host, supporting device-based authentication methods.
- Ghost Device Removal: purges older, latent Targus docking station devices from the local registry preventing registry bloat.
- Targus A/V Configuration Utility: restores audio configuration, icon, and first-level application window’s positions to external monitors when re-connecting to a previously used Targus docking station.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
1 |
| DC-in jack |
Yes |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| DisplayPort version |
1.2a |
| Network |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Hub interfaces |
3.5mm, DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C |
| Technical details |
|---|
| Product colour |
Black |
| Power |
|---|
| Output voltage |
20 V |
| Power supply |
100 W |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
Android |
| Weight & dimensions |
|---|
| Weight |
12.2 oz (344.7 g) |
| Width |
7.06" (179.3 mm) |
| Depth |
3.25" (82.5 mm) |
| Height |
1.25" (31.8 mm) |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB |
| Quantity per pack |
1 pc(s) |
