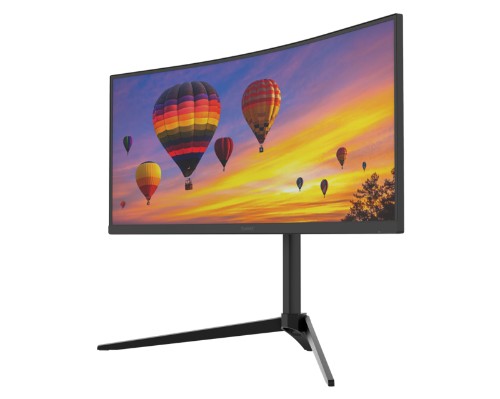

34” Ultrawide 21:9 Curved QHD, 3440 x 1440 WQHD, 300 cd/m², USB Type C (DisplayPort Alt Mode), DisplayPort, HDMI
Key Features
- 34" Quad HD resolution (3440x1440) LCD monitor
- 21:9 aspect ratio,1500R curve with tilt and swivel
- Built-in USB hub and TrueMedia™ speakers
- USB Type-C, DisplayPort, HDMI® inputs
Description
The Planar® PZN3410Q is a 34” Ultrawide 21:9 Curved QHD USB Type - C Docking monitor. The integrated docking station provides a simple and easy way to connect your PC/laptop to the monitor. A single Type C cable provides audio, video, data, network connectivity via the gigabit Ethernet port, and power delivery up to 65 watts. The Planar PZN3410Q suits nicely into education, home, office or healthcare applications.
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
300 cd/m² |
| Screen shape |
Curved |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
21:9 |
| Maximum refresh rate |
100 Hz |
| HD type |
Wide Quad HD |
| Display technology |
LCD |
| Contrast ratio (typical) |
4000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.00912 x 0.00912" (0.232 x 0.232 mm) |
| Display resolution |
3440 x 1440 pixels |
| Response time |
5 ms |
| Display diagonal |
34" |
| Touchscreen |
No |
| Panel type |
VA |
| Screen curvature rating |
1500R |
| Anti-glare screen |
Yes |
| Management features |
|---|
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Multi |
| Performance |
|---|
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Flicker-free technology |
Yes |
| Design |
|---|
| Product colour |
Black |
| Ports & interfaces |
|---|
| Built-in USB hub |
No |
| Headphone out |
Yes |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| HDMI |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
65 W |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Ethernet LAN |
Yes |
| Technical details |
|---|
| Height (without stand) |
14.4" (365.8 mm) |
| Depth (without stand) |
4.12" (104.6 mm) |
| Width (without stand) |
31.9" (809.3 mm) |
| RJ-45 ports quantity |
1 |
| Cable lock slot |
Yes |
| HDMI |
Yes |
| Product colour |
Black |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Power supply type |
Internal |
| Weight (with stand) |
18.1 lbs (8.2 kg) |
| Touchscreen |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Tilt angle range |
-5 - 21° |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Multi |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Power |
|---|
| Power supply type |
Internal |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.5 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
32 kWh |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Weight & dimensions |
|---|
| Height (without stand) |
14.4" (365.8 mm) |
| Depth (without stand) |
4.12" (104.6 mm) |
| Width (without stand) |
31.9" (809.3 mm) |
| Width (with stand) |
31.9" (809.3 mm) |
| Depth (with stand) |
14.7" (374.2 mm) |
| Height (with stand) |
24.1" (612.4 mm) |
| Weight (with stand) |
18.1 lbs (8.2 kg) |
| Weight (without stand) |
14.6 lbs (6.6 kg) |
| Packaging content |
|---|
| Stand included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB Type-C |
| Packaging data |
|---|
| Stand included |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB Type-C |
| Other features |
|---|
| RJ-45 ports quantity |
1 |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Height (without stand) |
14.4" (365.8 mm) |
| Depth (without stand) |
4.12" (104.6 mm) |
| Width (without stand) |
31.9" (809.3 mm) |
| Quick start guide |
Yes |
| HDMI |
Yes |
| USB Power Delivery up to |
65 W |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| Ethernet LAN |
Yes |
| Touchscreen |
No |
| USB Power Delivery (USB PD) |
Yes |
