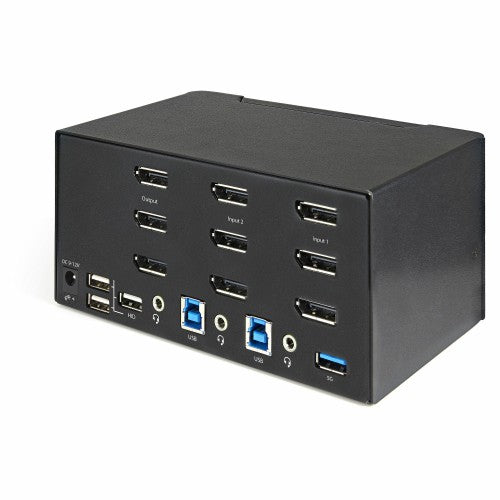

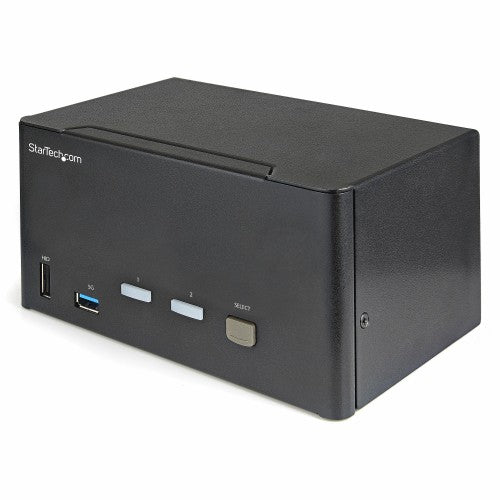

StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA (SV231TDPU34K)
Key Features
- IMPROVE EFFICIENCY: Switch between two computers with three monitors using USB and DisplayPort video from a single keyboard, monitor, and mouse using keyboard hotkeys or push buttons to switch between active computers
- TRIPLE MONITOR 4K 60Hz UHD: DisplayPort triple screen KVM switch supports up to 4K at 60Hz on three monitors for applications like CAD/CAM, video editing and content creation; works with major brands including Dell, HP, and Lenovo
- TECH SPECS: 2 Port KVM / Triple Display / DisplayPort 1.2 / 3840 x 2160 60 Hz / HDCP 2.2 / HDR Support / 2 Port USB 3.0 Hub / 4x USB HID / Hotkey & Push Button / OS Independent / Stereo Analog + Digital Audio / DP + USB Console
- USER-FRIENDLY: KVM switch with compact & durable steel housing features large buttons & an easily accessible front-mounted integrated USB 3.0 port 5Gbps (USB 3.1/3.2 Gen 1) for sharing USB devices between connected computers
- THE STARTECH.COM ADVANTAGE: This KVM is TAA compliant, and StarTech.com offers a 2-year warranty and free lifetime 24/5 multilingual technical support based in North America
Description
KVM with USB | Triple Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

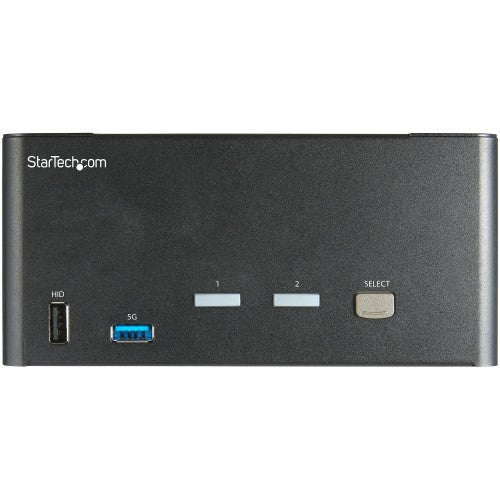

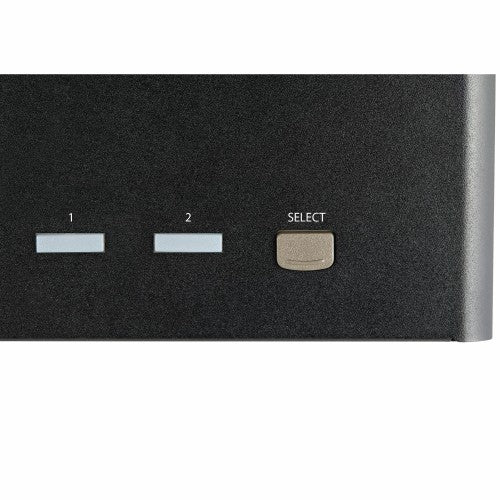

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
4 |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity |
9 |
| DisplayPort version |
1.2 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| DC-in jack |
Yes |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| HDCP |
Yes |
| Performance |
|---|
| Daisy chain |
No |
| HDCP |
Yes |
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| Scan interval |
3,8,15,30 s |
| Audio channels |
5.1 |
| Number of displays supported |
3 |
| Technical details |
|---|
| Product colour |
Black |
| Scan interval |
3,8,15,30 s |
| Push button |
Yes |
| On Screen Display (OSD) |
No |
| LED indicators |
Yes |
| Hot keys |
Yes |
| IP control |
No |
| USB hub |
Yes |
| Design |
|---|
| Mean time between failures (MTBF) |
156000 h |
| Product colour |
Black |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, RoHS, FCC |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
1 A |
| Output current |
3 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, JP, UK, US |
| Output voltage |
12 V |
| Power consumption (typical) |
36 W |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
6.3" (160 mm) |
| Depth |
3.94" (100 mm) |
| Height |
3.86" (98 mm) |
| Weight |
30 oz (850 g) |
| Package width |
9.37" (238 mm) |
| Package depth |
7.44" (189 mm) |
| Package height |
3.58" (91 mm) |
| Packaging data |
|---|
| Package width |
9.37" (238 mm) |
| Package depth |
7.44" (189 mm) |
| Package height |
3.58" (91 mm) |
| Packaging content |
|---|
| Rubber feet |
Yes |
| Quick installation guide |
Yes |
| Certificates |
|---|
| Certification |
CE, RoHS, FCC |
| Other features |
|---|
| IP control |
No |
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
15.6" (397 mm) |
| Master (outer) case length |
12.5" (317 mm) |
| Master (outer) case height |
11" (280 mm) |
| Products per master (outer) case |
6 pc(s) |
| Harmonized System (HS) code |
85176200 |
