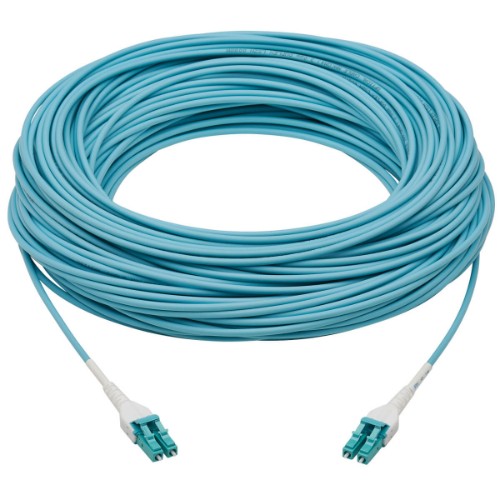

100G Duplex Multimode 50/125 OM4 Armored Fiber Optic Cable (LC/LC Duplex M/M), LSZH, Aqua, 50 m (164 ft.)
Key Features
- OM4-rated cable recommended for 100 Gb speeds up to 50 meters (@ 850 nm)
- Flexible stainless steel tubing protects fiber and helps cable stand up to rigorous use
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Aqua LSZH jacket allows fast, easy identification in a crowded switch or patch panel
Description
100 GbE Cable Supports Higher Bandwidths Needed for Data NetworkingAs the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This duplex multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 50 meters (164 feet) at 850 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.
Armored Cable Provides Great Flexibility and DurabilityThe N821-50M-AQ-AR can be run anywhere and does not need to be in conduit. Built-in flexible stainless steel and robust Aramid yarn protect the optical fibers more effectively than standard fiber optic cables do. The rugged armored tubing allows optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas and moisture. This fiber cable provides low insertion loss and high return loss.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly DowntimeThe OM4-rated cable has an aqua-colored jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Specifications
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH), Polyvinyl chloride (PVC) |
| Fiber mode structure |
Multi-mode |

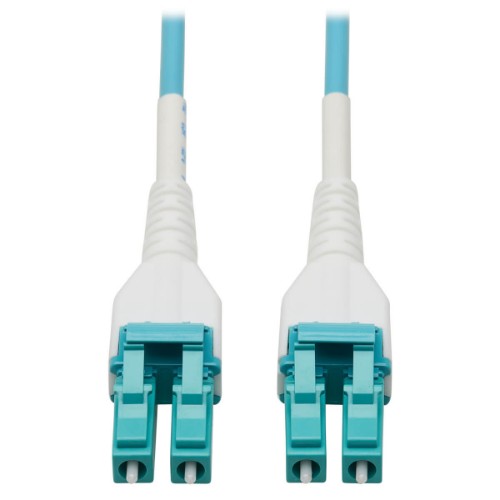

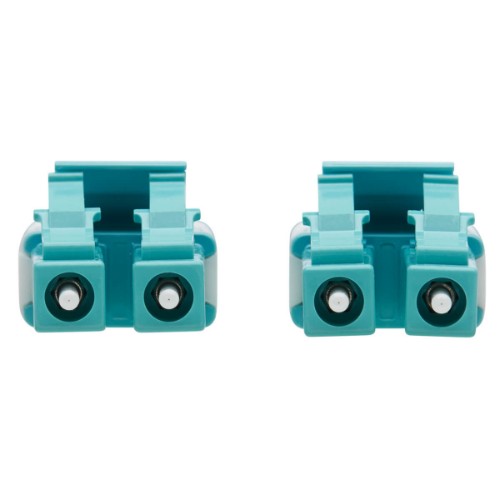

| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
OFNR |
| Cable length |
1968.5" (50 m) |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.2 dB |
| Ethernet interface type |
10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Wavelengths supported |
850,1300 nm |
| Product colour |
Aqua color |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector polish type |
PC |
| Bending radius |
1.18" (3 cm) |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Country of origin |
China |
| Harmonized System (HS) code |
8544.70.0000 |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Certificates |
|---|
| Compliance certificates |
RoHS, REACH |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Bending radius |
1.18" (3 cm) |
| Cable diameter |
0.118" (3 mm) |
| Cable length |
1968.5" (50 m) |
| Package width |
10.5" (266.7 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
12" (304.8 mm) |
| Package weight |
25.4 oz (720 g) |
| Packaging data |
|---|
| Package width |
10.5" (266.7 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
12" (304.8 mm) |
| Package weight |
25.4 oz (720 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH), Polyvinyl chloride (PVC) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
OFNR |
| Cable length |
1968.5" (50 m) |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.2 dB |
| Sustainability compliance |
Yes |
| Master (outer) case GTIN (EAN/UPC) |
10037332264364 |
| Compliance certificates |
RoHS, REACH |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
14.8" (375.9 mm) |
| Master (outer) case length |
12.2" (309.9 mm) |
| Master (outer) case height |
6.1" (154.9 mm) |
| Master (outer) case gross weight |
16.5 lbs (7.48 kg) |
| Products per master (outer) case |
10 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8544.70.0000 |
| Master (outer) case GTIN (EAN/UPC) |
10037332264364 |
