Tripp Lite NFI-U05 network switch Unmanaged Fast Ethernet (10/100) Black

5-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA

Key Features

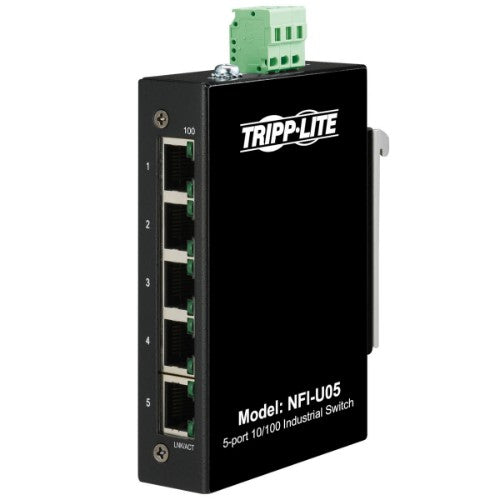

• 5 auto-negotiable 10/100 Mbps RJ45 ports connect devices over a LAN
• Industrial-grade switch supports operating temperature range of -40° to 75°C

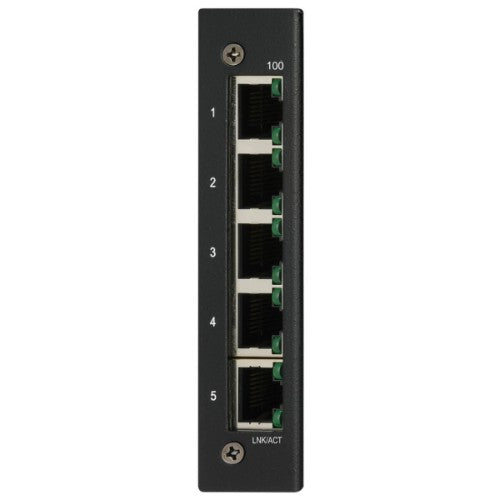

• Easy-to-read LEDs indicate connection and activity status for all 5 Ethernet ports
• Plug-and-play operation with no software or configuration required before use
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Description

5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ruggedized Metal Housing Built to Last in Harsh Environments

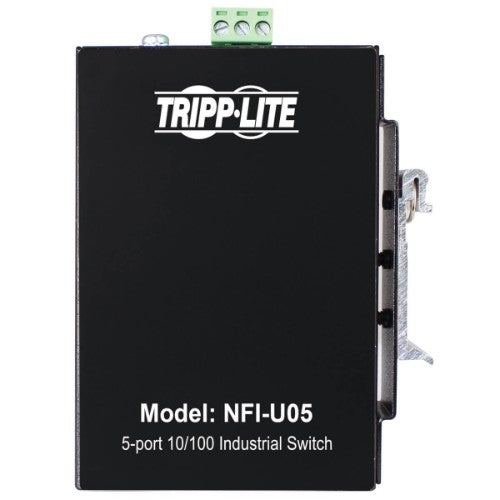

The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers
The NFI-U05 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U05 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Flexible Mounting Options

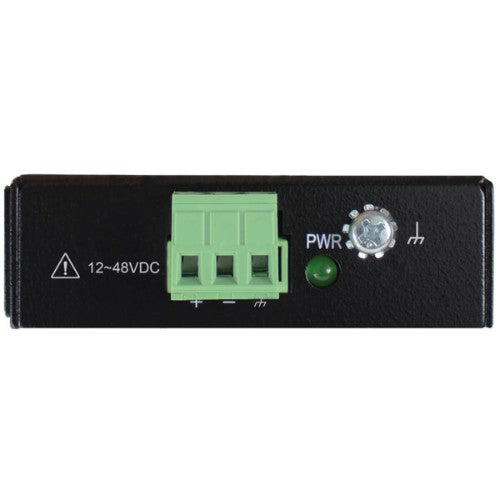

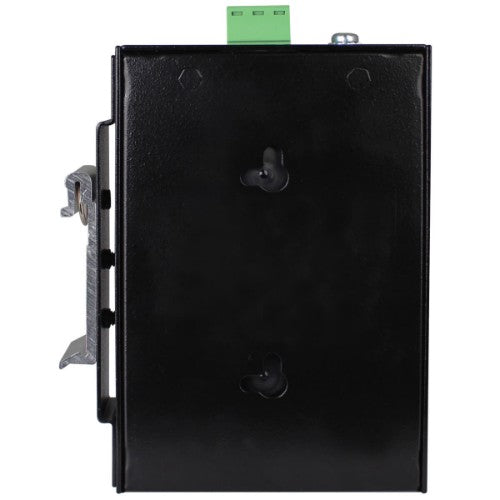

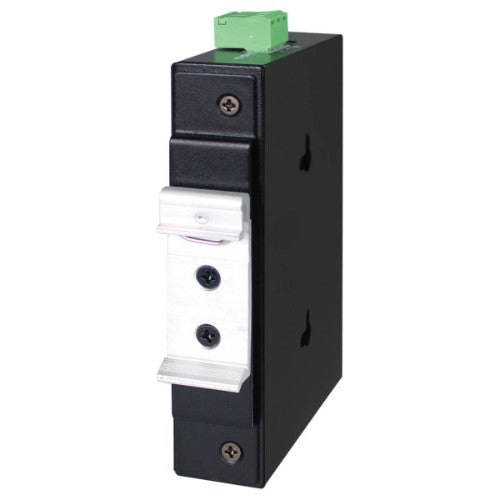

The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12–48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	Terminal block (3-pin)
Network
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Ethernet LAN data rates	100 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Switching capacity	1 Gbit/s
Jumbo frames support	No
Design
Wall mountable	Yes
DIN rail mounting	Yes
Product colour	Black
LED indicators	LAN, Link, Power
Housing material	Aluminum
Rack mounting	No
Country of origin	Taiwan
Power
Power supply included	No
Power consumption (typical)	3 W
Input current	0.15 A
DC input voltage	12 - 48 V
Power connector	Terminal block (3-pin)
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	0.921" (23.4 mm)
Depth	2.91" (73.9 mm)
Height	4.3" (109.2 mm)
Weight	6.7 oz (190 g)
Packaging content
Manual	Yes
Packaging data
Package width	5.04" (128 mm)
Package depth	9.33" (237 mm)
Package height	2.44" (62 mm)
Package weight	10.9 oz (310 g)
Manual	Yes
Sustainability
Sustainability compliance	Yes
Performance
Auto-negotiation	Yes
Harmonized System (HS) code	8517.62.0020
Technical details
Product colour	Black
Housing material	Aluminum
Rack mounting	No
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	10037332264265
Compliance certificates	CE, REACH, RoHS
Certificates
Compliance certificates	CE, REACH, RoHS
Indication
LED indicators	LAN, Link, Power
Other features
Ethernet LAN data rates	100 Mbit/s
Country of origin	Taiwan
Logistics data
Country of origin	Taiwan
Master (outer) case width	10.7" (272 mm)
Master (outer) case length	19.4" (492 mm)
Master (outer) case height	13.5" (342.9 mm)
Master (outer) case gross weight	15.7 lbs (7.14 kg)
Products per master (outer) case	20 pc(s)
Harmonized System (HS) code	8517.62.0020
