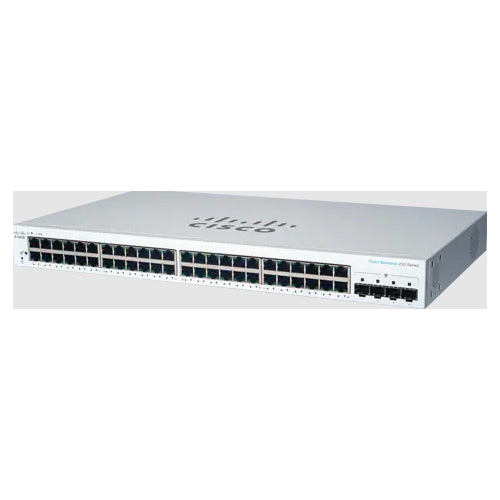

Cisco CBS220-48T-4G Managed L2 Gigabit Ethernet (10/100/1000) 1U White

48x 10/100/1000 ports, 4x Gigabit SFP

Description

From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be priorities, while ongoing management and operations add additional complexity that takes time and resources. Cisco Business is a portfolio of affordable wireless access points, switches, and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring, and lifecycle management of the network. Cisco Business 220 Series Smart Switches The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution. Business Applications With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees. Possible deployment scenarios include: Small office networking: The versatility and affordability of the Cisco Business 220 Series family of switches provide an ideal business-class networking foundation for small businesses with limited IT support and budget. - Wireless connectivity. With PoE+ support, and comprehensive security and Quality of Service (QoS) capabilities, Cisco Business 220 Series switches provide a solid foundation to add business-grade wireless to the network. You can easily deploy Cisco Business wireless access points to increase workforce productivity without worrying about power and throughput. - Unified communications. The Cisco Business 220 Series switches provide QoS features to automatically prioritize delay-sensitive traffic to help you easily deploy an IP-based communication solution on a converged network. PoE+ support can enable IP cameras and videophones to be easily added to your current network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco Business 220 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

Specifications

Management features
Reset button	Yes
Multicast support	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	256
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Virtual LAN features
VLAN support	Yes
Number of VLANs	256
Data transmission
Multicast MAC address table	8192 entries
Number of VLANs	256
Jumbo frames	9216
Packet buffer memory	12 MB
MAC address table	8192 entries
Switching capacity	104 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Forwarding rate	74.38 Mpps
Performance
Packet buffer memory	12 MB
Internal memory	256 MB
Flash memory	64 MB
Firmware upgradeable	Yes
Built-in processor	Yes
Technical details
Form factor	1U
Product colour	White
Firmware upgradeable	Yes
Rack mounting	Yes
Built-in processor	Yes
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Security
Loop protection	Yes
BPDU filtering/protection	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Authentication type	IEEE 802.1x, RADIUS
DHCP features	DHCP client
Multicast features
Multicast MAC address table	8192 entries
Multicast support	Yes
Protocols
Management protocols	SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
Memory
Packet buffer memory	12 MB
Internal memory	256 MB
Flash memory	64 MB
Design
Reset button	Yes
Form factor	1U
Product colour	White
LED indicators	Yes
Rack mounting	Yes
Indication
LED indicators	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	124.54 BTU/h
Weight & dimensions
Width	17.3" (440 mm)
Depth	10.1" (257 mm)
Height	1.73" (44 mm)
Weight	7.01 lbs (3.18 kg)
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
