Description
Description

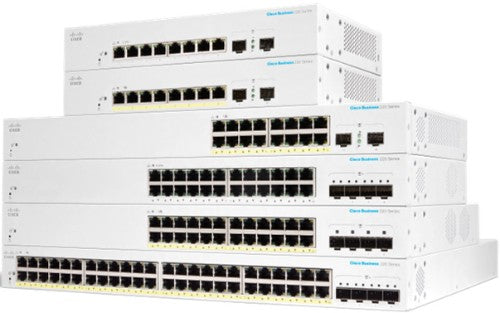

The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees.
Cisco Business 220 Series provides capabilities that help you create business-class networks. These features deliver a solution to simplify the operation, increase uptime, and get your business better connected to employees, customers, and suppliers.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP entries | 256 |
| Networking standards | IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 256 |
| Jumbo frames | 9216 |
| Packet buffer memory | 16 MB |
| MAC address table | 8192 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Optical fiber | |
| Fiber optic connector | SFP+ |
| Performance | |
| Packet buffer memory | 16 MB |
| Mean time between failures (MTBF) | 420.827 h |
| Firmware upgradeable | Yes |
| Technical details | |
| Product colour | White |
| Mean time between failures (MTBF) | 420.827 h |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Access Control List (ACL) rules | 512 |
| SSH/SSL support | Yes |
| Security algorithms | SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 256 |
| DHCP features | DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Memory | |
| Packet buffer memory | 16 MB |
| Design | |
| Reset button | Yes |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 140.58 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 10.1" (257 mm) |
| Height | 1.73" (44 mm) |
| Weight | 7.8 lbs (3.54 kg) |
