SD4855P USB-C 10Gbps Dual Video Driverless Docking Station - 100W PD - DP /HDMI (DFS)
Key Features
- Best For: Windows 7 or above devices with a USB-C port supporting DisplayPort Alt Mode and Power Delivery
- Connection Technology: USB-C
- Power Delivery: Supports up to 100W of Power Delivery (PD 3.0)
- Compatibility: Compatible with Windows 7 or above devices with a USB-C port supporting DisplayPort Alt Mode and Power Delivery
- of Monitors Supported: 2
- Video Ports: 2 x DisplayPort++ ports and 1 x HDMI port
- Maximum Resolution Supported: Single 4K @ 60Hz, Dual 4K @ 60Hz, and Triple 4K at 60Hz when connected to a DP1.4 HBR3 device
- Plug & Play: Plug & play installation, though installation of Kensington DockWorks™ software is recommended for the best connection, performance, and security from your Kensington universal docking station
- System Requirements: Driverless — no firmware or software required for setup
- Optimized for your Windows 11 docking station needs, including support for Snap Layouts and Snap Groups
Description
Designed for SurfaceKensington worked directly with Microsoft to provide professional-level connectivity that looks as good as it functions, so you can work like a pro. Connect with confidence for a seamless dock and charge experience.
Driverless, USB-C Connectivity with 10Gbps Data Transfer Speed and Up to 100W Power Delivery (PD 3.0)No driver installation required to access 10Gbps Data Transfer Speed and up to 100W Power Delivery (PD 3.0). The best docking station for all Windows OS laptops with a USB-C port supporting DisplayPort Alt Mode and Power Delivery.
Numerous Video PortsWith two DisplayPort++ ports and one HDMI port, the user can select the right connections and resolutions for their needs — an optional USB-C Alt Mode can be used in place of one DP++ port. Resolutions supported vary by the device connected (see manual or specifications table for more information).

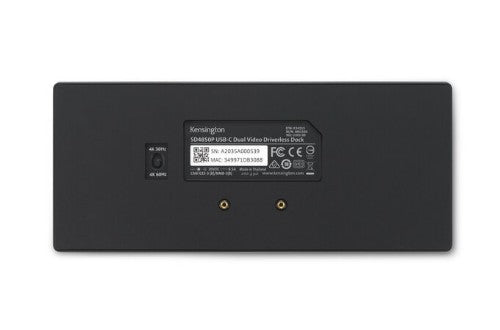

Dynamic Video SupportSupports a minimum resolution of Single 4K @ 30Hz, Dual 1080p @ 60Hz, and Triple 1600x900 @ 60Hz when connected to a DP1.2/HBR2 device and a maximum resolution of Single 4K @ 60Hz, Dual 4K @ 60Hz, and Triple 4K at 60Hz when connected to a DP1.4 HBR3 device. A dynamic 4K switch allows you to toggle between modes, prioritizing resolution over USB, Ethernet, and SD Card speeds. See manual or specifications table for more information.
Universal Windows CompatibilityA windows dock that connects seamlessly to any laptop running Windows 7 and above.

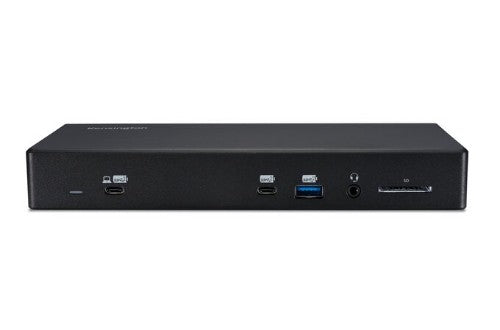

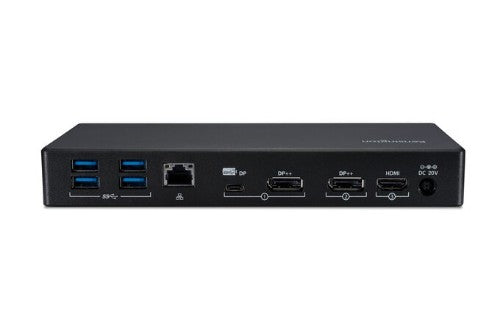

13-in-1 design with 6 USB-portsComplete with 6 USB-ports that give full power to your laptop and devices. Its front side features one USB-C 3.2 Gen2 port up to 5V/3A/10Gbps, one USB-A 3.2 Gen2 port up to 5V/2.4A/10Gbps, a combo audio port, and a UHS II SD 4.0 Memory Card Reader. Its rear features four USB-A 3.2 Gen1 ports up to 5V/0/9A/5Gbps, a Gigabit Ethernet port, and four video ports: two DP++ ports, one HDMI port, and one USB-C port.
UHS II SD 4.0 Memory Card ReaderEliminates the need for additional adapters and accessories to transfer large hi-res photos and video footage at ultra-fast speeds.
Free Kensington DockWorks™ SoftwareDockWorks™ WiFi Auto-Switch guarantees the fastest, most reliable internet connection, while MAC Address ID Pass-Through and Reset and Device Connection Monitoring give IT managers maximum network monitoring and visibility.
Three-Year WarrantyRest assured knowing you’re covered by Kensington.
Designed for Surface, the SD4855P USB-C 10Gbps Dual Video Driverless Docking Station - 100W PD - DP++/HDMI (DFS) is the top-of-the-line USB-C driverless dock. It features a USB-C port supporting DisplayPort Alt Mode and Power Delivery. One connection expands your Surface laptop into a fully powered yet streamlined desktop setup supporting up to Dual 4K via a 13-in-1 design complete with 6 USB-ports.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
2 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| DisplayPort version |
1.4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
4096 x 2160 pixels |
| Number of displays supported |
3 |
| Country of origin |
Thailand |
| Product colour |
Black |
| Card reader integrated |
Yes |
| Brand compatibility |
Microsoft |
| Compatibility |
Surface Go, Surface Go 2, Surface Go 3, Surface Laptop 3, Surface Laptop 4, Surface Laptop 5 (13.5"), Surface Laptop 5 (15"), Surface Laptop Go, Surface Laptop Go 2, Surface Laptop SE, Surface Laptop Studio, Surface Pro 7, Surface Pro 7+, Surface Pro 8, Surface Pro 9, Surface Pro X |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| Data transfer rate |
10 Gbit/s |
| Compatible memory cards |
SD, SDHC |
| Certification |
FCC, IC, CE, RCM, VCCI, BSMI, NOM, CB, RoHS,
ACCO RSL |
| Cable lock slot type |
Kensington |
| HD type |
4K Ultra HD |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Technical details |
|---|
| Product colour |
Black |
| Brand compatibility |
Microsoft |
| Compatibility |
Surface Go, Surface Go 2, Surface Go 3, Surface Laptop 3, Surface Laptop 4, Surface Laptop 5 (13.5"), Surface Laptop 5 (15"), Surface Laptop Go, Surface Laptop Go 2, Surface Laptop SE, Surface Laptop Studio, Surface Pro 7, Surface Pro 7+, Surface Pro 8, Surface Pro 9, Surface Pro X |
| Cable lock slot |
Yes |
| Plug and Play |
Yes |
| Data transfer rate |
10 Gbit/s |
| User guide |
Yes |
| Storage |
|---|
| Card reader integrated |
Yes |
| Compatible memory cards |
SD, SDHC |
| Power |
|---|
| Power source type |
DC |
| Input current |
1.8 A |
| Power consumption (max) |
170 W |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
8.5 A |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-18 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
10.4 oz (294 g) |
| Width |
8.27" (210 mm) |
| Depth |
3.54" (90 mm) |
| Height |
1.23" (31.3 mm) |
| Package weight |
3.09 lbs (1.4 kg) |
| Package width |
9.25" (235 mm) |
| Package depth |
5.87" (149 mm) |
| Package height |
3.58" (91 mm) |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Country of origin |
Thailand |
| Product colour |
Black |
| Cable lock slot |
Yes |
| Certification |
FCC, IC, CE, RCM, VCCI, BSMI, NOM, CB, RoHS,
ACCO RSL |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
3.09 lbs (1.4 kg) |
| Package width |
9.25" (235 mm) |
| Package depth |
5.87" (149 mm) |
| Package height |
3.58" (91 mm) |
| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
USB |
| AC adapter included |
Yes |
| Warranty card |
Yes |
| Quantity per pack |
1 pc(s) |
| Certificates |
|---|
| Certification |
FCC, IC, CE, RCM, VCCI, BSMI, NOM, CB, RoHS,
ACCO RSL |
| Other features |
|---|
| USB ports quantity |
6 |
