RGB LCS, 0.67", 1920 x 1200, WUXGA, 16:10, 2500000:1, Wi-Fi, HDMI, VGA
Key Features
- Up to 5,200 lumens of equal Color and White Brightness1
- Full HD WUXGA; accepts 4K input
- Virtually maintenance-free 20,000-hour laser light source4
- Display from 50" to 500" diagonal (16:10) or ultra wide (16:6)
- Built-in tools for simplified installation
Description

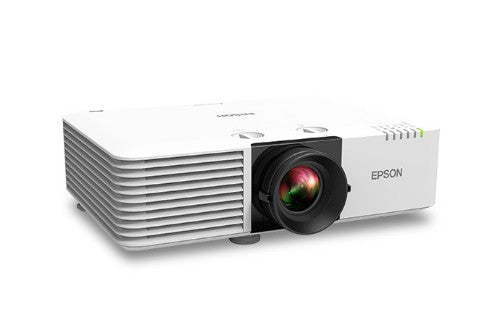

Share bright, easy-to-read displays for meetings, lectures and more with the PowerLite L520U long-throw laser projector. Offering an incredible 5,200 lumens of brightness1, the PowerLite L520U delivers large,true-to-life, Full HD WUXGA images using advanced 3LCD technology. Ideal for business, education and beyond, this versatile projector displays up to 500" diagonal and provides an array of features for engaging, impactful presentations, including split screen capability2 for side-by-side viewing and easy wireless sharing from laptops and smart devices3. A convenient, easy-to-use solution, the PowerLite L520U features a virtually maintenance-free 20,000-hour laser light source4, plus a variety of advanced, built-in tools and software for easy, streamlined installation.
3-chip 3LCD image qualityWith up to 5,200 lumens of equal Color and White Brightness1 for vibrant, rich color
Full HD WUXGA supportNative WUXGA 1920 x 1200 resolution for true-to-life images; accepts 4K signal
Breakthrough laser technologyFeatures a virtually maintenance-free 20,000-hour laser light source
Flexible projectionLightweight, easy-to-install design; can display images from 50" to 500" diagonal in 16:10 or ultra wide 16:6 to cover a large wall
Simplified installationFeatures 360-degree flexibility, 1.6x optical zoom, e-zoom and geometric correction tools such as horizontal and vertical keystone, edge blending, arc correction, Quick Corner® and more
Optional wireless networkingDisplay from PC, Mac®, Chromebook™, iPhone®, iPad® and Android™ mobile devices3; connect with Miracast® through optional wireless LAN

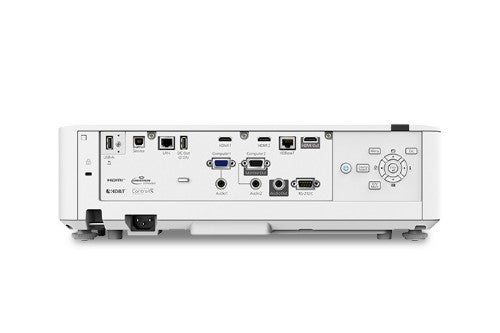

- Variety of connectivity options — HDBaseT, HDMI®, VGA, RJ-45, RS-232 and control management tools
- Remarkable sharpness and detail — with up to 2,500,000:1 dynamic contrast ratio
- Custom brightness and constant brightness modes — to maximize light source life and provide a consistent brightness level
- Remote management and control tools — for easy installation and operation
Specifications
| Projector |
|---|
| Number of colours |
1.07 billion colors |
| Projector native resolution |
WUXGA (1920x1200) |
| Native aspect ratio |
16:10 |
| Supported aspect ratios |
16:10 |
| Screen size compatibility |
50 - 500" |
| Contrast ratio (typical) |
2500000:1 |
| Vertical scan range |
23.98 - 60 Hz |
| Horizontal scan range |
15 - 135 kHz |
| Uniformity |
86% |
| Matrix size |
0.67" |
| Keystone correction, vertical |
-30 - 30° |
| Keystone correction, horizontal |
-30 - 30° |
| Projection technology |
LCOS |
| Projector brightness |
5200 ANSI lumens |
| Light source |
|---|
| Light source type |
Laser/LED hybrid |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Lens system |
|---|
| Zoom capability |
Yes |
| Focus |
Manual |
| Focal length range |
20 - 37.8 mm |
| Horizontal lens shift range |
-20 - 20% |
| Vertical lens shift range |
-50 - 50% |
| Throw ratio |
1.35 - 2.20 |
| Zoom type |
Manual |
| Video |
|---|
| Full HD |
Yes |
| Ports & interfaces |
|---|
| HDMI connector type |
Full-size |
| PC in (D-Sub) |
Yes |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
3 |
| Audio (L/R) in |
2 |
| Audio (L/R) out |
1 |
| Serial interface type |
RS-232C |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
|---|
| Noise level |
31 dB |
| Noise level (economic mode) |
23 dB |
| Screen mirroring |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
10 W |
| Design |
|---|
| Market positioning |
Business |
| Product type |
Standard throw projector |
| Cable lock slot type |
Kensington |
| Product colour |
White |
| Cable lock slot |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source |
AC |
| Power consumption (typical) |
301 W |
| Power consumption (standby) |
2 W |
| Power consumption (economy mode) |
232 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
18.1 lbs (8.21 kg) |
| Width |
17.3" (439.9 mm) |
| Depth |
12" (304 mm) |
| Height |
4.76" (121 mm) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, HDMI |
| Batteries included |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Sustainability certificates |
Good for recycling |
| Compliance certificates |
RoHS |
