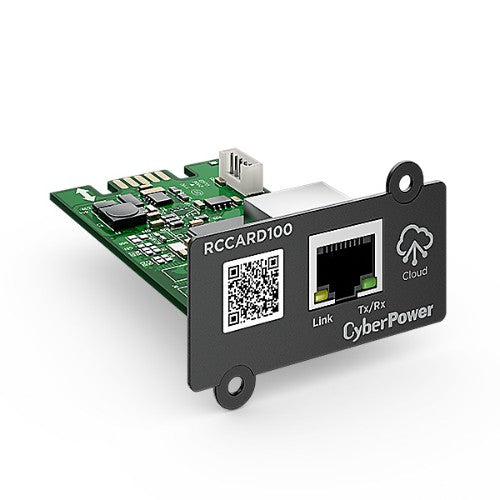

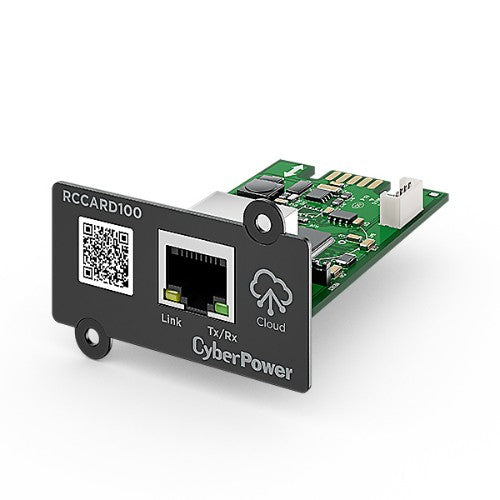

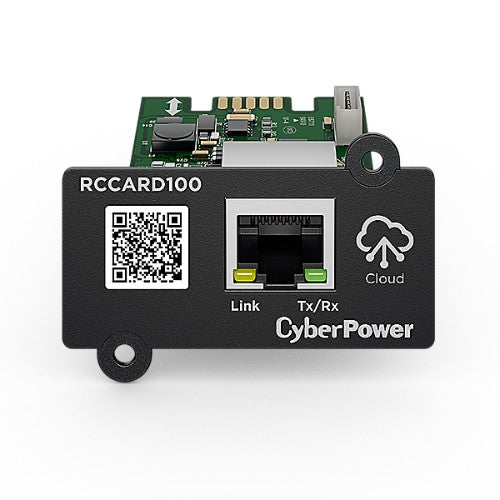

Remote Cloud Card, Fast Ethernet, 1 x RJ45
Key Features
- UPS Management through Cloud
- Plug-and-play Installation
- RoHS Compliant
- QR Code for Quick Setup
- User-upgradeable Firmware
Description
CyberPower RCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.
The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Interface |
Ethernet |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Maximum data transfer rate |
100 Mbit/s |
| Technical details |
|---|
| Product colour |
Black, Green, Metallic |
| Plug and Play |
Yes |
| Country of origin |
China |
| Harmonized System (HS) code |
8473302000 |
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Network |
|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100BaseT(X) |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Maximum data transfer rate |
100 Mbit/s |
| Design |
|---|
| Product colour |
Black, Green, Metallic |
| Certification |
CE, FCC Class B, RoHS |
| Plug and Play |
Yes |
| Internal |
Yes |
| LED indicators |
TX / RX, Link |
| Country of origin |
China |
| Component for |
PC |
| Indication |
|---|
| LED indicators |
TX / RX, Link |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Width |
2.13" (54 mm) |
| Depth |
3.01" (76.5 mm) |
| Height |
1.42" (36.1 mm) |
| Weight |
1.09 oz (31 g) |
| Package width |
6.69" (170 mm) |
| Package depth |
2.36" (60 mm) |
| Package height |
6.5" (165 mm) |
| Package weight |
10.6 oz (300 g) |
| Packaging data |
|---|
| Package width |
6.69" (170 mm) |
| Package depth |
2.36" (60 mm) |
| Package height |
6.5" (165 mm) |
| Package weight |
10.6 oz (300 g) |
| Performance |
|---|
| Plug and Play |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC Class B, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
8473302000 |
| Other features |
|---|
| Harmonized System (HS) code |
8473302000 |
| Country of origin |
China |
