TOUGHAIR 510 CPU Cooler, 500 ~ 2000 RPM, 12V, 58.35 CFM, 2.41 mm-H2O, 23.6 dBA
Description
A single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fan and a newly designed heat sink, guaranteeing its outstanding performance.
Single Tower Dual Fan Design
TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.
Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.
Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

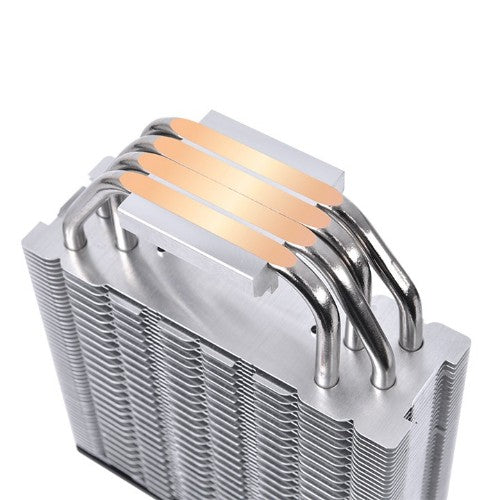

High-Performance U-shape copper heat pipes
4 x Ø6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.
Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:
Intel LGA 1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Fan connector |
4-pin |
| Rotational speed (min) |
500 RPM |
| Rotational speed (max) |
2000 RPM |
| Noise level (high speed) |
23.6 dB |
| Number of heat pipes |
4 |
| Heat pipes diameter |
0.236" (6 mm) |
| Type |
Cooler |
| Fan diameter |
4.72" (12 cm) |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Maximum airflow |
58.35 cfm |
| Maximum air pressure |
2.41 mmH2O |
| Number of fans |
2 fan(s) |
| Mean time between failures (MTBF) |
40000 h |
| Design |
|---|
| Fan connector |
4-pin |
| Number of heat pipes |
4 |
| Number of fans |
2 fan(s) |
| Material |
Aluminum, Cooper |
| Product colour |
Black |
| Technical details |
|---|
| Noise level (high speed) |
23.6 dB |
| Number of heat pipes |
4 |
| Heat pipes diameter |
0.236" (6 mm) |
| Type |
Cooler |
| Fan diameter |
4.72" (12 cm) |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Maximum airflow |
58.35 cfm |
| Maximum air pressure |
2.41 mmH2O |
| Number of fans |
2 fan(s) |
| Material |
Aluminum, Cooper |
| Fan connector |
4-pin |
| Ports & interfaces |
|---|
| Fan connector |
4-pin |
| Power |
|---|
| Rated voltage |
12 V |
| Starting voltage |
6 V |
| Rated current |
0.48 A |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
4.72 x 4.72 x 0.984" (120 x 120 x 25 mm) |
| Heat pipes diameter |
0.236" (6 mm) |
| Width |
3.89" (98.8 mm) |
| Depth |
4.87" (123.6 mm) |
| Height |
6.28" (159.5 mm) |
| Endurance |
|---|
| Mean time between failures (MTBF) |
40000 h |
| Other features |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
84733080 |
