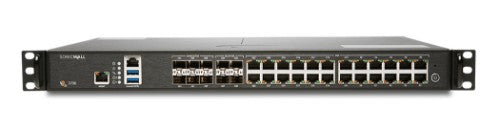

NSA 3700 24-Port Firewall Appliance
Description
Defeating advanced threats requires an advanced firewall solution built for the needs of your business. The SonicWall Network Security appliance (NSa) Mid-Range Firewall is next-generation security designed specifically for businesses of 250 users and up. Work with the confidence of knowing you’re protected against the day-to-day incursions as well as against advanced threats like ransomware, attacks against non-standard ports, and breaches in firewalls, all at the speed of business.
With cloud-based and on-box capabilities like TLS/SSL decryption and inspection, application intelligence and control, secure SD-WAN, real-time visualization, and WLAN management, SonicWall provides flexible, fast and cost-effective security to keep the threats out and your business thriving.
Specifications
| Technical details |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Harmonized System (HS) code |
85176990 |
| Data transmission |
|---|
| HTTPS encryption |
Yes |
| VoIP |
Yes |
| Network |
|---|
| Quality of Service (QoS) support |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Security |
|---|
| Security algorithms |
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1 |
| Protocols |
|---|
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Routing protocols |
BGP, BGP4, OSPF, RIP, RIP-1, RIP-2 |
| Display |
|---|
| Built-in display |
Yes |
| Management features |
|---|
| LED indicators |
Yes |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| SFP+ module slots quantity |
3 |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
24 |
| Ethernet LAN data rates |
1000,10000 Mbit/s |
| Console port |
RJ-45 |
| Remote management port |
RJ-45 (Gigabit) |
| Number of console ports |
1 |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Built-in display |
Yes |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Weight |
10.1 lbs (4.6 kg) |
| Width |
16.9" (430 mm) |
| Depth |
12.8" (325 mm) |
| Height |
1.77" (45 mm) |
