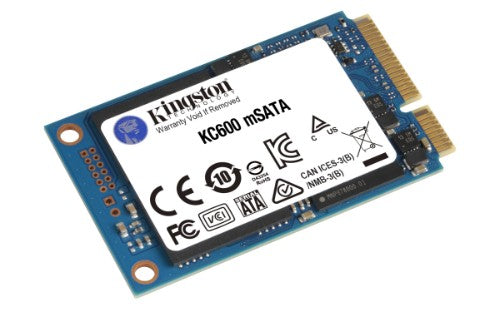

Kingston Technology KC600 256 GB mSATA Serial ATA III 3D TLC

256G SSD KC600 SATA3 mSATA

Key Features

• Remarkable performance
• Features the latest 3D TLC NAND technology
• Supports a full security suite (TCG Opal, AES 256-bit, eDrive)
• Available in range of full capacities

Description

Kingston’s KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot, loading and transfer times. It comes in both 2.5" and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption, TCG Opal and eDrive. It features read/write speeds of up to 550/520MB/s* to efficiently store your data up to 2TB**. It’s available in a bundle kit that provides everything you need for a smooth and easy desktop and notebook installation and upgrade.

Remarkable performance
Using the latest 3D TLC NAND technology, it enables read/write speeds of up to 550/520MB/s.*

Full-security suite
Protect and secure your data with Kingston’s self-encrypting drive.

Easy installation/upgrade
KC600 is available in an upgrade bundle kit that has everything you need to install your drive easily.

Multiple capacities
KC600 is available in a range of full capacities from 256GB to 2TB.**

Specifications

Hard drive
SSD capacity	256 GB
Memory type	3D TLC
Data transmission
Read speed	550 MB/s
Write speed	500 MB/s
Random write (4KB)	80000 IOPS
Random read (4KB)	90000 IOPS
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES-XTS
Endurance
Mean time between failures (MTBF)	1000000 h
Features
Interface	Serial ATA III
Component for	PC/Laptop
Controller type	SMI SM2259
NVMe	No
TBW rating	150
SSD capacity	256 GB
Security algorithms	256-bit AES-XTS
Read speed	550 MB/s
Write speed	500 MB/s
Memory type	3D TLC
Random write (4KB)	80000 IOPS
Random read (4KB)	90000 IOPS
Mean time between failures (MTBF)	1000000 h
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
SSD form factor	mSATA
Harmonized System (HS) code	84717070
Power
Power consumption (average)	0.1 W
Power consumption (write)	2.4 W
Power consumption (read)	1.2 W
Power consumption (idle)	0.08 W
Performance
Interface	Serial ATA III
Component for	PC/Laptop
Controller type	SMI SM2259
NVMe	No
TBW rating	150
SSD capacity	256 GB
Security algorithms	256-bit AES-XTS
Read speed	550 MB/s
Write speed	500 MB/s
Memory type	3D TLC
Random write (4KB)	80000 IOPS
Random read (4KB)	90000 IOPS
Mean time between failures (MTBF)	1000000 h
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Design
Component for	PC/Laptop
SSD form factor	mSATA
Weight & dimensions
Width	1.18" (29.9 mm)
Weight	0.212 oz (6 g)
Height	0.191" (4.85 mm)
Depth	2" (50.8 mm)
Package width	1.8" (45.7 mm)
Package depth	0.3" (7.62 mm)
Package height	3.75" (95.2 mm)
Package weight	0.492 oz (13.9 g)
Packaging data
Package width	1.8" (45.7 mm)
Package depth	0.3" (7.62 mm)
Package height	3.75" (95.2 mm)
Package weight	0.492 oz (13.9 g)
Master (outer) case width	4.13" (104.8 mm)
Master (outer) case length	8.13" (206.4 mm)
Master (outer) case height	2.13" (54 mm)
Master (outer) case gross weight	14.7 oz (417 g)
Products per master (outer) case	25 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
Hardware encryption	Yes
Country of origin	China
SSD form factor	mSATA
Logistics data
Master (outer) case width	4.13" (104.8 mm)
Master (outer) case length	8.13" (206.4 mm)
Master (outer) case height	2.13" (54 mm)
Master (outer) case gross weight	14.7 oz (417 g)
Products per master (outer) case	25 pc(s)
Country of origin	China
Harmonized System (HS) code	84717070
Other features
Country of origin	China
