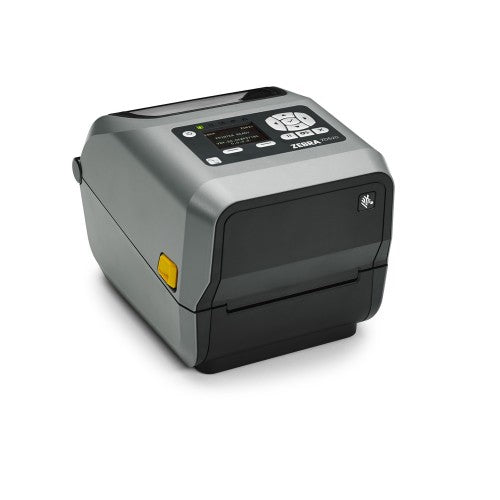

ZD620 Desktop Printer, Thermal Transfer, 300 dpi, with BTLE, USB, USB Host, Serial & Ethernet
Key Features
- The ZD620t delivers best-in-class print speeds — 8ips @ 203 dpi and 6ips @ 300 dpi — for maximum printer throughput and productivity
- New at-a-glance five LED status icons take the guesswork out of printer status
- Configuration is a snap with the optional color LCD and 1-button user interface
- You can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device. Wireless models include fast 802.11ac Wi-Fi and Bluetooth 4.1
- Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration
Description
MAXIMUM DIRECT THERMAL PRINT QUALITY AND MANAGEABILITYWhen print quality, productivity, application flexibility and management simplicity matter, the ZD620 delivers. This premium desktop direct thermal printer brings advanced industrial printing quality to a compact desktop printer, offering the fastest speeds and best quality in its class.
Specifications
| Print quality |
|---|
| Maximum resolution |
300 x 300 DPI |
| Maximum printing width |
4.65" (11.8 cm) |
| Printing |
|---|
| Colour |
No |
| Print speed |
203 mm/sec |
| Maximum resolution |
300 x 300 DPI |
| Maximum printing width |
4.65" (11.8 cm) |
| Print technology |
Thermal transfer |
| Design |
|---|
| LED indicators |
Yes |
| Housing material |
Plastic |
| Display |
LCD |
| Product colour |
Gray |
| Certification |
CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, INMetro, BIS, NOM |
| Display |
|---|
| Display |
LCD |
| Network |
|---|
| Ethernet LAN |
Yes |
| Memory |
|---|
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Paper handling |
|---|
| Media thickness |
0.08 - 0.1905 mm |
| Maximum roll diameter |
5" (12.7 cm) |
| Maximum label width |
4.65" (11.8 cm) |
| Maximum label length |
39015.7" (991 m) |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
2 |
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| USB port |
Yes |
| Performance |
|---|
| Built-in barcodes |
AZTECCODE, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Internal memory |
256 MB |
| Flash memory |
512 MB |
| Certification |
CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, INMetro, BIS, NOM |
| Page description languages |
EPL, ZPL |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50-60 Hz |
| Technical details |
|---|
| Product colour |
Gray |
| Built-in barcodes |
AZTECCODE, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Maximum label width |
4.65" (11.8 cm) |
| Maximum label length |
39015.7" (991 m) |
| LED indicators |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Certificates |
|---|
| Certification |
CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, INMetro, BIS, NOM |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
4.4 - 41 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
7.95" (202 mm) |
| Depth |
10.5" (267 mm) |
| Height |
7.56" (192 mm) |
| Weight |
5.51 lbs (2.5 kg) |
| Other features |
|---|
| LED indicators |
Yes |
