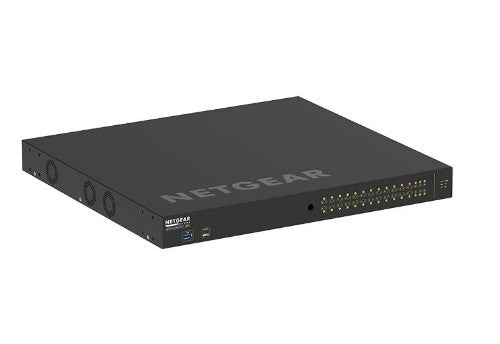

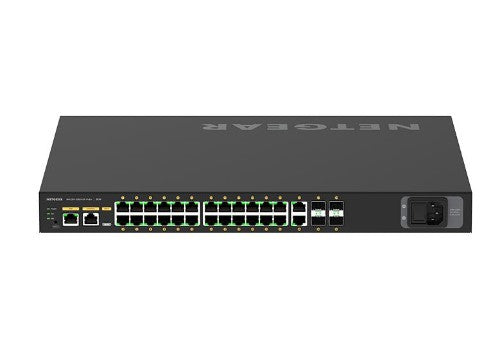

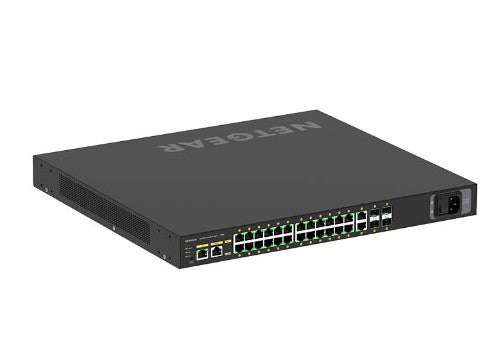

M4250-26G4XF-PoE+ (GSM4230PX) 24x1G PoE+ 480W 2x1G and 4xSFP+ Managed Switch
Description
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
Groundbreaking AV GUIA simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an InstantNETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet DesignLess fan noise, and mounting ears included for under-table or wall mounting.
Automatic ConfigurationAuto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3/L4 |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| Virtual LAN features |
Private VLAN |
| Data transmission |
|---|
| Number of VLANs |
4000 |
| Jumbo frames |
12000 |
| Throughput |
98.21 Mpps |
| Latency (1 Gbps) |
2.29 µs |
| Latency (10 Gbps) |
0.83 µs |
| Packet buffer memory |
16 MB |
| MAC address table |
16000 entries |
| Switching capacity |
132 Gbit/s |
| Jumbo frames support |
Yes |
| Performance |
|---|
| Packet buffer memory |
16 MB |
| Noise level |
42 dB |
| Built-in processor |
Yes |
| Processor model |
ARM Cortex-A57 |
| Fanless |
Yes |
| Technical details |
|---|
| Product colour |
Black |
| Noise level |
42 dB |
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
26 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity |
1 |
| Network |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| Virtual LAN features |
Private VLAN |
| IPv6 routes |
128 |
| IPv4 routes |
512 |
| Multicast features |
|---|
| Multicast support |
Yes |
| Memory |
|---|
| Packet buffer memory |
16 MB |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Power |
|---|
| Power source |
PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Total Power over Ethernet (PoE) budget |
430 W |
| Power over Ethernet (PoE) |
Yes |
| Weight & dimensions |
|---|
| Width |
17.3" (440 mm) |
| Depth |
15.7" (400 mm) |
| Height |
1.7" (43.2 mm) |
| Weight |
12 lbs (5.45 kg) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC, LAN (RJ-45), USB Type-C |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC, LAN (RJ-45), USB Type-C |
