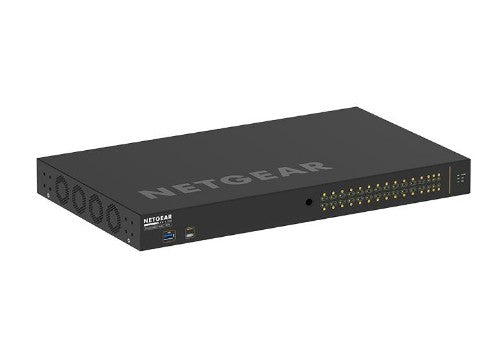

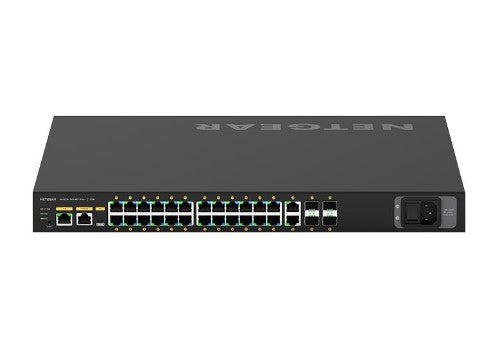

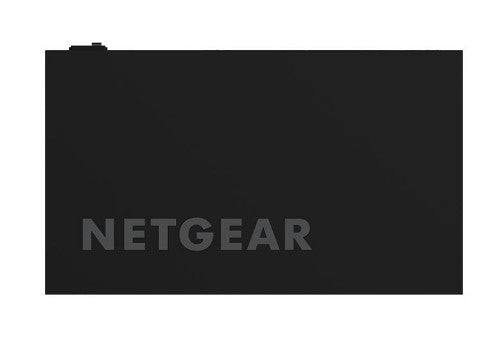

M4250-26G4F-PoE+ (GSM4230P) 24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch
Key Features
- Pre-configured for out-of-the-box use
- Video profiles built-in
- Dedicated AV web-based GUI interface
- Unique Automatic Configuration
- Profiles for common audio protocols
Description
Pre-configured for out-of-the-box useNETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interfaceUnique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocolsQuickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-inSpecial profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic ConfigurationAuto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Multi-switch audio or single-switch video deployments24x1G PoE+ with 300W PoE budget with 2x1G additional ports and 4xSFP 1G fiber uplinks
Layer 2/Layer 3 SwitchingCommon Layer 2 and Layer 3 switching engine across all M4250 models
Control methods aboundBuilt-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
Standard network featuresFeature set includes static, RIP and PIM routing, DHCP Server and PTPv2
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3/L4 |
| Network |
|---|
| IGMP snooping |
Yes |
| IPv6 multicast entries |
128 |
| IPv4 multicast entries |
512 |
| Networking standards |
IEEE 802.3af, IEEE 802.3bt |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Number of VLANs |
4000 |
| Virtual LAN features |
Private VLAN |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| Virtual LAN features |
Private VLAN |
| Data transmission |
|---|
| Number of VLANs |
4000 |
| Jumbo frames |
12000 |
| Throughput |
44.64 Mpps |
| Latency (1 Gbps) |
2.15 µs |
| Packet buffer memory |
16 MB |
| MAC address table |
16000 entries |
| Switching capacity |
60 Gbit/s |
| Jumbo frames support |
Yes |
| Performance |
|---|
| Packet buffer memory |
16 MB |
| Stackable |
No |
| Noise level |
57 dB |
| Fanless |
Yes |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Stackable |
No |
| Noise level |
57 dB |
| Rack mounting |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
26 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Console port |
RJ-45/USB Type-C |
| Security |
|---|
| IGMP snooping |
Yes |
| DHCP features |
DHCP relay, DHCP server, DHCPv6 server |
| Multicast features |
|---|
| Multicast support |
Yes |
| IPv6 multicast entries |
128 |
| IPv4 multicast entries |
512 |
| Protocols |
|---|
| Management protocols |
Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+ |
| Memory |
|---|
| Packet buffer memory |
16 MB |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Stackable |
No |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Power |
|---|
| Power source |
PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Total Power over Ethernet (PoE) budget |
300 W |
| Power over Ethernet (PoE) |
Yes |
| Weight & dimensions |
|---|
| Width |
17.3" (440 mm) |
| Depth |
10.1" (257 mm) |
| Height |
1.7" (43.2 mm) |
| Weight |
9.48 lbs (4.3 kg) |
| Packaging data |
|---|
| User guide |
Yes |
| Cables included |
AC, LAN (RJ-45), USB Type-C |
| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
AC, LAN (RJ-45), USB Type-C |
