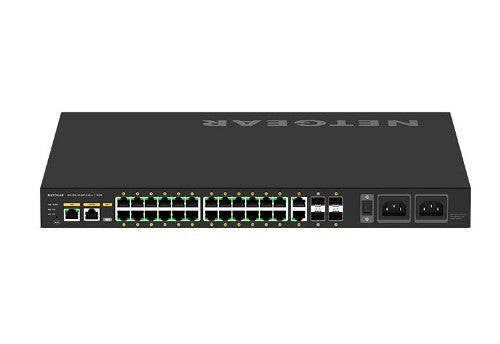

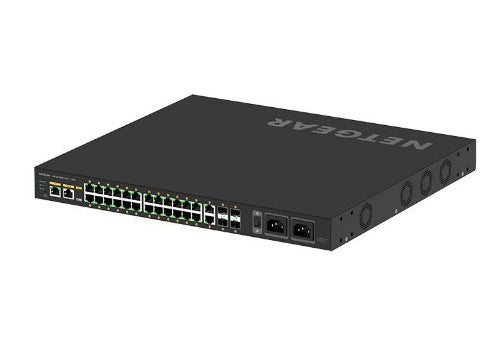

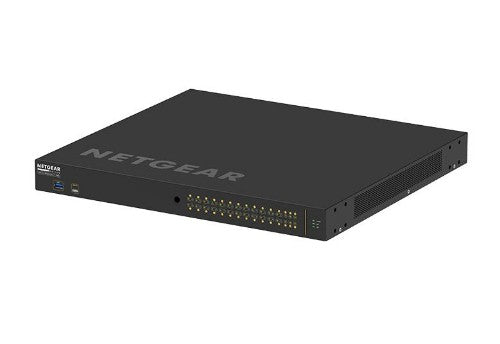

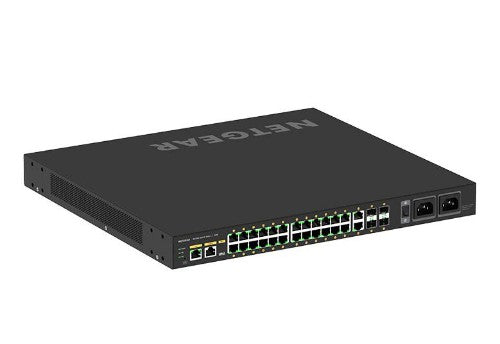

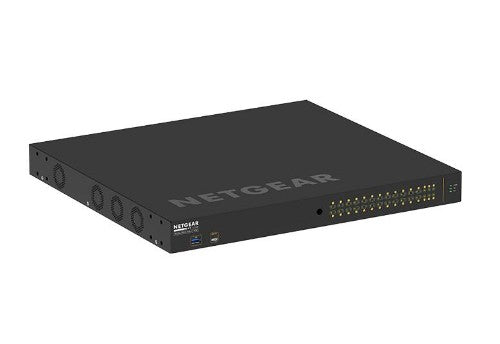

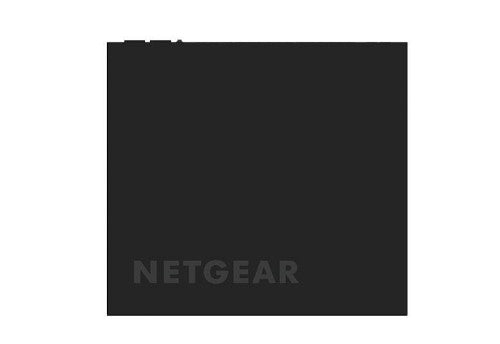

M4250-26G4F-PoE++ (GSM4230UP) 24x1G PoE++ 1,440W 2x1G and 4xSFP Managed Switch
Description
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3/L4 |
| Network |
|---|
| IGMP snooping |
Yes |
| Networking standards |
IEEE 802.1Qav, IEEE 802.1ak, IEEE 802.1as, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt |
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| 10G support |
No |
| Virtual LAN features |
Private VLAN |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| Virtual LAN features |
Private VLAN |
| Data transmission |
|---|
| Number of VLANs |
4000 |
| Jumbo frames |
12000 |
| Throughput |
44.64 Mpps |
| Latency (1 Gbps) |
2.15 µs |
| Packet buffer memory |
16 MB |
| MAC address table |
16000 entries |
| Switching capacity |
60 Gbit/s |
| Jumbo frames support |
Yes |
| Performance |
|---|
| Packet buffer memory |
16 MB |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Rack mounting |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Console port |
RJ-45/USB Type-C |
| Security |
|---|
| Security algorithms |
SNMP |
| IGMP snooping |
Yes |
| DHCP features |
DHCP relay, DHCP server, DHCPv6 server |
| Multicast features |
|---|
| Multicast support |
Yes |
| Memory |
|---|
| Packet buffer memory |
16 MB |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Power |
|---|
| Power source |
PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Total Power over Ethernet (PoE) budget |
1440 W |
| Power over Ethernet (PoE) |
Yes |
| Weight & dimensions |
|---|
| Width |
17.3" (440 mm) |
| Depth |
15.7" (400 mm) |
| Height |
1.7" (43.2 mm) |
| Weight |
14.9 lbs (6.75 kg) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
