Description
Description

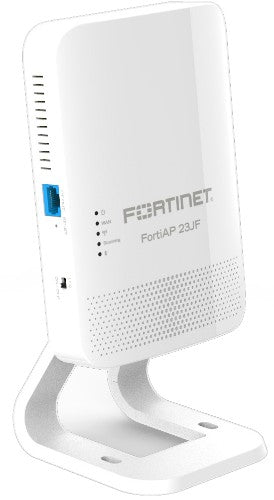

FortiAP 23JFThis enterprise class Wi-Fi 6 wall plate AP provides three radios with internal antennas as well as features such as OFDMA and is PSE-capable. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications. Additional features include PoE out for downstream devices and RJ45 passthrough. This access point can be installed in minutes, right over the existing wall plate.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1200 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Networking standards | IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3bz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11v, IEEE 802.1af, IEEE 802.11ad, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.3at, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q, IEEE 802.3az, IEEE 802.11i, IEEE 802.1x |
| Modulation | 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Certification | CE, Taiwan |
| Maximum data transfer rate | 1200 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Frequency band | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Modulation | 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Network | |
| Networking standards | IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3bz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11v, IEEE 802.1af, IEEE 802.11ad, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.3at, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q, IEEE 802.3az, IEEE 802.11i, IEEE 802.1x |
| Bandwidth | |
| Channel bandwidth | 80 MHz |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2, WPA3 |
| Certificates | |
| Certification | CE, Taiwan |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Networking standards | IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3bz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11v, IEEE 802.1af, IEEE 802.11ad, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.3at, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q, IEEE 802.3az, IEEE 802.11i, IEEE 802.1x |
| Modulation | 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 1200 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ports & interfaces | |
| RS-232 interface | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
| Power consumption (typical) | 17.5 W |
| Design | |
| Placement | Wall |
| Product colour | White |
| Certification | CE, Taiwan |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 3 |
| Antenna gain level (max) | 4 dBi |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 6.61" (168 mm) |
| Depth | 4.61" (117 mm) |
| Weight | 15.9 oz (450 g) |
| Height | 1.1" (28 mm) |
| Package weight | 24.7 oz (700 g) |
| Packaging data | |
| Mounting kit | Yes |
| Package weight | 24.7 oz (700 g) |
| Packaging content | |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
