StarTech.com PEXUSB312A3 interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)

StarTech.com 2-Port USB PCIe Card with 10Gbps/port - USB 3.1/3.2 Gen 2 Type-A PCI Express 3.0 x2 Host Controller Expansion Card - Add-On Adapter Card - Full/Low Profile - Windows & Linux (PEXUSB312A3)

Key Features

• HIGH PERFORMANCE: 2-Port USB PCIe Card with ASMedia ASM3142 host controller (PCIe 3.0 x4) has two SuperSpeed 10Gbps USB-A ports (USB 3.1 Gen 2 / USB 3.2 Gen 2x1); Speeds up to 10Gbps/port; Upgraded version of our popular USB card PEXUSB312A2
• MAXIMIZED USB PERFORMANCE: Add-on card supports Multiple Ins for max bandwidth when using mixed-speed devices; Supports UASP & optimized for SSDs/HDDs, NVMe, thumb drives; Supports USB 3.0/2.0 devices
• POWER: USB PCI Express 3.0 expansion card w/ SATA power header supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 4.5W (5V @ 0.9A) per USB-A port
• COMPATIBILITY: USB PCIe adapter card installs in full or low-profile PCIe 3.0 x4 slot and up; Bracket included; Backward compatible w/ PCIe 2.0; Supports Win/Linux/macOS w/auto drivers on Win 8 & up
• STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; This USB-A PCI-e card for desktop is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support

Description

USB 3.2 Gen 2 (10 Gbps) | PCI-Express 3.0 | PCIe x2 Slot | USB Type-A

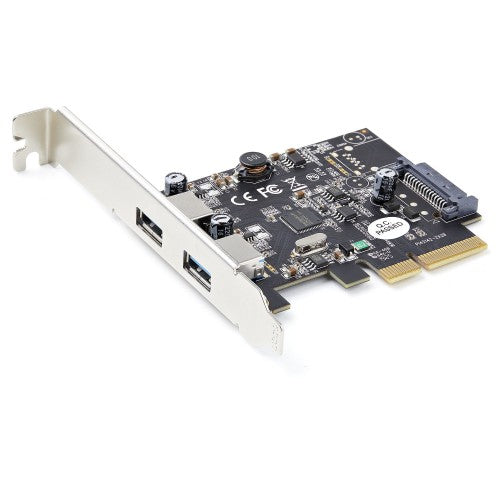

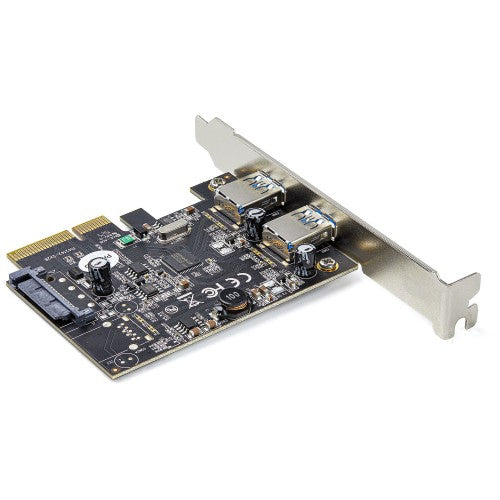

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding two SuperSpeed USB-A (10Gbps) ports.

Add two 10 Gbps USB Type-A Ports to Your Desktop Computer

The controller card enables you to connect two USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.2 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.2 Gen 1 and USB 3.2 (5 Gbps).

SuperSpeed USB 3.2 Gen 2 (10 Gbps) Performance

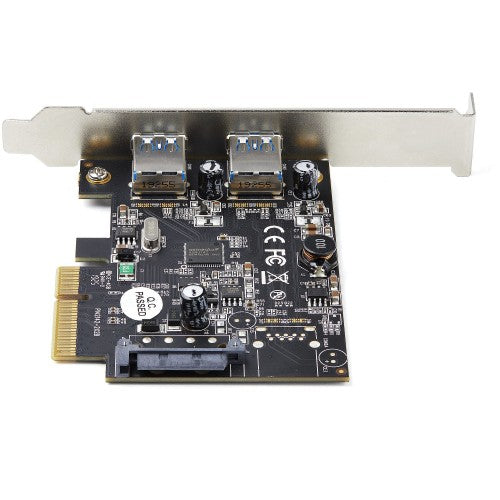

The USB 3.2 Gen 2 card features an ASMedia ASM3142 host controller that utilizes x2 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 10Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

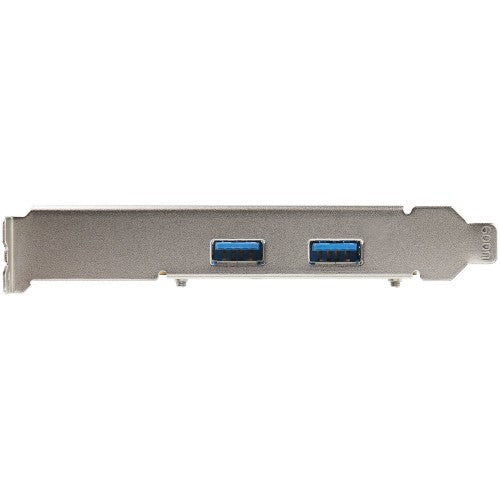

This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward compatible w/PCIe 2.0). For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices

PEXUSB312A3 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Internal SATA ports quantity	1
Host interface	PCIe
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 3.0
SATA power connector type	SATA 15-pin
Technical details
Data transfer rate (max)	10 Gbit/s
Performance
Data transfer rate (max)	10 Gbit/s
Product colour	Black
Harmonized System (HS) code	84733020
Colour
Product colour	Black
Design
Internal	Yes
Product colour	Black
Features
Data transfer rate (max)	10 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	4.72" (120 mm)
Depth	4.33" (110 mm)
Height	0.748" (19 mm)
Weight	2.75 oz (78 g)
Package width	8.46" (215 mm)
Package depth	5.71" (145 mm)
Package height	1.18" (30 mm)
Package weight	5.01 oz (142 g)
Packaging data
Mounting brackets included	Yes
Package width	8.46" (215 mm)
Package depth	5.71" (145 mm)
Package height	1.18" (30 mm)
Package weight	5.01 oz (142 g)
Quick installation guide	Yes
Logistics data
Products per master (outer) case	80 pc(s)
Master (outer) case width	23.2" (590 mm)
Master (outer) case length	12.4" (315 mm)
Master (outer) case height	14.6" (370 mm)
Harmonized System (HS) code	84733020
Packaging content
Mounting brackets included	Yes
Quick installation guide	Yes
