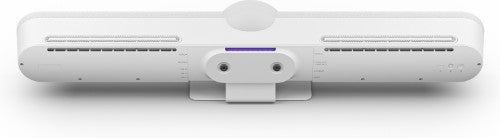

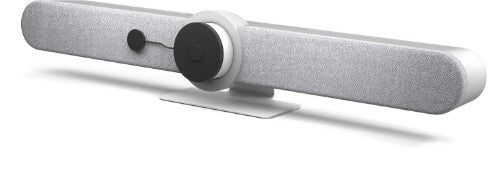

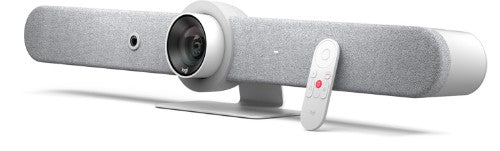

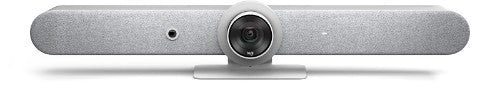

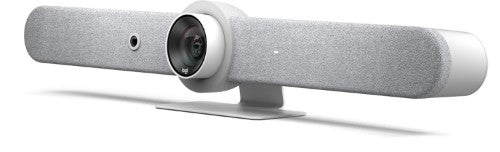

Logitech Rally Bar
Description
Logitech 960-001320 Rally Bar is Logitech's premier, all-in-one video bar for midsize meeting rooms. Brilliant optics, powerful audio, and remarkable - White. All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to install form factor. Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option. Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections. Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts. Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K. Always-on AI Viewfinder provides persistent awareness for Right Sight autoframing and room utilization metrics like people count. High-performance speakers, adaptive beamforming mics, and a patented anti-vibration suspension system combine room-filling sound with exquisite sensitivity. Manage Rally Bar together with other meeting room devices in Logitech Sync to resolve issues and identify under-used and over-crowded rooms. What's in box: Rally Bar, Power supply, AC power cord, HDMI cable, USB cable, Lens caps, Remote control and User documentation. General: Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform, Enclosure: All-in-one enclosure with integrated table stand and patented suspension system to eliminate vibration-induced camera shake and audio interference, Device Management: Logitech Sync, Displays Supported: 2 and Display Resolution: Up to 4k. Camera: Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps, Pan: motorized 25 , Tilt: motorized 15 Zoom: 15X HD zoom (5X optical, 3X digital), Diagonal Field of View: 90 , Horizontal Field of View: 82.1 , Vertical Field of View: 52.2 and Total Room Coverage: 132.1 Horizontal x 82.2 Vertical. Speakers: Drivers: Two 2.7" (70mm), Drivers: Two 2.7" (70mm), Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at meter, Sensitivity: 90+/-3dB SPL at 1W, meter, THD: 1kHz < 2%,Speaker sampling rate: 48 kHz. Microphones: Frequency response: 90Hz - 16kHz, Sensitivity: >-36dBFS +/-1dB @ 1Pa, Microphone data rate output: 48 kHz, Pickup range: 15 ft / 4.5m, Beamforming elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) Noise suppression: AI filter, Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms. Interfaces: HDMI Out: 2, HDMI In: 1, USB 3.0: Type A (3), Type C (1), Network: 10/100/1G Ethernet, WiFi: 802.11a/b/g/n/ac (MIMO), External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension, Cable), Remote Control: Bluetooth Low Energy Power & Cables, Power Supply: Auto-sensing, Operating voltage/power: 100-240V, 19V, 4.74A, Power Supply Dimensions: 127mm x 51mm x 30mm, DC Cable: 1.5m / 4.9 ft, AC Cable: 1m / 3.28 ft, HDMI 1.4 cable: 2m / 6.5 ft,USB A to USB C 3.0 cable: 2.2m / 7.2 ft, Environmental Operating Temperature: 0 to 40 C, Storage Temperature: -40 to 70 C, Humidity: 10 to 95% , BTU/hr: 57 idle, 64 in meeting Security, Full Disk Encryption: AES-128, Data Encryption: Symmetric Keys, PKI, Device Identity: Protected by device attestation, Device Access: Authenticated using API, Key Protection: Arm TrustZone, RPMP.
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
White |
| PTZ control |
Yes |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
White |
| PTZ control |
Yes |
| Video |
|---|
| HD type |
4K Ultra HD |
| Optical zoom |
5x |
| Digital zoom |
3x |
| Audio |
|---|
| Microphone pick-up range |
275.6" (7 m) |
| Output level |
92/99 dB |
| Line-out impedance |
4 Ω |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| RMS rated power |
8 W |
| Echo cancellation |
Yes |
| Built-in speaker(s) |
Yes |
| Number of speakers |
2 |
| Audio beamforming |
Yes |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| HDMI ports quantity |
3 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI output ports quantity |
2 |
| HDMI input ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms |
128-bit AES |
| Camera |
|---|
| Remote control interface |
Bluetooth |
| Optical zoom |
5x |
| Digital zoom |
3x |
| Vertical field of view |
52.2° |
| Diagonal field of view |
90° |
| Camera type |
Single camera |
| Zoom capability |
Yes |
| Privacy type |
Privacy cover |
| Privacy camera |
Yes |
| Microphone |
|---|
| Microphone sensitivity |
-36 dB |
| Microphone frequency |
90 - 16000 Hz |
| Microphone direction type |
Omnidirectional |
| Number of microphones |
6 |
| Features |
|---|
| Telepresence |
No |
| Computer system |
|---|
| Operating system installed |
CollabOS |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
MacOS |
| Computer case |
|---|
| Operating system installed |
CollabOS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
64 BTU/h |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| Current |
4.74 A |
| Power source type |
AC |
| Number of batteries supported |
1 |
| DC output voltage |
19 V |
| Weight & dimensions |
|---|
| Width |
35.8" (910 mm) |
| Depth |
5.14" (130.5 mm) |
| Height |
6.46" (164 mm) |
| Weight |
15.6 lbs (7.08 kg) |
| Package width |
8.15" (207 mm) |
| Package depth |
38.9" (989 mm) |
| Package height |
8.58" (218 mm) |
| Package weight |
20.5 lbs (9.28 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Batteries included |
Yes |
| Packaging content |
Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length |
98.4" (2.5 m) |
| HDMI cable length |
78.7" (2 m) |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
