10.1" Touch screen, 1280 x 800, 4K, PTZ, 90° FOV, 90 dB, THD 2%, 48 kHz, 90 Hz - 16 kHz, -36 dB, 910 x 130.5 x 164 mm, 7.08 kg, Graphite
Description

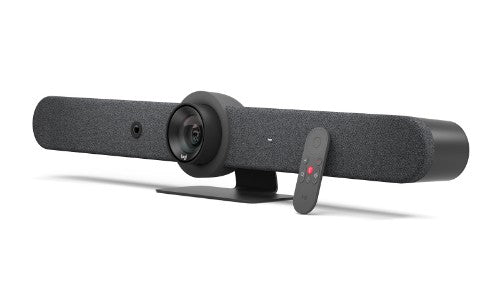

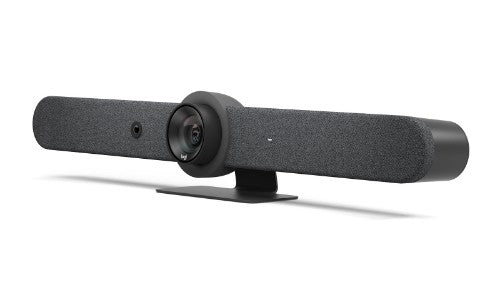

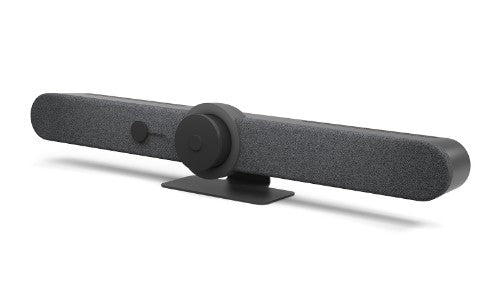

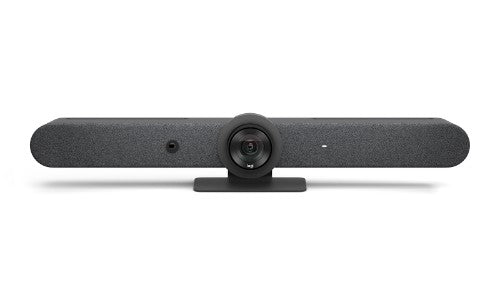

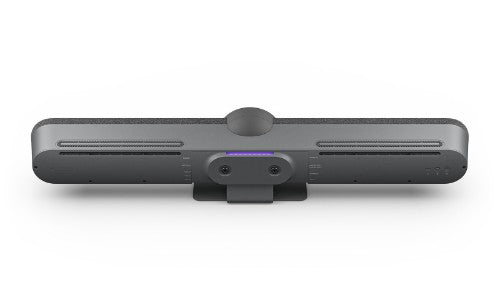

Logitech Room with Rally Bar-Appliance Mode. For medium to Large Rooms (939-001950 + 960-001308)-Graphite
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
Black, Graphite |
| PTZ control |
Yes |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
Black, Graphite |
| PTZ control |
Yes |
| Harmonized System (HS) code |
85176990 |
| Video |
|---|
| HD type |
4K Ultra HD |
| Optical zoom |
5x |
| Digital zoom |
3x |
| Supported video modes |
720p, 900p, 1440p, 2160p |
| Maximum frame rate |
30 fps |
| Audio |
|---|
| Microphone pick-up range |
177.2" (4.5 m) |
| Output level |
90/99 dB |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Microphone in |
Yes |
| Interface module |
|---|
| Interface module HDMI ports quantity |
3 |
| Interface module Ethernet LAN (RJ-45) ports |
1 |
| Interface module HDMI input ports quantity |
1 |
| Interface module HDMI output ports quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms |
128-bit AES |
| Camera |
|---|
| Field of view (FOV) angle |
90° |
| Horizontal field of view |
82.1° |
| Remote control interface |
Bluetooth |
| Optical zoom |
5x |
| Digital zoom |
3x |
| Display |
|---|
| Built-in display |
Yes |
| Display diagonal |
10.1" |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Microphone |
|---|
| Microphone sensitivity |
-36 dB |
| Microphone frequency |
90 - 16000 Hz |
| Number of microphones |
6 |
| Sound pressure level (max) |
90 dB |
| Features |
|---|
| Telepresence |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Heat dissipation |
64 BTU/h |
| Power |
|---|
| DC input voltage |
19 V |
| AC input voltage |
100 - 240 V |
| Current |
4.754 A |
| Weight & dimensions |
|---|
| Camera dimensions (WxDxH) |
35.8 x 6.3 x 6.46" (910 x 160 x 164 mm) |
| Interface module dimensions (W x D x H) |
9.61 x 7.05 x 2.28" (244 x 179 x 58 mm) |
| Interface module weight |
2.76 lbs (1.25 kg) |
| Camera weight |
15.6 lbs (7.08 kg) |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length |
98.4" (2.5 m) |
| HDMI cable length |
78.7" (2 m) |
