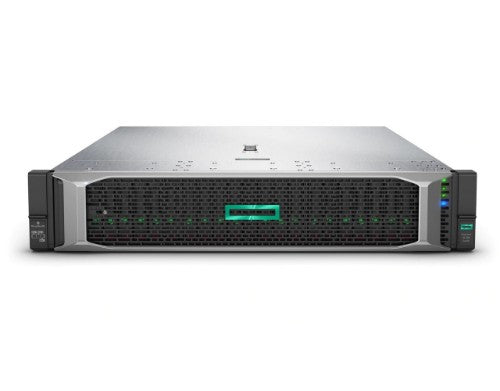

Intel Xeon Scalable 4214 (2.2GHz/12-core/85W), 16GB RDIMM, 12x LFF SAS/SATA, 3x PCIe 3.0, 4x Gigabit Ethernet, 800W, 2U
Description
What is your server bottleneck...storage, compute, expansion?
The HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel® Xeon® Processor Scalable Family with up to a 60% performance gain and 27% increase in cores, plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.
What's new- Supporting the second generation Intel® Xeon® Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
- HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage using Intel® Optane™ DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.
- Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Flexible Design Making Your Investment Expand As Your Business Needs GrowThe HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.
HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.
In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.
Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 40GbE) and fabric so you can adapt and grow to changing business needs.
Supporting a wide range of operating environments from Azure to Docker to ClearOS in addition to traditional operating systems.
Security InnovationsOnly Hewlett Packard Enterprise offers industry standard servers with major firmware anchored directly into the silicon. Starting with silicon root of trust, security protection is built in across the server life-cycle.
New features include Server Configuration Lock that ensures secure transit and locks server hardware configuration, iLO Security Dashboard helps detect and address possible security vulnerabilities and Workload Performance Advisor provides server tuning recommendations for better server performance.
With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and securely store artifacts used to authenticate the server platforms while the Intrusion Detection kit logs and alerts when the server hood is removed.
World-Class PerformanceHPE enhances performance by taking server tuning to the next level. Workload Performance Advisor adds real-time tuning recommendations driven by server resource usage analytics.
The HPE ProLiant DL380 Gen10 server supports industry standard technology leveraging the latest Intel® Xeon® Processor Scalable Family with up to 28 cores, 12 Gb SAS and 3.0 TB of HPE DDR4 SmartMemory or up to 6.0 TB of HPE Persistent Memory, depending on processor model.
The HPE ProLiant DL380 Gen10 server supports up to three double-wide or five single-wide GPUs for workload acceleration.
Industry Leading Services and Ease of DeploymentThe HPE ProLiant DL380 Gen10 server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Pointnext Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; HPE iLO Amplifier Pack, Smart Update Manager (SUM), and Service Pack for ProLiant (SPP).
Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Specifications
| Processor |
|---|
| Processor generation |
2nd Generation Intel® Xeon® Scalable |
| Thermal Design Power (TDP) |
85 W |
| Tcase |
77 °C |
| Supported instruction sets |
AVX-512 |
| Scalability |
2S |
| Processor threads |
24 |
| Processor package size |
76.0 x 56.5 mm |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor codename |
Cascade Lake |
| Memory types supported by processor |
DDR4-SDRAM |
| Memory clock speeds supported by processor |
2400 MHz |
| Maximum number of PCI Express lanes |
48 |
| Maximum internal memory supported by processor |
1.02 TB |
| Execute Disable Bit |
Yes |
| Embedded options available |
Yes |
| Processor cache type |
Smart Cache |
| Processor cache |
16.5 MB |
| Processor frequency |
2.2 GHz |
| Number of processors installed |
1 |
| Processor model |
4214 |
| Processor boost frequency |
3.2 GHz |
| Processor socket |
LGA 3647 (Socket P) |
| Processor cores |
12 |
| Processor manufacturer |
Intel |
| Processor family |
Intel Xeon Silver |
| Memory |
|---|
| Internal memory |
16 GB |
| Memory slots |
24x DIMM |
| Memory clock speed |
2933 MHz |
| Maximum internal memory |
768 GB |
| Internal memory type |
DDR4-SDRAM |
| Buffered memory type |
Registered (buffered) |
| Storage |
|---|
| Supported HDD sizes |
3.5" |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Optical drive type |
No |
| Number of HDDs supported |
12 |
| HDD interface |
Serial ATA, Serial Attached SCSI (SAS) |
| Graphics |
|---|
| On-board graphics card model |
Not available |
| Network |
|---|
| LAN controller |
HP 331i |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Cabling technology |
10/100/1000Base-T(X) |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
4 |
| DisplayPorts quantity |
1 |
| Expansion slots |
|---|
| PCI Express slots version |
3.0 |
| Optical drive |
|---|
| Optical drive type |
No |
| Design |
|---|
| Redundant fans support |
Yes |
| Rack mounting |
Yes |
| Optical drive type |
No |
| Chassis type |
Rack (2U) |
| Performance |
|---|
| Compatible operating systems |
Windows Server 2019 |
| Operating system installed |
No |
| Harmonized System (HS) code |
84714100 |
| Software |
|---|
| Compatible operating systems |
Windows Server 2019 |
| Operating system installed |
No |
| Processor special features |
|---|
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel TSX-NI |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Processor ARK ID |
193385 |
| Power |
|---|
| Number of main power supplies |
1 |
| Redundant power supply (RPS) support |
Yes |
| Power supply |
800 W |
| Technical details |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Supported HDD sizes |
3.5" |
| Redundant fans support |
Yes |
| Rack mounting |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Chassis type |
Rack (2U) |
| Sustainability certificates |
ENERGY STAR |
| Logistics data |
|---|
| Harmonized System (HS) code |
84714100 |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
17.5" (445.5 mm) |
| Weight |
32.6 lbs (14.8 kg) |
| Height |
3.44" (87.4 mm) |
| Depth |
28.8" (730.3 mm) |
