16x1GbE, 64GB, SFP+, SFP+, 2 USB 3.0, 1U, Black
Description

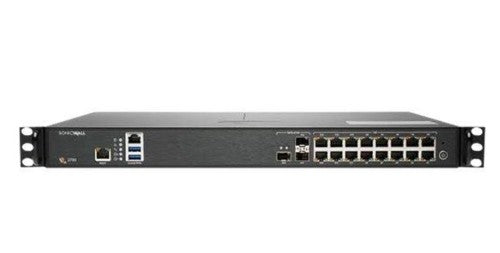

The SonicWall Network Security Appliance (NSa) 2700 nextgeneration firewall (NGFW) offers
medium- to large-sized enterprises industry-leading performance at the lowest total cost of ownership in
its class.
With comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering and IP reputation services, it protects the perimeter from advanced threats without
becoming a bottleneck.
The NSa 2700 has been built from the ground up with the latest hardware components, all designed to deliver multi-gigabit threat prevention throughput — even for encrypted traffic. Featuring a high port density (including 16 x 1GbE ports and three x 10 GbE ports), the solution supports network and hardware redundancy with high availability, clustering and dual power supplies.
The NSa 2700 supports advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 clustering and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the
appliance provides a single-paneof-glass interface to manage both switches and access points.
Specifications
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Rack mounting |
Yes |
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
3 |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Console port |
RJ-45 |
| Network |
|---|
| Networking standards |
IEEE 802.3 |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| IP routing |
Yes |
| 10G support |
Yes |
| Data transmission |
|---|
| Jumbo frames support |
Yes |
| Certificates |
|---|
| Certification |
FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL,
TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI |
| Memory |
|---|
| Flash memory |
64 MB |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Certification |
FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL,
TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI |
| Rack mounting |
Yes |
| Performance |
|---|
| Flash memory |
64 MB |
| Power |
|---|
| Power consumption (max) |
21.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
16.9" (430 mm) |
| Depth |
12.8" (325 mm) |
| Height |
1.77" (45 mm) |
| Weight |
8.82 lbs (4 kg) |
