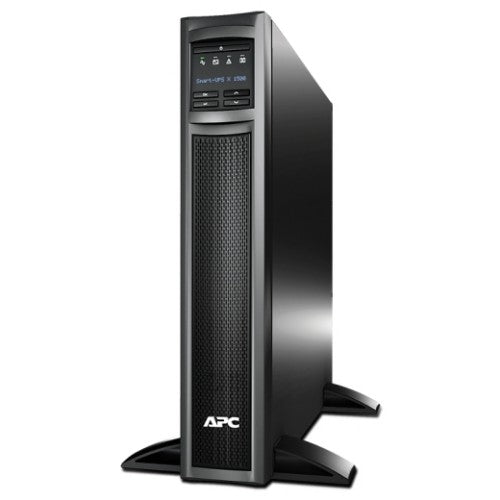

APC SMX1500RM2UC uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 1200 W 8 AC outlet(s)

1.44 kVA, 1.2 kW, 120V, 50/60Hz, 645J, 40dB, 432x490x89mm, 24.82kg, Black

Description

Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Specifications

Power
Output frequency	50/60 Hz
Output power	1200 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Surge energy rating	645 J
Maximum current	12 A
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	5%
Output power capacity	1.44 kVA
Input frequency	50/60 Hz

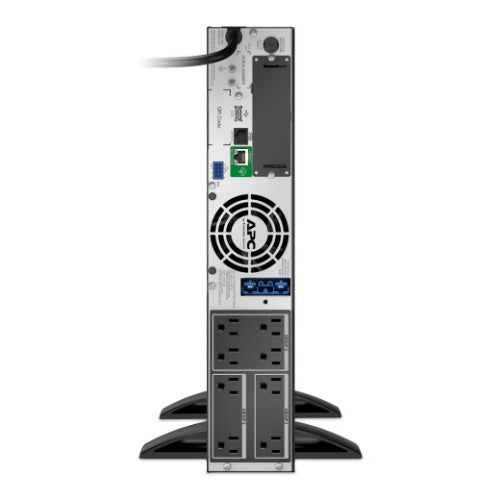

Ports & interfaces
Cable length	96.1" (2.44 m)
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
SmartSlot	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
USB port type	USB Type-B
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Power protection features	Short circuit
Noise level	40 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Auto-restart	Yes
Automatic Voltage Regulation (AVR)	Yes
Output power	1200 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Surge energy rating	645 J
Maximum current	12 A
Emergency Power Off (EPO)	Yes
Power protection features	Short circuit
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	40 dB
Audible alarm(s)	Yes
Output power capacity	1.44 kVA
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Number of batteries supported	1
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Certification	cUL Listed, TAA compliance, UL 1778
Cable length	96.1" (2.44 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Weight & dimensions
Package width	23.2" (589 mm)
Package depth	24.4" (620 mm)
Package height	9.69" (246 mm)
Weight	54.7 lbs (24.8 kg)
Width	17" (432 mm)
Package weight	66.1 lbs (30 kg)
Height	3.5" (89 mm)
Depth	19.3" (490 mm)
Packaging data
Package width	23.2" (589 mm)
Package depth	24.4" (620 mm)
Package height	9.69" (246 mm)
Package weight	66.1 lbs (30 kg)
Logistics data
Harmonized System (HS) code	85078000
Certificates
Certification	cUL Listed, TAA compliance, UL 1778
