4-Port, 4096 x 2160 @60Hz, HDMI, USB, DC 5V
Key Features
- Control 4 computers using a single keyboard, mouse, and 4K HDMI monitor
- Superior video quality - Cinema 4K (4096 x 2160 @60Hz)
- HDCP 2.2 compliant; HDR Support
- 2-Port USB 3.1 Gen1 Hub with SuperSpeed 5Gbps transfer rate
- Computer selection via front panel pushbuttons, hotkeys, mouse1 , or RS-232 command2
Description
4-Port 4K KVMP Switch with HDMI Interface
Connect four (4) HDMI-enabled powerhouse computers to a 4K HDMI-enabled monitor, a USB keyboard and mouse, and switch between them using IOGEAR's 4-Port 4K HD KVMP Switch. With an enhanced user-friendly operation and extended features, the 4-Port 4K KVM Switch provides the latest in HDMI technology's innovations. With EDID support, the KVM reads and remembers the monitor's parameters, eliminating change in video resolution when switching between connected computers.
Enhanced Audio Connectivity
Additional smart connectivity features turn your workstation into a convenient and easy-to-use powerhouse. With an extended Audio Mixing feature, add up to two (2) audio sources from a simple hotkey operation, allowing you to monitor each computer's activities without switching between sources. Watch video from the computer on port #1 while waiting for the notification that your system on port #2 is finished updating firmware.
Cinema 4K Clarity for Many Industries
The GCS1934H delivers clear image resolutions up to Cinema 4K (4096 x 2160) at a frame rate of 60Hz. The switch supports high-resolution graphics for the healthcare industry, engineering and design, mid-sized businesses, and the federal segment. The IOGEAR 4K HD KVMP Switch also enhances electronics applications in diagnostic, coding, software development, application design, and forensic analysis.
Connectivity
Additionally, the Power On Detection feature ensures that this KVMP automatically connects to the next powered-on computer. The built-in USB 3.1 Gen1 ports allow SuperSpeed 5 Gbps data transfer rates and are backward compatible with USB 2.0 and USB 1.1 legacy devices.
Convenient Switching Methods
Switch and access four () HDMI-enabled computers from a push-button on the front panel or hotkey combination on your keyboard. IOGEAR's 4-Port HD KVM Switch also offers the latest mouse port-switching functionality. Easily switch between connected computers by clicking the wheel button on your 3-button USB mouse. For those who need controlled access, this 4K HD KVM switch supports RS-232 commands.
Cost-Saving Solution
Avoid the plugging and unplugging wear and tear on your USB peripherals and audio devices. Share your peripherals with the push of a button and forget about purchasing additional keyboards, mice, monitors, hard drives, flash drives, printers, and more. Additionally, straightforward firmware updates eliminate the need to buy upgraded KVMP switches.
Specifications
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Hot-Plug support |
Yes |
| Scan interval |
5,99 s |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Performance |
|---|
| HDCP |
Yes |
| Firmware upgradeable |
Yes |
| Auto scan delay (min) |
5 s |
| Auto scan delay (max) |
99 s |
| Data transfer rate (max) |
5 Gbit/s |
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Hot-Plug support |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Scan interval |
5,99 s |
| Video |
|---|
| HD type |
4K Ultra HD |
| Video bandwidth |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |

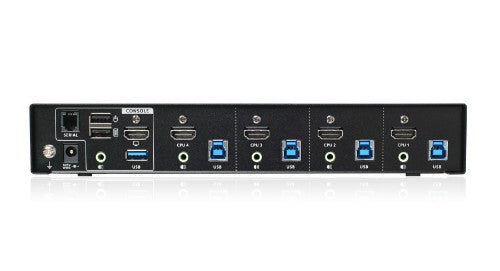

| Ports & interfaces |
|---|
| Console ports |
3.5mm headphone, HDMI, USB A |
| HDCP |
Yes |
| Serial ports quantity |
1 |
| Serial port type |
RS-232 |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Audio connections |
Yes |
| HDMI ports quantity |
5 |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
2 |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Housing material |
Metal, Plastic |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| Output voltage |
5 V |
| Power source |
DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
10.2" (260.3 mm) |
| Depth |
2.94" (74.7 mm) |
| Height |
1.69" (42.9 mm) |
| Weight |
30.3 oz (860 g) |
| Package width |
12.8" (325 mm) |
| Package depth |
4" (101.6 mm) |
| Package height |
8.27" (210 mm) |
| Package weight |
5.2 lbs (2.36 kg) |
| Packaging data |
|---|
| Package width |
12.8" (325 mm) |
| Package depth |
4" (101.6 mm) |
| Package height |
8.27" (210 mm) |
| Package weight |
5.2 lbs (2.36 kg) |

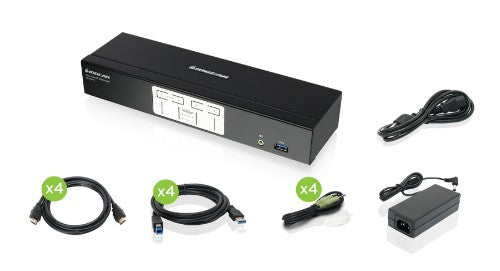

| Packaging content |
|---|
| Cables included |
Audio (3.5mm), USB |
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Other features |
|---|
| Push button |
Yes |
| Hot keys |
Yes |
