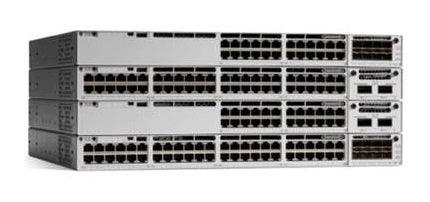

Catalyst 9300L - Network Essentials - switch - L3 - Managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Description
The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| ARP inspection |
Yes |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| MIB support |
Yes |
| Switch layer |
L2/L3 |
| Configuring Location Settings (CLI) |
Yes |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4094 |
| Data transmission |
|---|
| Number of VLANs |
4094 |
| Jumbo frames |
9198 |
| MAC address table |
32000 entries |
| Jumbo frames support |
Yes |
| Technical details |
|---|
| Product colour |
Gray |
| Rack mounting |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ap, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Number of VLANs |
4094 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| IPv6 routes |
16000 |
| Security |
|---|
| Access Control List (ACL) rules |
5120 |
| Security algorithms |
IPSEC, SNMPv2, SNMPv3 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Memory |
|---|
| Internal memory |
8000 MB |
| Flash memory |
16000 MB |
| Design |
|---|
| Product colour |
Gray |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Internal memory |
8000 MB |
| Flash memory |
16000 MB |
| Indication |
|---|
| LED indicators |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
