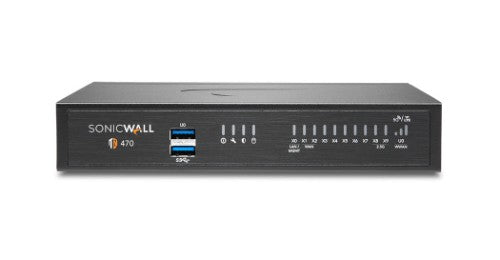

TZ470 High Availability Firewall Appliances
Description
In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.
The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.
With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMI™). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.
Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management — or the next threat.
Specifications
| Data transmission |
|---|
| Firewall throughput |
3500 Mbit/s |
| IPS/IDS throughput |
2000 Mbit/s |
| Maximum firewall connections per second |
12000 |
| Maximum firewall connections |
1000000 |
| IPSec VPN throughput |
1500 Gbit/s |
| Maximum connections (DPI) |
250000 |
| Maximum connections (SPI) |
1000000 |
| VoIP |
Yes |
| Load balancing |
Yes |
| Firewall throughput |
3.5 Gbit/s |
| Network |
|---|
| VPN tunnels quantity |
150 |
| Local user database |
250 |
| Quality of Service (QoS) support |
Yes |
| DHCP server |
Yes |
| Static route |
Yes |
| Security |
|---|
| Firewall security |
Yes |
| DDoS protection |
Yes |
| Deep Packet Inspection (DPI) |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| Protocols |
|---|
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS |
| Management features |
|---|
| LED indicators |
Yes |
| Management platform |
SonicOS 7.0 |
| URL filtering |
Yes |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Installed SFP+ modules quantity |
2 |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
8 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Number of console ports |
1 |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| Input current |
3 A |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
1.38" (35 mm) |
| Depth |
5.31" (135 mm) |
| Height |
7.48" (190 mm) |
| Other features |
|---|
| Firewall throughput |
3500 Mbit/s |
