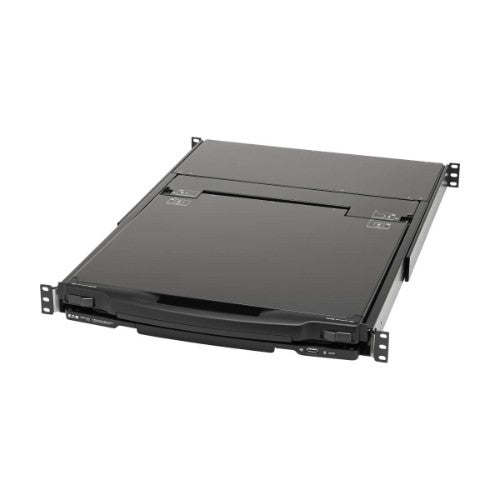

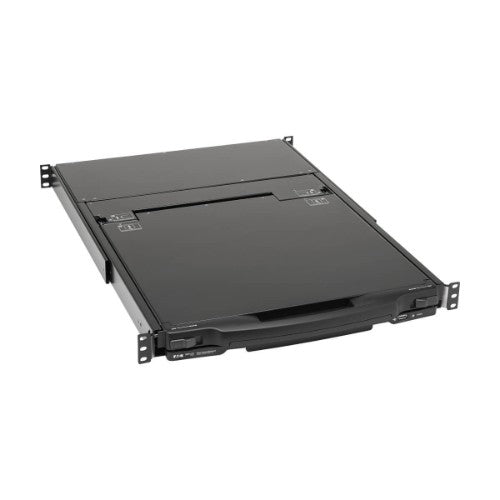

8-Port NetDirector DisplayPort KVM Switch Console with 17 in. LCD, Dual Rail, 1U Rack-Mount, TAA
Key Features
- 17 in. LCD with wide display supports HD video resolutions up to 1920 x 1080 @ 60 Hz
- Dual-rail design allows LCD to stay open while keyboard/touchpad slides into the rack
- Multiple levels of password protection prevent unauthorized access to servers
- Mounts into 1U of rack space with included brackets and user-supplied hardware
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Description
Connects 8 DisplayPort Computers or Servers to a Single Monitor, Keyboard and MouseThis NetDirector® DisplayPort KVM switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and eight DisplayPort inputs into a compact housing that occupies only 1U of rack space. Access, control, boot and reboot up to eight DisplayPort computers or servers at the same time. No adapters are needed for connecting DisplayPort-enabled equipment.
Saves Valuable Space and Keeps Your Operating Costs LowAll connected DisplayPort computers or servers share a single monitor, keyboard and mouse, which saves space in your rack or workspace. DDC emulation allows each computer’s settings to adjust automatically for optimal screen output. Eliminating the cost of buying monitors, adapters, keyboards and mice for all eight connected devices keeps your TCO (total cost of ownership) low.

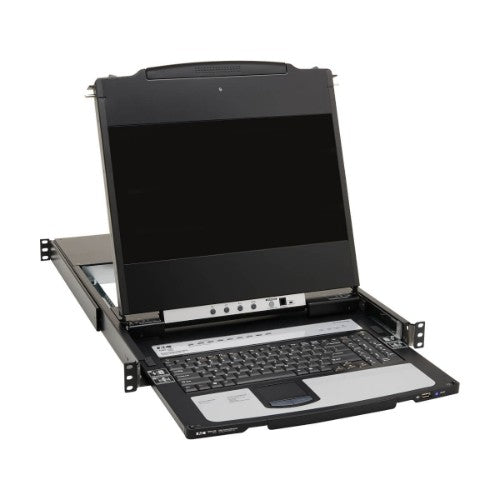

17 in. LCD Supports Crystal-Clear 1080p VideoThe dual-rail B030-DP08-17D supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz. The wide display flips up to provide access to connected computers, making multitasking easier and more convenient, and folds down to prevent the console from blocking adjacent rack equipment when not in use. The LCD and the keyboard/touchpad are on separate rails, so the LCD can remain open while the keyboard/touchpad is stored out of the way, keeping the rack aisle clear.
Switching Between Computers Is Fast and EasyUse the on-console push buttons, keyboard hotkey commands or multi-lingual local console On-Screen Display (OSD) to quickly toggle between connected computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected. Computers or servers can be quickly added or removed without having to power down the KVM switch. Also features a USB 1.1 hub port on the front of the console for the connection of a USB peripheral device such as a flash drive or external mouse.
Multi-Level Password Security Keeps Your Private Data PrivateSecurity is enhanced by limiting access to one administrator and no more than four local users. Two-level logout procedure allows you to log out manually or log out automatically after a user-defined period of time has passed.
Long-Lasting Reliability and CompatibilityThis DisplayPort KVM switch mounts easily into 1U of space in an EIA-standard 19-inch rack with the included brackets (optional B019-000 – sold separately – allows mounting in a 2-post rack). The B030-DP08-17D is compatible with all major operating systems, including Windows and macOS, for simple integration into your existing structure. Mac/Sun keyboard emulation also is supported. The RJ11 port allows you to upgrade the KVM switch’s firmware using the included cable.
TAA-Compliant for GSA Schedule PurchasesThe B030-DP08-17D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
| Ports & interfaces |
|---|
| Console ports |
DisplayPort, USB A |
| DisplayPorts quantity |
9 |
| DisplayPort version |
1.1 |
| Number of computers controlled |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| USB hub |
Yes |
| USB 2.0 Type-B ports quantity |
8 |
| USB 2.0 Type-A hub ports quantity |
1 |
| HDCP |
Yes |
| Performance |
|---|
| HDCP |
Yes |
| HD type |
Full HD |
| Maximum resolution |
1920 x 1080 pixels |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Push button |
Yes |
| On Screen Display (OSD) |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| USB hub |
Yes |
| Design |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Rack capacity |
1U |
| Housing material |
Metal |
| Country of origin |
Taiwan |
| Display |
|---|
| Built-in display |
Yes |
| Display |
LCD |
| On Screen Display (OSD) |
Yes |
| Display diagonal |
17" |
| Power |
|---|
| Input current |
1 A |
| Power source |
AC |
| AC input frequency |
50 - 60 Hz |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
Full HD |
| Maximum resolution |
1920 x 1080 pixels |
| Features |
|---|
| Country of origin |
Taiwan |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Weight |
32.2 lbs (14.6 kg) |
| Package width |
27" (685.8 mm) |
| Package depth |
32.7" (831.8 mm) |
| Package height |
5.8" (147.3 mm) |
| Package weight |
44.1 lbs (20 kg) |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
27" (685.8 mm) |
| Package depth |
32.7" (831.8 mm) |
| Package height |
5.8" (147.3 mm) |
| Package weight |
44.1 lbs (20 kg) |
| Packaging content |
|---|
| Cables included |

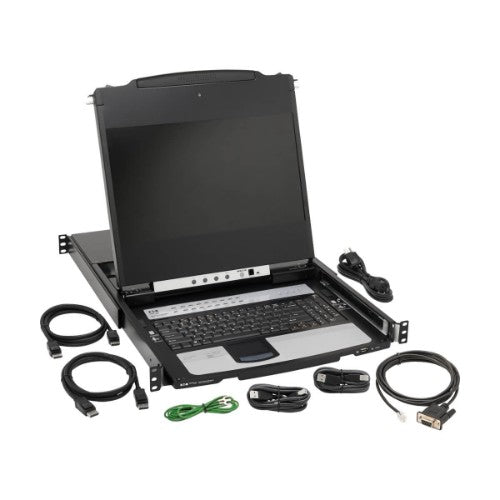

AC, DisplayPort, Phone (RJ-11), USB |
| Quick installation guide |
Yes |
| Package type |
Box |
| Other features |
|---|
| Push button |
Yes |
| Hot keys |
Yes |
| Logistics data |
|---|
| Country of origin |
Taiwan |
| Master (outer) case width |
27" (685.8 mm) |
| Master (outer) case length |
32.7" (831.8 mm) |
| Master (outer) case height |
5.8" (147.3 mm) |
| Master (outer) case gross weight |
43.2 lbs (19.6 kg) |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
8471.80.1000 |
